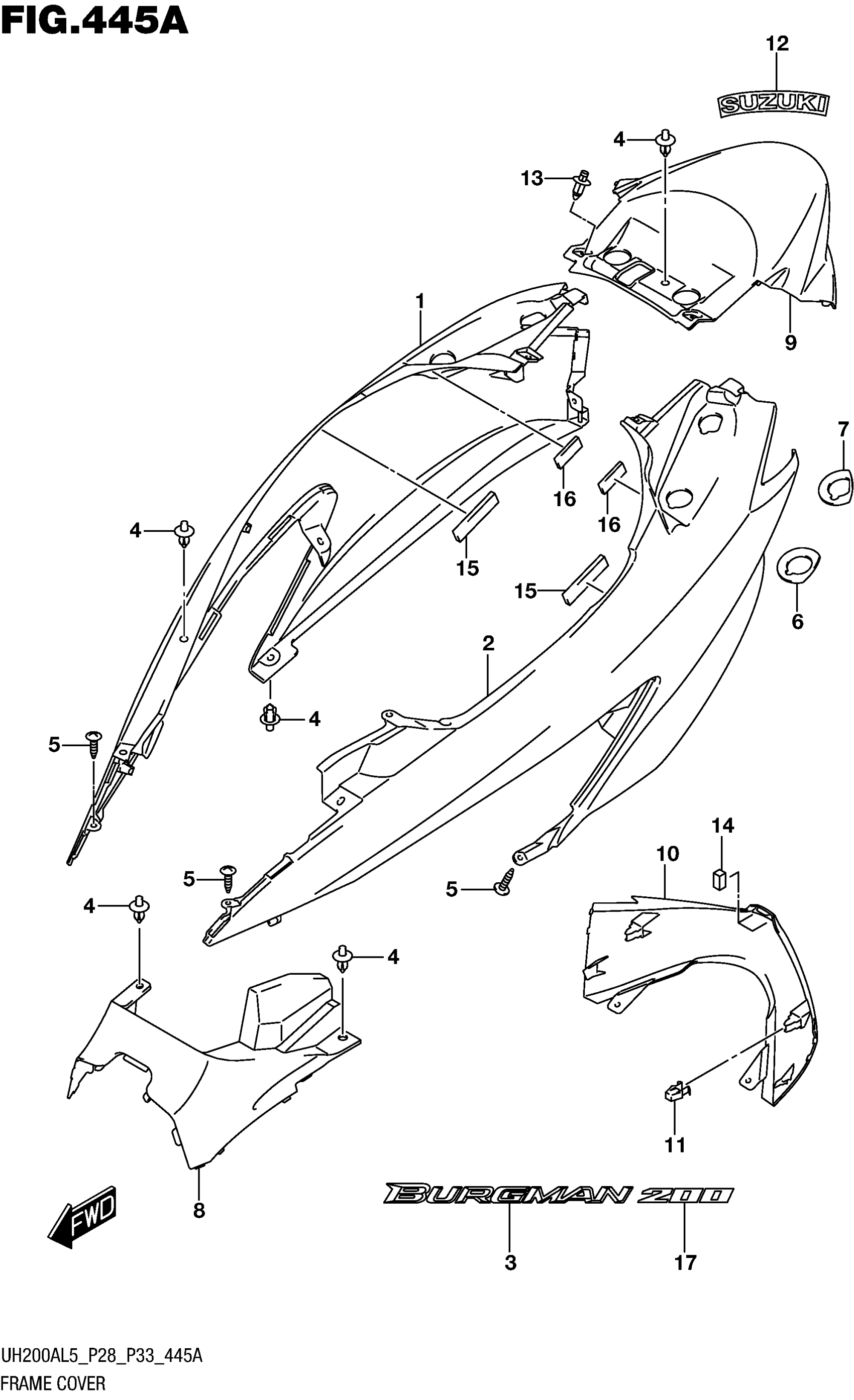

Suzuki UH200AL5 (2015) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY)

47111-12JB0-PGZ

Unavailable

1

COVER, FRAME RH (BLACK)

47111-12JB0-YNR

Unavailable

1

COVER, FRAME RH (WHITE)

47111-12JB0-YUH

Unavailable

1

COVER, FRAME RH (SILVER)

47111-12JB0-YUS

Unavailable

2

COVER, FRAME LH (GRAY)

47211-12JB0-PGZ

Unavailable

2

COVER, FRAME LH (BLACK)

47211-12JB0-YNR

Unavailable

2

COVER, FRAME LH (WHITE)

47211-12JB0-YUH

Unavailable

2

COVER, FRAME LH (SILVER)

47211-12JB0-YUS

Unavailable

3

EMBLEM,FRAME COVER

68131-12JA0

$39.00

4

CLIP (BLACK)

09409-08308-5ES

$1.97

5

SCREW

03541-0516A

$1.49

6

CUSHION,FRAME COVER FR

47161-12JB0

$2.77

7

CUSHION,FRAME COVER RR

47162-12JB0

$2.77

8

COVER,FRAME FR (BLACK)

47351-12JA0-291

$47.78

9

COVER, CENTER (GRAY)

47311-12JB0-PGZ

Unavailable

9

COVER, CENTER (BLACK)

47311-12JB0-YNR

Unavailable

9

COVER, CENTER (WHITE)

47311-12JB0-YUH

Unavailable

9

COVER, CENTER (SILVER)

47311-12JB0-YUS

Unavailable

10

COVER, REAR LOWER (GRAY)

47411-12JB0-PGZ

Unavailable

10

COVER, REAR LOWER (BLACK)

47411-12JB0-YNR

Unavailable

10

COVER, REAR LOWER (WHITE)

47411-12JB0-YUH

Unavailable

10

COVER, REAR LOWER (SILVER)

47411-12JB0-YUS

Unavailable

11

CLIP

09409-08326

$2.48

12

EMBLEM "SUZUKI" (SILVER/GRAY) | FOR PGZ

68131-03HB0-AJK

Unavailable

12

EMBLEM,"SUZUKI" (SILVER/BLACK | FOR YNR

68131-03HB0-A13

Unavailable

12

EMBLEM,"SUZUKI" (GRAY/WHITE) | FOR YUH

68131-03HB0-ALZ

$10.43

12

EMBLEM "SUZUKI" (GRAY/SILVER) | FOR YUS

68131-03HB0-A18

Unavailable

13

CLIP

09409-06329

$2.79

14

CUSHION, FR BOX NO.4

92152-12JA0

$4.67

15

CUSHION, FRAME COVER UPPER NO.1

47163-12JA0

$3.44

16

CUSHION, FRAME COVER UPPER NO.2

47164-12JA0

$3.37

17

EMBLEM "200" (SILVER/GRAY) | FOR PGZ

68131-03H30-AJK

$7.45

17

EMBLEM,"200" (SILVER/BLACK) | FOR YNR

68131-03H30-A13

Unavailable

17

EMBLEM,"200" (GRAY/WHITE) | FOR YUH

68131-03H30-ALZ

$9.00

17

EMBLEM "200" (GRAY/SILVER) | FOR YUS

68131-03H30-A18

Unavailable
