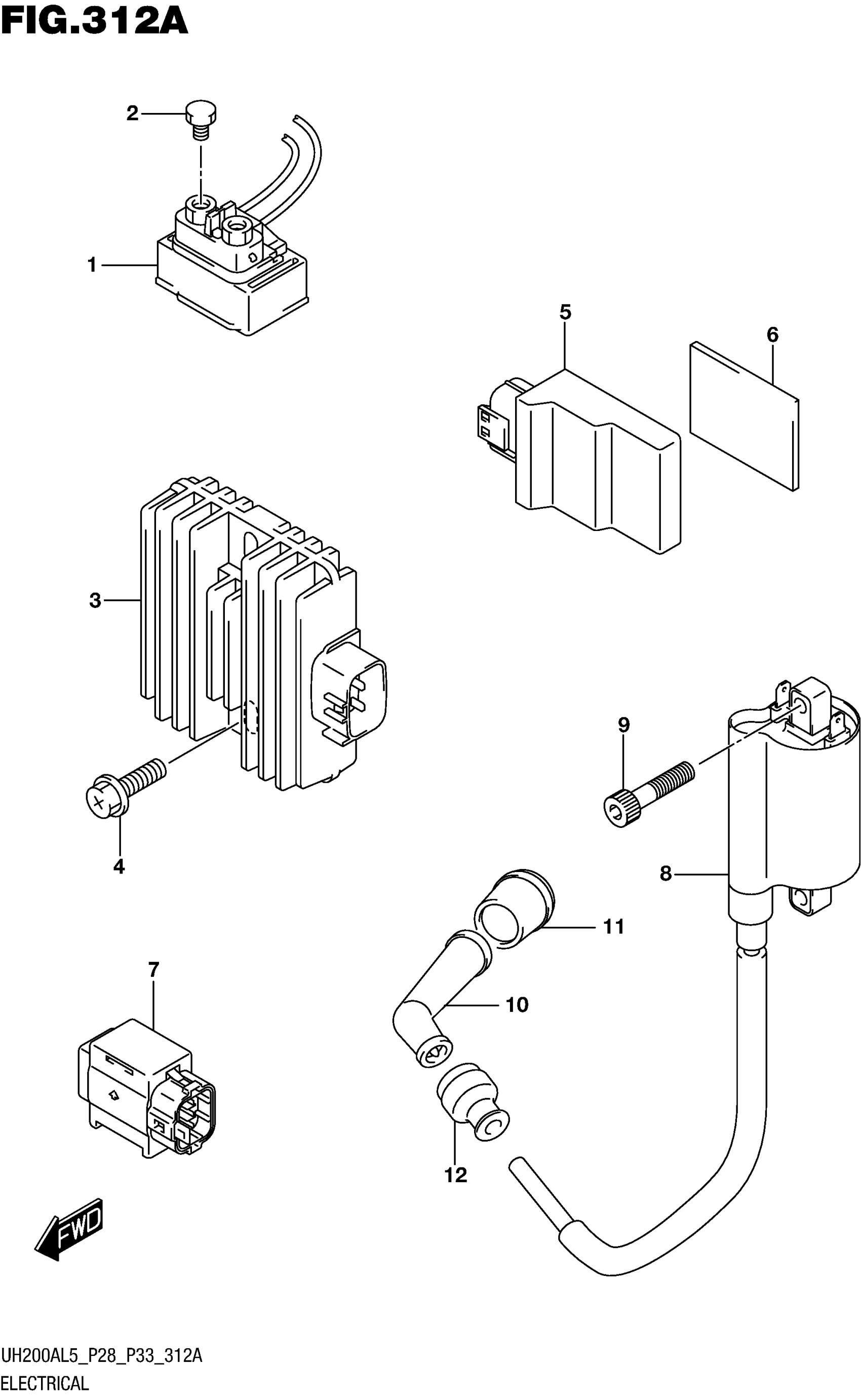

Suzuki UH200AL5 (2015) ELECTRICAL (UH200AL5 P28) Diagram

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$74.65

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-42F00

$237.18

SCREW

02162-0625A

$1.78

CONTROL UNIT, FI

32920-12J11

Unavailable

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

$4.48

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

COIL ASSY,IGNITION

33410-12J00

$124.45

BOLT

07130-0520A

$2.22

CAP ASSY,SPARK PLUG

33510-16H10

$32.83

SEAL, SPARK PLUG

33541-44D00

$5.30

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34
