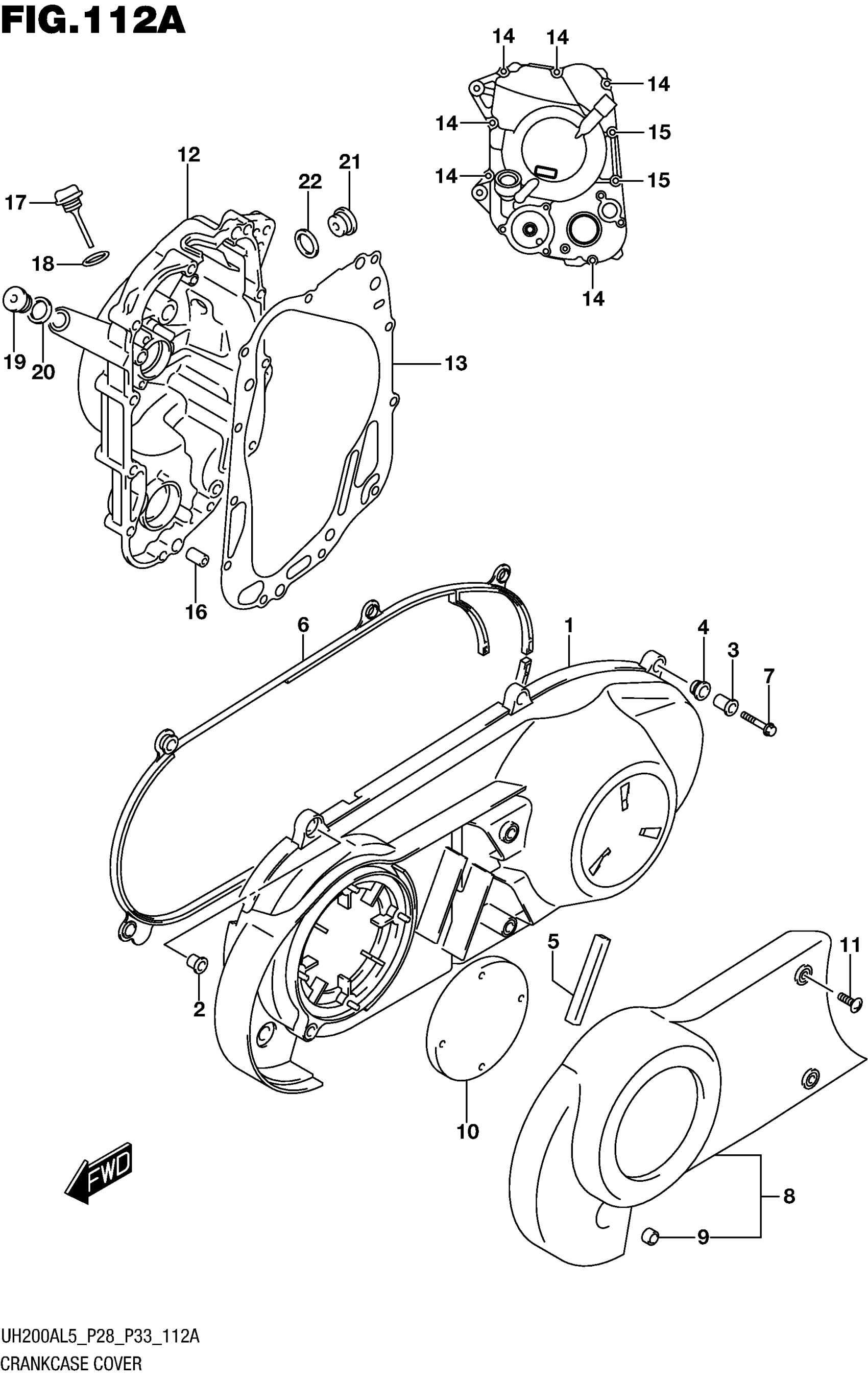

Suzuki UH200AL5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11340-03H00.

11340-12J00

$143.43

2

SPACER,CLUTCH COVER

11342-03H00

$4.75

3

SPACER,CLUTCH COVER NO.1

11342-43E20

$4.22

4

CUSHION,CLUTCH COVER

11344-43E20

$3.06

5

MOLD,CLUTCH COVER

11345-03H00

$5.95

6

GASKET, CLUTCH COVER

11482-03H00

$29.45

7

BOLT

01547-0625A

$2.01

8

DUCT, BELT COOLING

11380-03H00

Unavailable

9

SPACER (6.5X10X7)

09180-06283

$1.91

10

FILTER,BELT COOLING

11388-03H01-X07

$7.63

11

SCREW

02142-0616B

$1.78

12

COVER,MAGNETO

11351-03H10

$202.22

13

GASKET, MAGNETO COVER

11483-03H00-X07

$17.82

14

BOLT

01547-0635A

$2.30

15

BOLT

01547-0645A

$2.42

16

PIN

04211-09149

$1.65

17

GAUGE,OIL LEVEL

11971-14F00

$9.92

18

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

19

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

20

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

21

PLUG (16X8)

09248-16012

$4.64

22

GASKET (16X22X2)

09168-16002

$1.91
