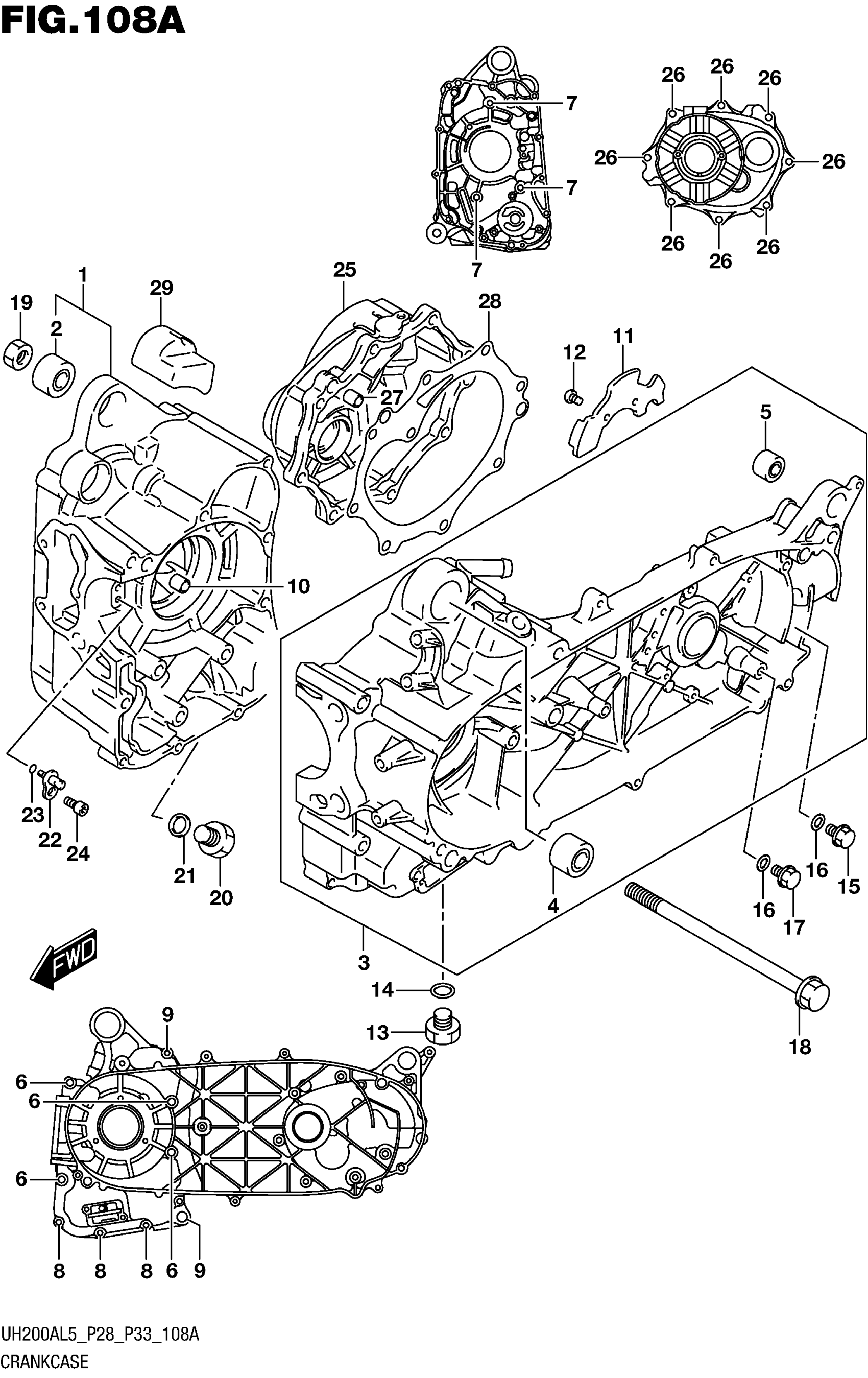

Suzuki UH200AL5 (2015) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET RH

11310-03830

$250.97

2

BUSH (12X34.1X29.5)

09319-12060

$15.63

3

CRANKCASE SET LH

11320-03831

Unavailable

4

BUSH (12X34.1X29.5)

09319-12060

$15.63

5

BUSH (10.2X22.3X20)

09319-10032

$9.27

6

BOLT

01550-0885A

$4.17

7

BOLT

01550-0865A

$3.51

8

BOLT

01547-0635A

$2.30

9

BOLT

01547-0655A

$2.42

10

PIN

04211-11169

$1.78

11

PLATE,GEAR BOX

11323-03H00-X07

Unavailable

12

BOLT

01547-0612A

$2.03

13

PLUG (14X12)

09247-14026

$3.76

14

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

15

BOLT (8X12)

01550-0812A

$2.32

16

GASKET (8.2X14X1)

09168-08016

$1.65

17

BOLT (8X12)

01550-0812A

$2.32

18

BOLT (12X215)

09103-12058

$16.80

19

NUT

08310-0012A

$2.36

20

PLUG (12X10)

09247-12006

$2.82

21

GASKET (12X16.5X2.2)

09168-12021

$1.85

22

JET,PISTON COOLING

11390-03H00

$26.10

23

O RING (D:1.2,ID:4)

09280-04004

$1.91

24

BOLT (6X12)

09106-06075

$2.48

25

COVER, GEAR BOX

11431-12J00

Unavailable

26

BOLT

01550-0830A

$3.04

27

PIN

04211-11169

$1.78

28

GASKET, GEAR BOX COVER

11484-12J00

$16.20

29

SEPARATOR,OIL BREATHER

11186-49F00

Unavailable
