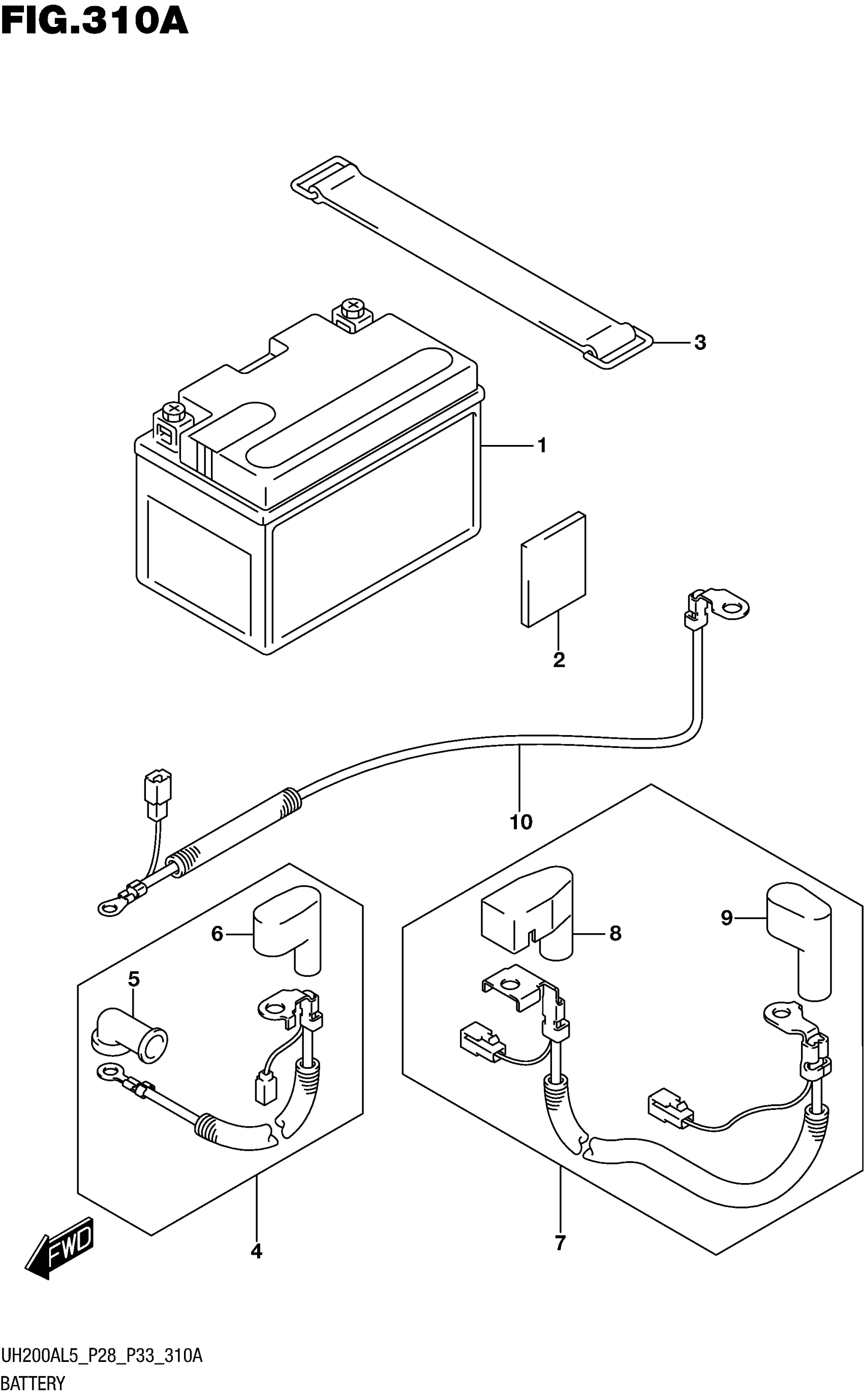

Suzuki UH200AL5 (2015) BATTERY (UH200AL5 P28) Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) | FTX9-BS This part replaces 33610-33E21.

33610-33E20

Unavailable

2

PROTECTOR (30X50X3.0) | CUT AS REQUIRED

33652-36000

$2.30

3

BAND

09462-00015

$11.10

4

WIRE, STARTER MOTOR

33810-12J10

Unavailable

5

CAP, STARTER MOTOR LEAD

31861-48B10

$6.55

6

CAP, STARTER RELAY

31861-29F00

$7.63

7

WIRE, BATTERY PLUS LEAD

33820-12J10

$21.93

8

.CAP, BATTERY PLUS LEAD (+)

33624-27G00

$9.90

9

CAP, STARTER RELAY

31861-29F10

$7.35

10

WIRE,BATTERY MINUS

33860-12J00

Unavailable
