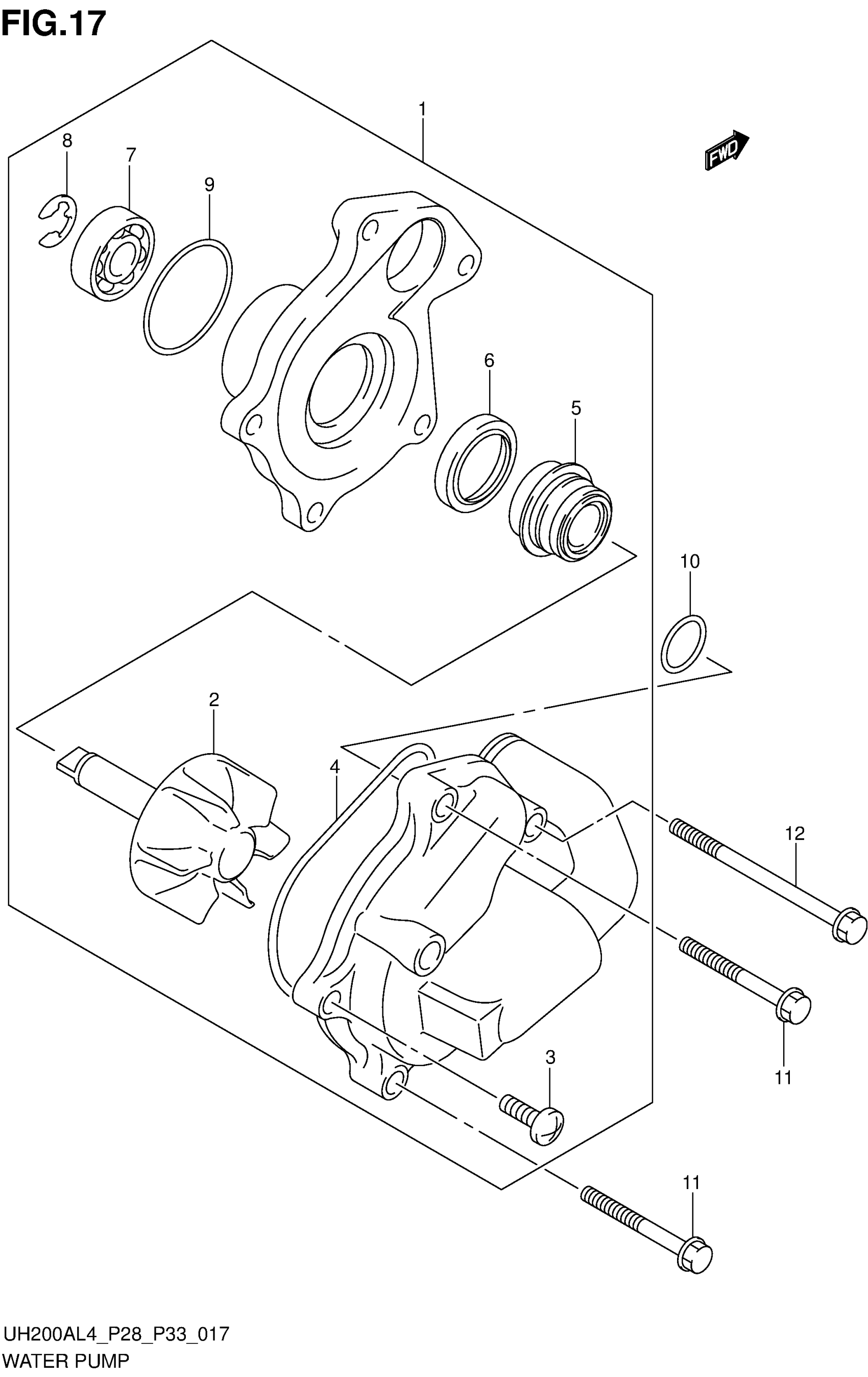

Suzuki UH200AL4 (2014) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER This part replaces 17400-21F30.

17400-21F31

$174.50

2

IMPELLER

17491-21F00

Unavailable

3

SCREW

02112-0616A

$1.49

4

.O RING This part replaces 17418-14F00.

17418-14F01

$5.37

5

.SEAL,MECHANICAL This part replaces 17470-02F00.

17470-02F11

$29.22

6

OIL SEAL

17461-01H00

$17.86

7

BEARING (10X26X8)

09262-10014

$16.01

8

.E-RING

08332-1108A

$1.78

9

.O-RING

17435-33400

$15.29

10

O RING (D:2.4,ID:21.8)

09280-22L01

$1.73

11

BOLT

01547-0635A

$2.30

12

BOLT

01547-0655A

$2.42
