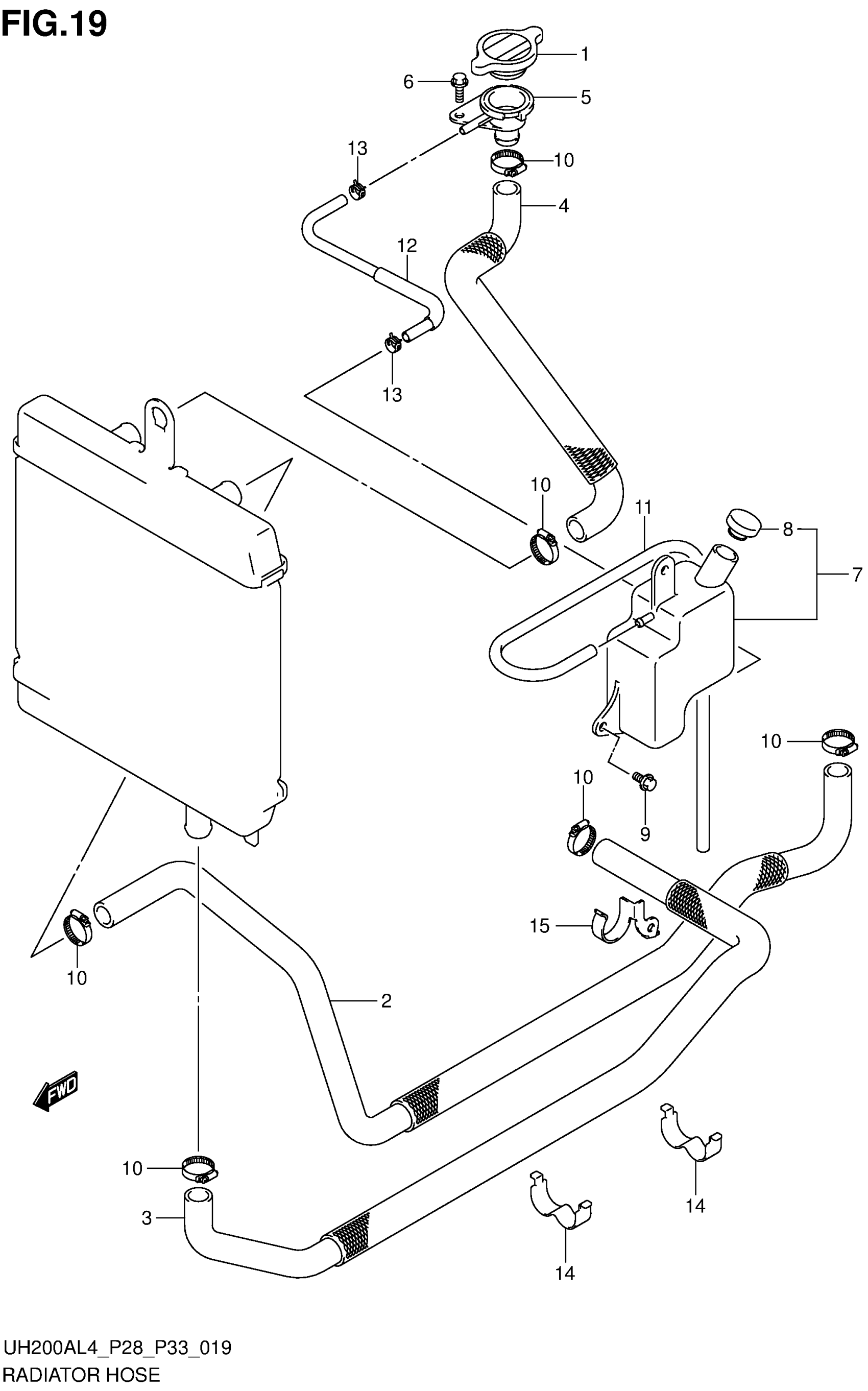

Suzuki UH200AL4 (2014) RADIATOR HOSE Diagram

#

Description
Price

1

CAP, RADIATOR

17730-14G00

$42.83

2

HOSE,RADIATOR INLET

17851-03H20

Unavailable

3

HOSE,RADIATOR OUTLET

17852-03H20

Unavailable

4

HOSE,CONDUCTION

17855-03H20

Unavailable

5

CONDUCTION,RADIATOR

17791-12J00

$31.65

6

BOLT

01550-0616A

$1.97

7

TANK ASSY,RESERVOIR

17910-12J00

Unavailable

8

CAP, RESERVOIR TANK

17932-12C00

$4.48

9

BOLT

09103-06285

$1.97

10

CLAMP

09402-28513

$6.88

11

HOSE, RESERVOIR TANK OVERFLOW

17982-03H20

Unavailable

12

HOSE, RESERVOIR TANK INLET

17981-03H10

Unavailable

13

CLIP

09401-08411

$1.78

14

PLATE, WATER HOSE CLAMP

17859-03H00

Unavailable

15

CLAMP

17858-12J00

Unavailable
