Description

Price

1

PUMP ASSY,OIL

16400-49F00

$135.95

2

BOLT

01547-0625A

$2.01

3

COVER, OIL PUMP

16422-03H00

Unavailable

4

SPROCKET, OIL PUMP DRIVEN (NT:25)

16331-49F00

$26.73

5

SHIM (10X18X0.5)

09181-10158

$1.97

6

CIRCLIP

08331-31109

$1.78

7

PIN (4X15.8)

09261-04009

$1.56

8

CHAIN ASSY, OIL PUMP DRIVE (82RH2005-56M)

16310-14F00

$38.70

9

STRAINER,ENGINE OIL This part replaces 16520-09402.

16520-09403

$8.53

10

GASKET, OIL STRAINER CAP

16524-46G00

$6.40

11

CAP, OIL STRAINER

16523-20E00

Unavailable

12

BOLT

01547-0625A

$2.01

13

CAP, OIL FILTER

16512-47E00

$39.00

14

O RING (D:2.4,ID:52.6)

09280-54001

$3.76

15

SPRING

09440-18002

$1.49

16

FILTER ASSY,ENG OIL

16510-45H10

$8.90

17

O RING (D:1.9,ID:12.6)

09280-12009

$3.18

18

BOLT

01547-0616A

$2.03

19

BOLT

01547-0665A

$2.32

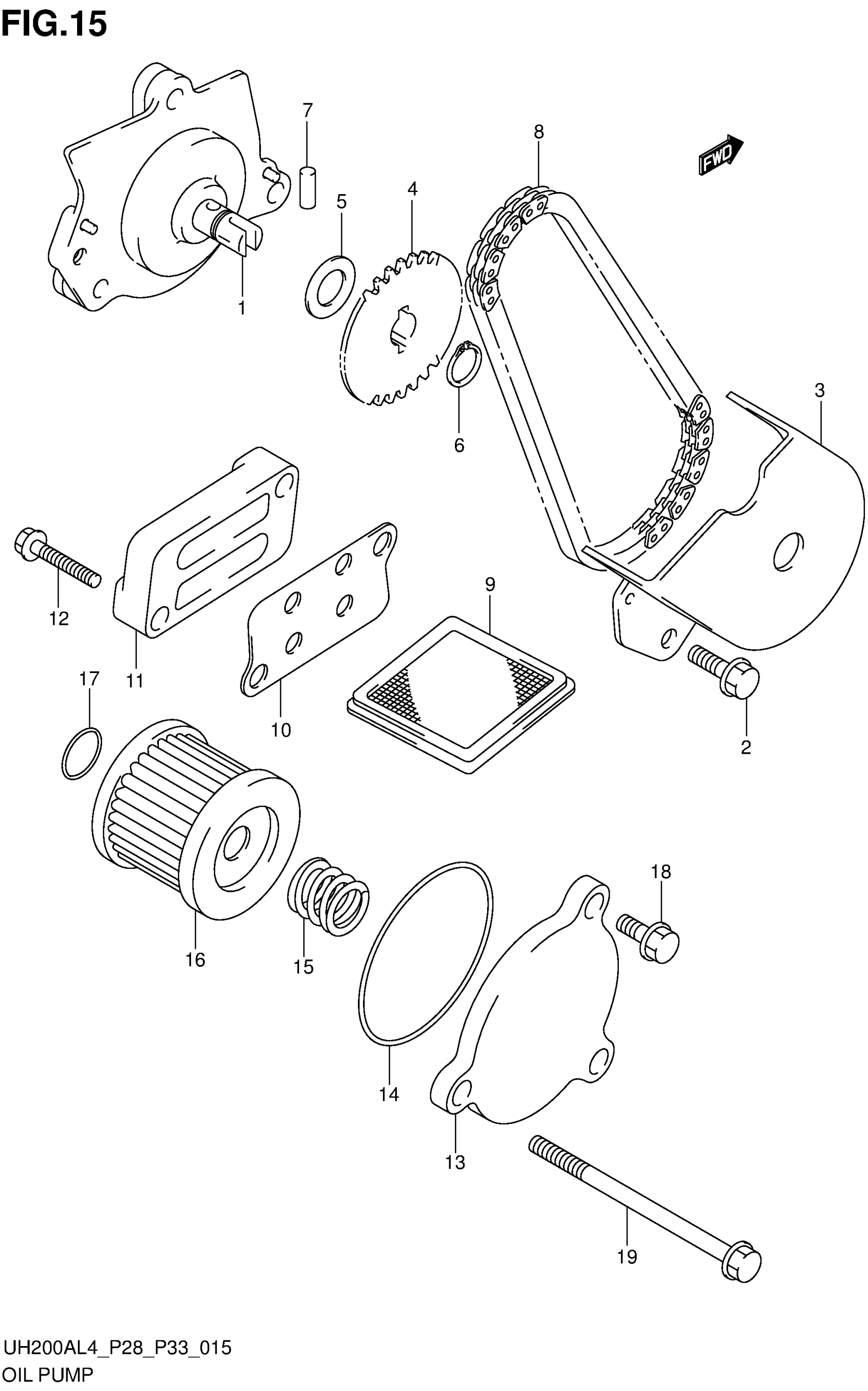

Suzuki UH200AL4 (2014) OIL PUMP Diagram

PUMP ASSY,OIL

BOLT

COVER, OIL PUMP

SPROCKET, OIL PUMP DRIVEN (NT:25)

SHIM (10X18X0.5)

CIRCLIP

PIN (4X15.8)

CHAIN ASSY, OIL PUMP DRIVE (82RH2005-56M)

STRAINER,ENGINE OIL This part replaces 16520-09402.

GASKET, OIL STRAINER CAP

CAP, OIL STRAINER

BOLT

CAP, OIL FILTER

O RING (D:2.4,ID:52.6)

SPRING

FILTER ASSY,ENG OIL

O RING (D:1.9,ID:12.6)

BOLT

BOLT
