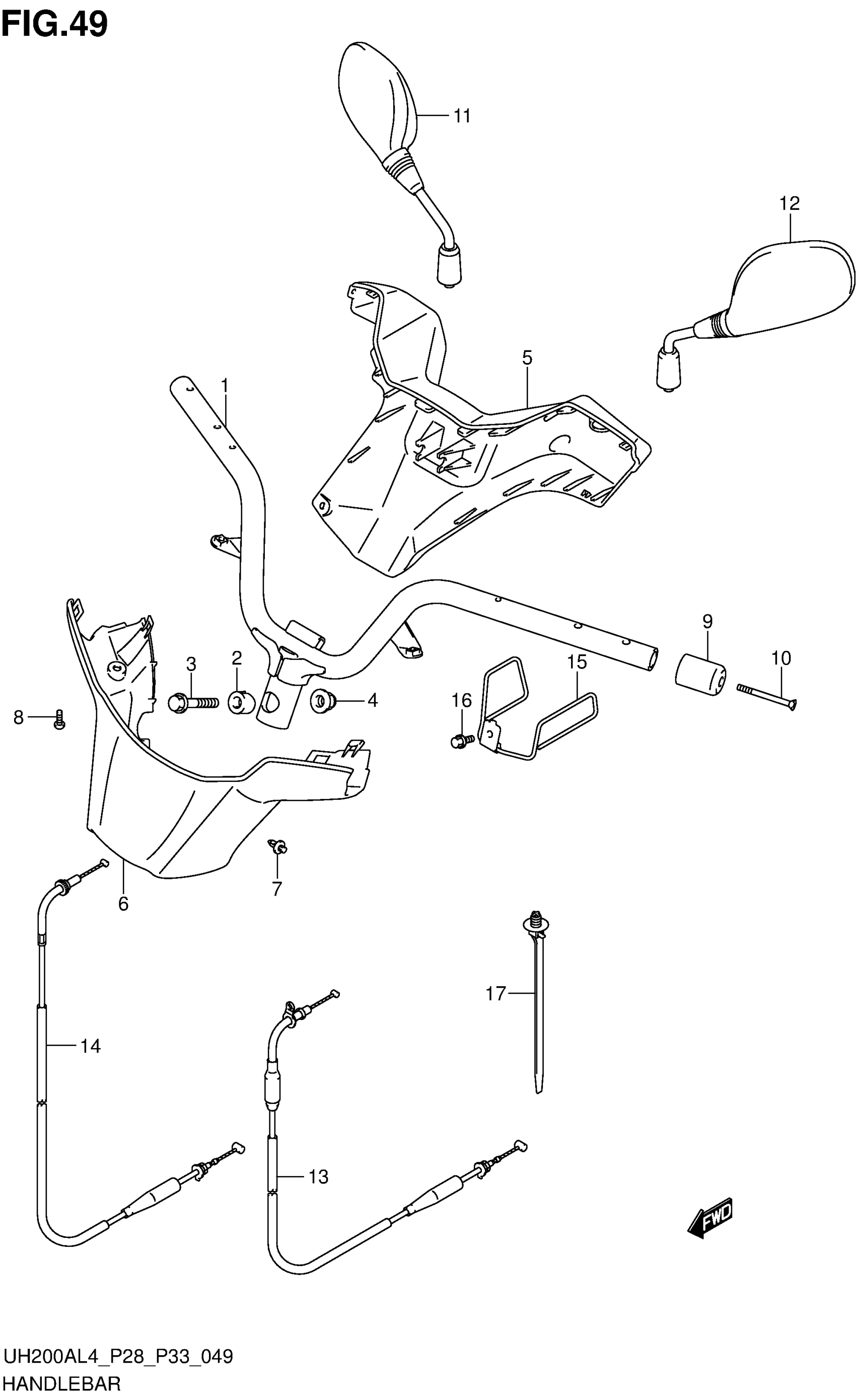

Suzuki UH200AL4 (2014) HANDLEBAR (UH200AL4 P28) Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-12J00.

56110-12J02

$109.13

2

STOPPER, HANDLEBAR

51358-09G10

Unavailable

3

BOLT (10X48)

09103-10126

$4.50

4

NUT

08319-3110A

$2.73

5

COVER, HANDLE UPPER (BLACK) This part replaces 56311-12JA0-291.

56311-12JA1-291

Unavailable

6

COVER, HANDLE LOWER (BLACK)

56321-12JA0-291

Unavailable

7

CLIP (BLACK)

09409-06314-5PK

$2.78

8

SCREW

02142-0512B

$2.05

9

BALANCER This part replaces 56278-12J00.

56278-12J01

$15.23

10

SCREW

02122-0660B

$3.04

11

MIRROR ASSY,REA This part replaces 56500-12J00.

56500-12J03

$27.23

12

MIRROR ASSY,REA This part replaces 56600-12J00.

56600-12J04

$38.58

13

CABLE ASSY, THROTTLE NO.1

58300-12J00

Unavailable

14

CABLE ASSY, THROTTLE NO.2

58300-12J10

Unavailable

15

GUIDE, CABLE

58620-03H00

Unavailable

16

BOLT

01550-0612B

$2.39

17

CLAMP (L:154)

09407-17403

$4.91
