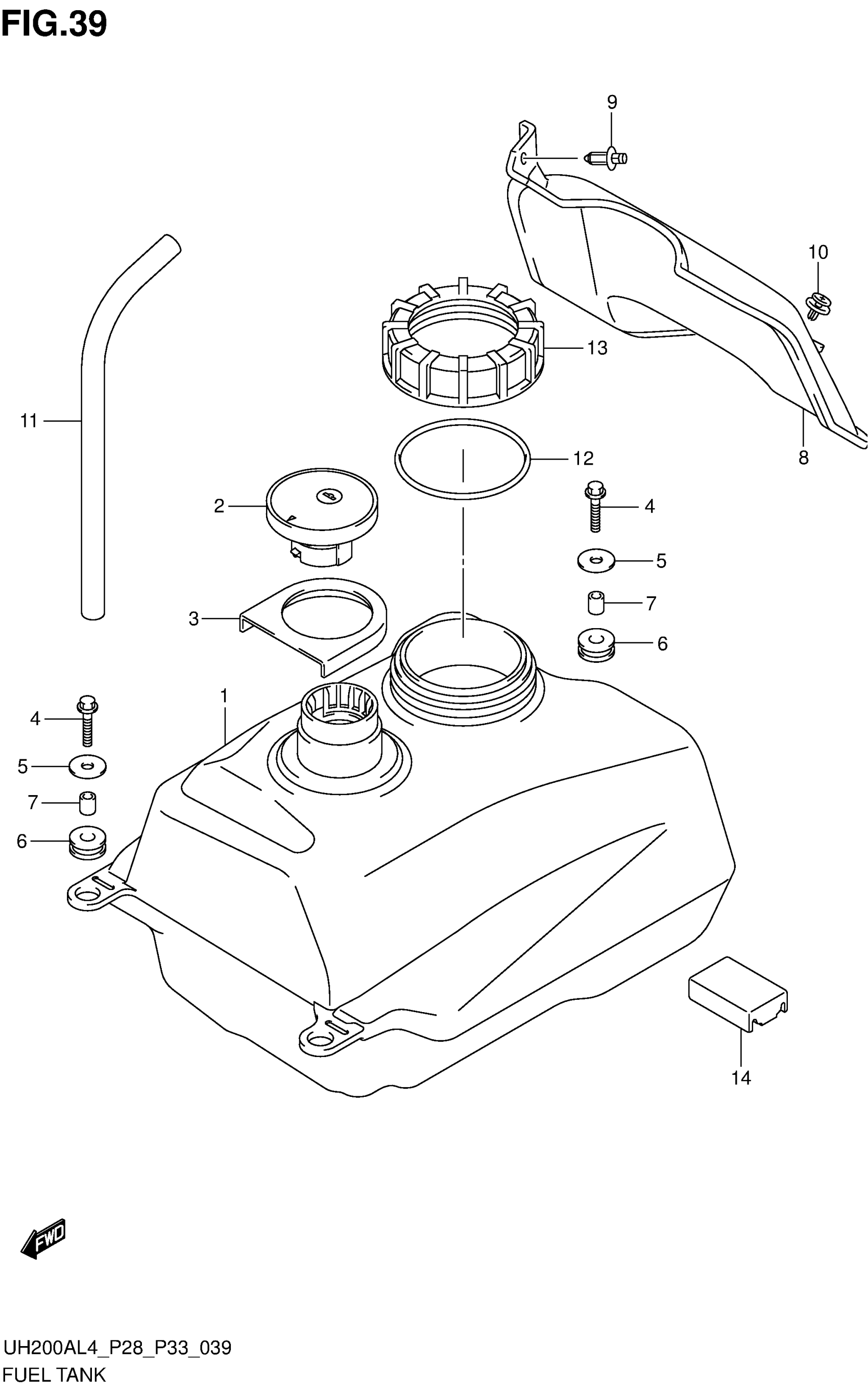

Suzuki UH200AL4 (2014) FUEL TANK (UH200AL4 P33) Diagram

TANK,FUEL

44110-12JD0

Unavailable

CAP ASSY, FUEL TANK

44200-12890

Unavailable

RUBBER,FUEL TANK INLET

44261-12J00

Unavailable

BOLT

01550-0625B

$2.42

WASHER (6.5X24X1.6)

09160-06501

$1.86

CUSHION This part replaces 09320-10029.

09320-10080

$7.80

SPACER (6.5X10X11)

09180-06288

$2.06

SHIELD, HEAT

44191-12J00

Unavailable

CLIP (BLACK)

09409-06314-5PK

$2.78

CLIP,FAN SHROUD

17795-65D00

Unavailable

HOSE(7X11X600) | 600->350 This part replaces 09352-70113-600.

09352-70119-600

$10.40

PACKING,FUEL PUMP

44596-03H00

$56.58

RETAINER,FUEL PUMP

44597-03H00

Unavailable

CUSHION,FUEL TANK LWR

44541-03H00

Unavailable
