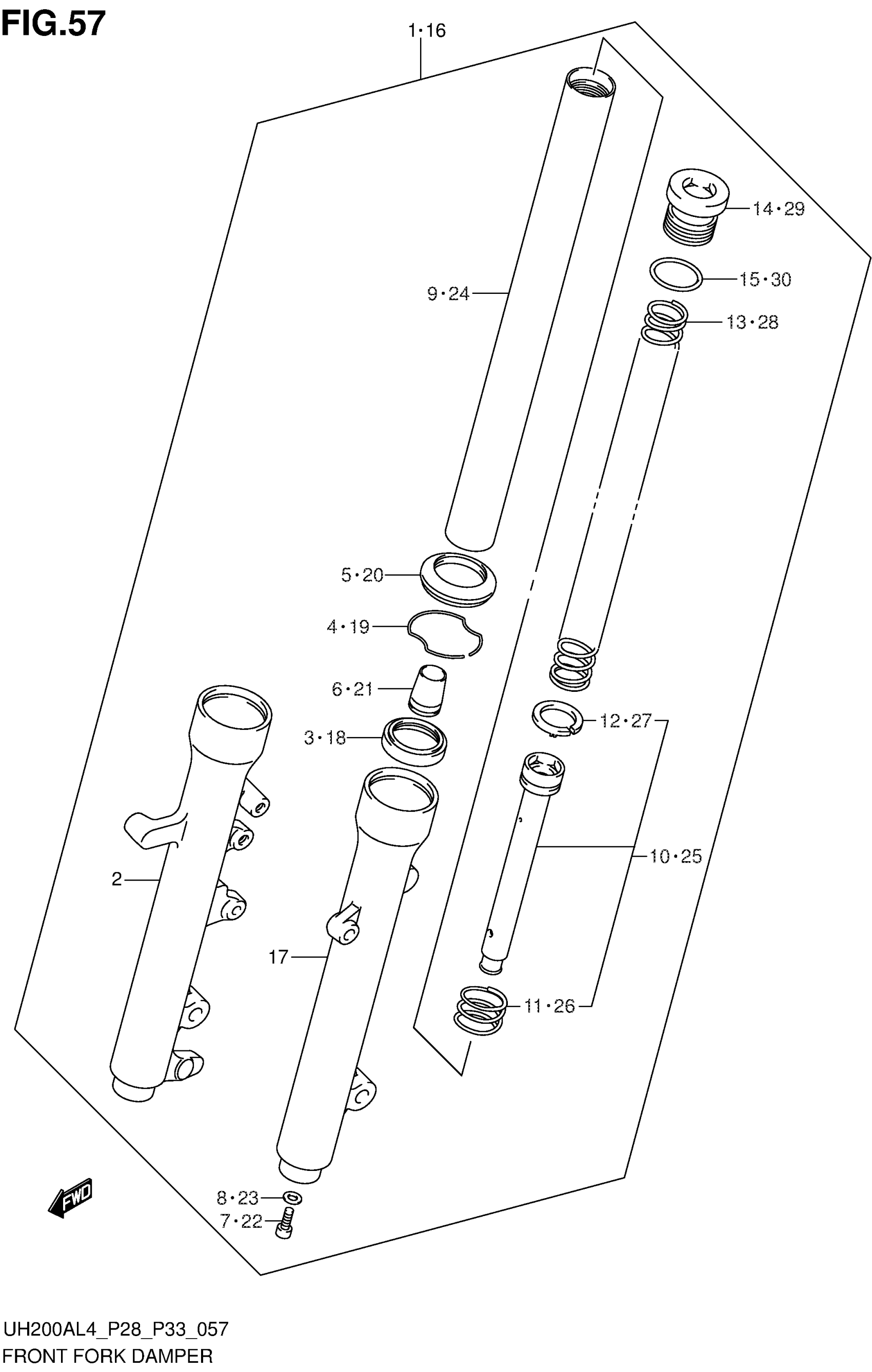

Suzuki UH200AL4 (2014) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-12J30

Unavailable

2

TUBE, OUTER RH

51131-12J30

Unavailable

3

OIL SEAL

51153-03H00

$27.17

4

RING, STOPPER

51156-03H00

Unavailable

5

SEAL, DUST

51173-03H00

$25.90

6

PIECE, OIL LOCK

51195-03H00

Unavailable

7

BOLT

51147-03H00

Unavailable

8

GASKET

51148-03H00

$12.07

9

TUBE, INNER

51110-12J00

Unavailable

10

CYLINDER

51146-03H00

Unavailable

11

SPRING, REBOUND

51177-03H00

Unavailable

12

RING, PISTON

51196-03H00

Unavailable

13

SPRING, FRONT

51171-03H00

Unavailable

14

CAP

51351-03H00

Unavailable

15

O RING

51117-03H00

Unavailable

16

DAMPER ASSY, FRONT FORK LH

51104-12J20

$630.55

17

TUBE, OUTER LH

51141-12J00

$302.70

18

OIL SEAL

51153-03H00

$27.17

19

RING, STOPPER

51156-03H00

Unavailable

20

SEAL, DUST

51173-03H00

$25.90

21

PIECE, OIL LOCK

51195-03H00

Unavailable

22

BOLT

51147-03H00

Unavailable

23

GASKET

51148-03H00

$12.07

24

TUBE, INNER

51110-12J00

Unavailable

25

CYLINDER

51146-03H00

Unavailable

26

SPRING, REBOUND

51177-03H00

Unavailable

27

RING, PISTON

51196-03H00

Unavailable

28

SPRING, FRONT

51171-03H00

Unavailable

29

CAP

51351-03H00

Unavailable

30

O RING

51117-03H00

Unavailable
