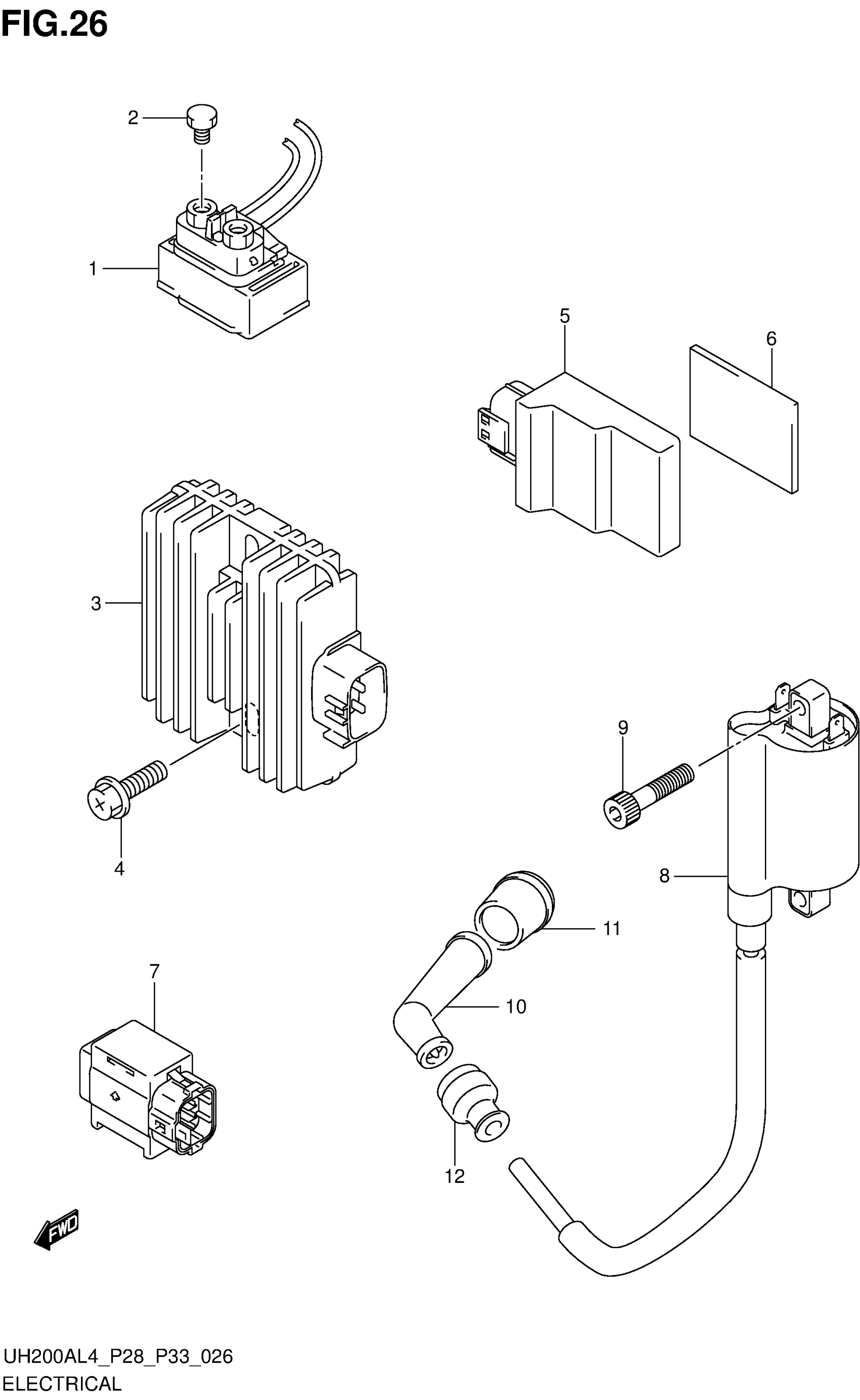

Suzuki UH200AL4 (2014) ELECTRICAL (UH200AL4 P33) Diagram

#

Description

Price

1

RELAY ASSY,STAR This part replaces 31800-03H00.

31800-03H02

$74.65

2

SCREW (6X8)

09128-06013

$1.49

3

RECTIFIER ASSY

32800-42F00

$237.18

4

SCREW

02162-0625A

$1.78

5

CONTROL UNIT,FI This part replaces 32920-12J20.

32920-12J22

$408.12

6

CUSHION, REAR FENDER REAR This part replaces 33652-08410.

33651-37000

$4.48

7

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

8

COIL ASSY, IGNITION

33410-03H00

Unavailable

9

BOLT

07130-0520B

$2.53

10

CAP ASSY,SPARK PLUG

33510-16H10

$32.83

11

SEAL, SPARK PLUG

33541-44D00

$5.30

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34
