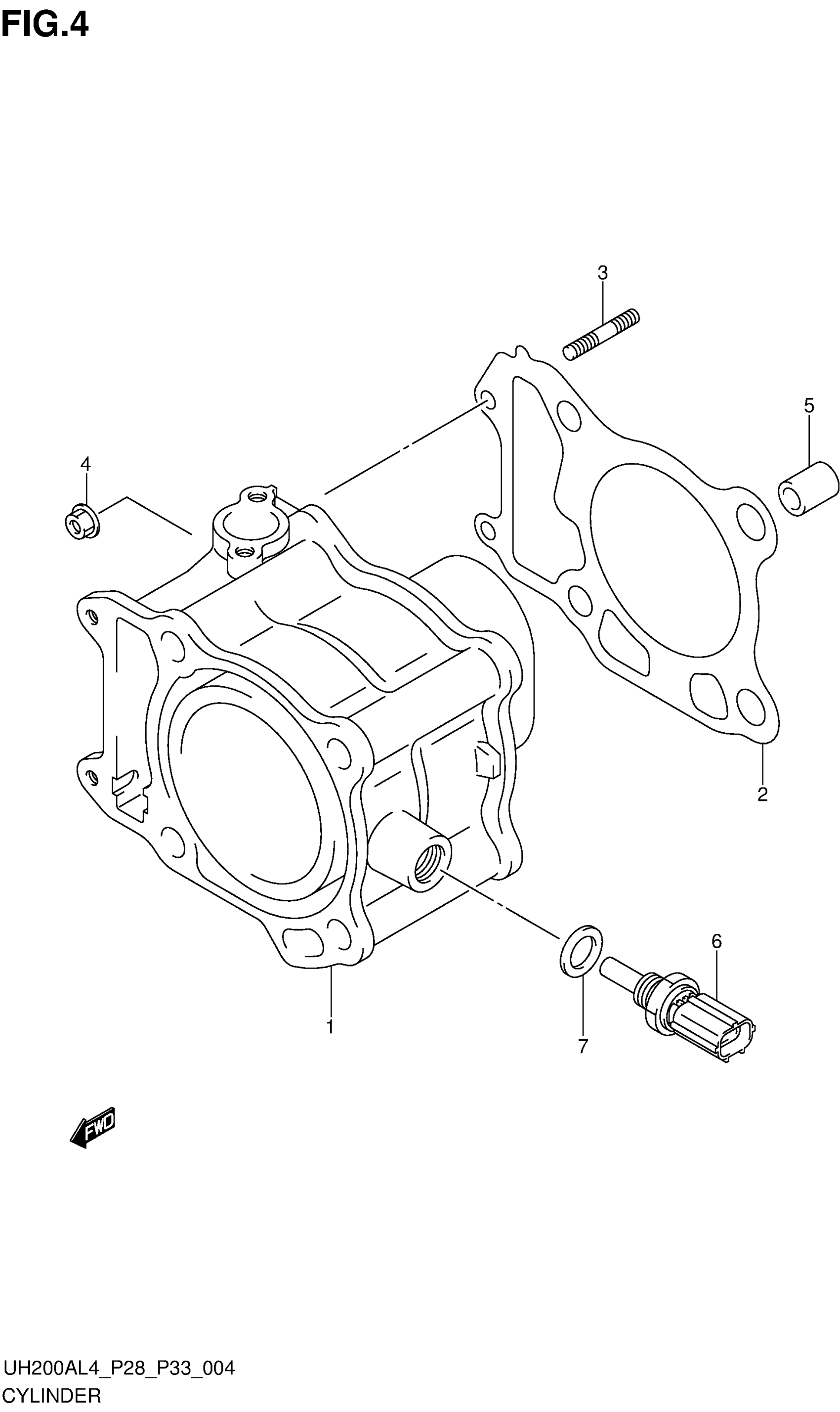

Suzuki UH200AL4 (2014) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-03H00-0F0

Unavailable

2

GASKET, CYLINDER

11241-03H00

Unavailable

3

STUD BOLT

01421-0625A

$1.99

4

NUT

08316-1006A

$2.19

5

PIN

04211-13189

$2.19

6

SENSOR, WATER TEMP

13650-10G00

$87.24

7

GASKET (12X17X1)

09168-12017

$1.95
