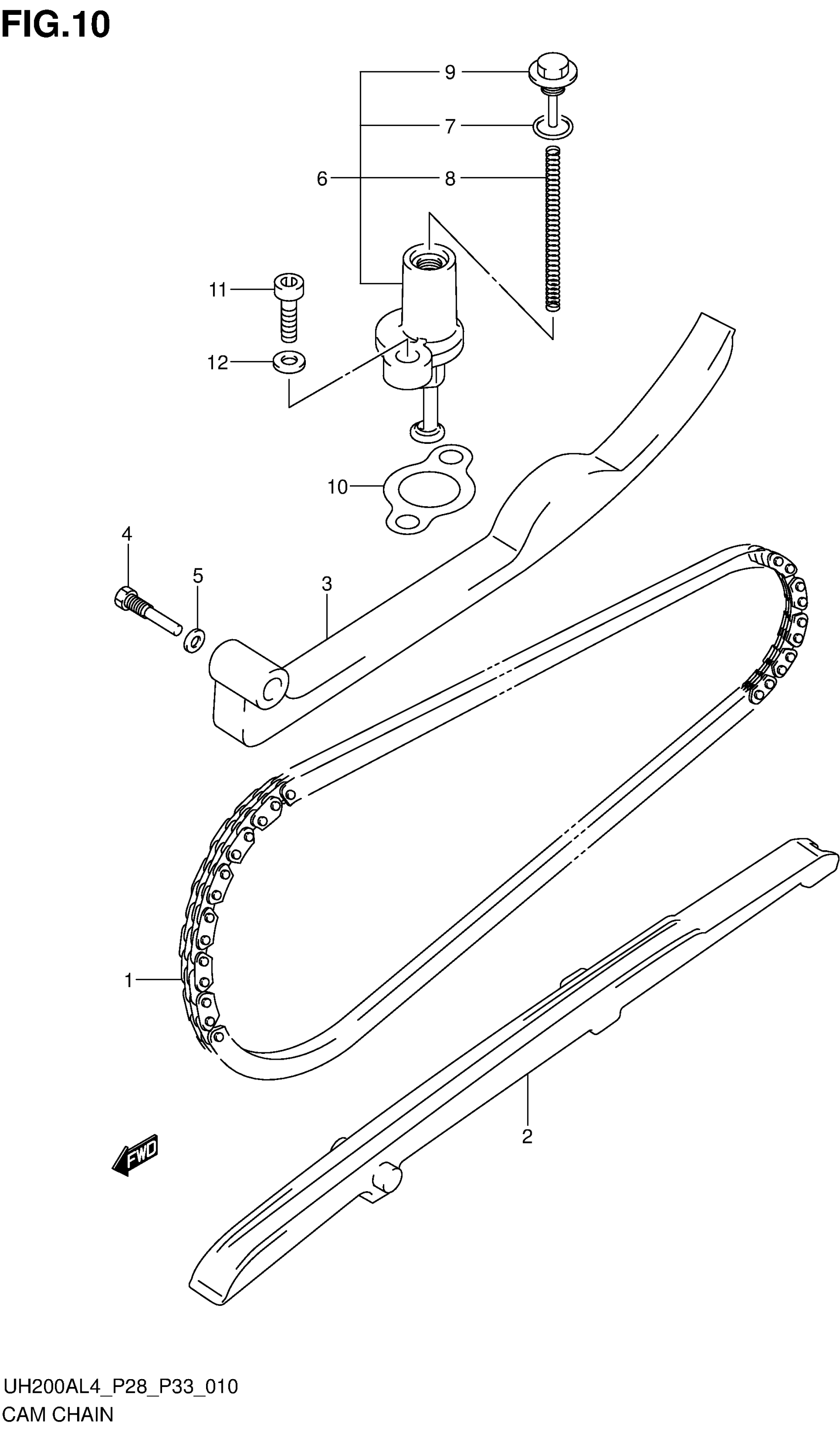

Suzuki UH200AL4 (2014) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE

12760-04B00

$75.52

2

GUIDE,CAM CHAIN

12771-21F10

Unavailable

3

TENSIONER,CAM CHAIN

12811-21F10

Unavailable

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1)

09168-08016

$1.65

6

ADJUSTER ASSY,TENSIONER

12830-02A00

Unavailable

7

O RING

12832-02A00

$2.82

8

SPRING

12833-02A00

$3.27

9

PLUG, ADJUSTER

12834-02A00

Unavailable

10

GASKET, TENSIONER ADJUSTER

12837-16H00

Unavailable

11

BOLT

07130-0620A

$2.50

12

GASKET, TENSIONER ADJUSTER BOLT (5.8X13X1.2)

09168-06L05

Unavailable
