Description

Price

1

REAR ARM

(527-22110-01-71)

Unavailable

2

SHAFT, PIVOT

(109-22141-00-00)

Unavailable

3

BUSH 1

102-22123-00-00

Unavailable

4

SEAL, GUARD

(296-22151-01-00)

Unavailable

5

NUT(3BM)

95314-10600-00

$2.39

6

CAP

(180-22117-00-00)

Unavailable

7

SHK/ABS ASSEMBLY, REAR

(296-22210-40-71)

Unavailable

8

BOLT(M35)

90101-10776-00

Unavailable

9

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

NUT, CROWN (650)

95380-10800-00

Unavailable

12

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

13

NUT, HEXAGON SMALL

95317-12700-00

$8.49

14

CHAIN CASE ASSEMBLY

(296-22310-02-71)

Unavailable

15

CAP

148-22315-00-00

$7.99

16

SCREW, PAN HEAD(3AH)

98507-05006-00

Unavailable

17

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

18

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

19

NUT, HEXAGON SMALL

95317-12700-00

$8.49

19

NUT(3DM)

95304-12600-00

Unavailable

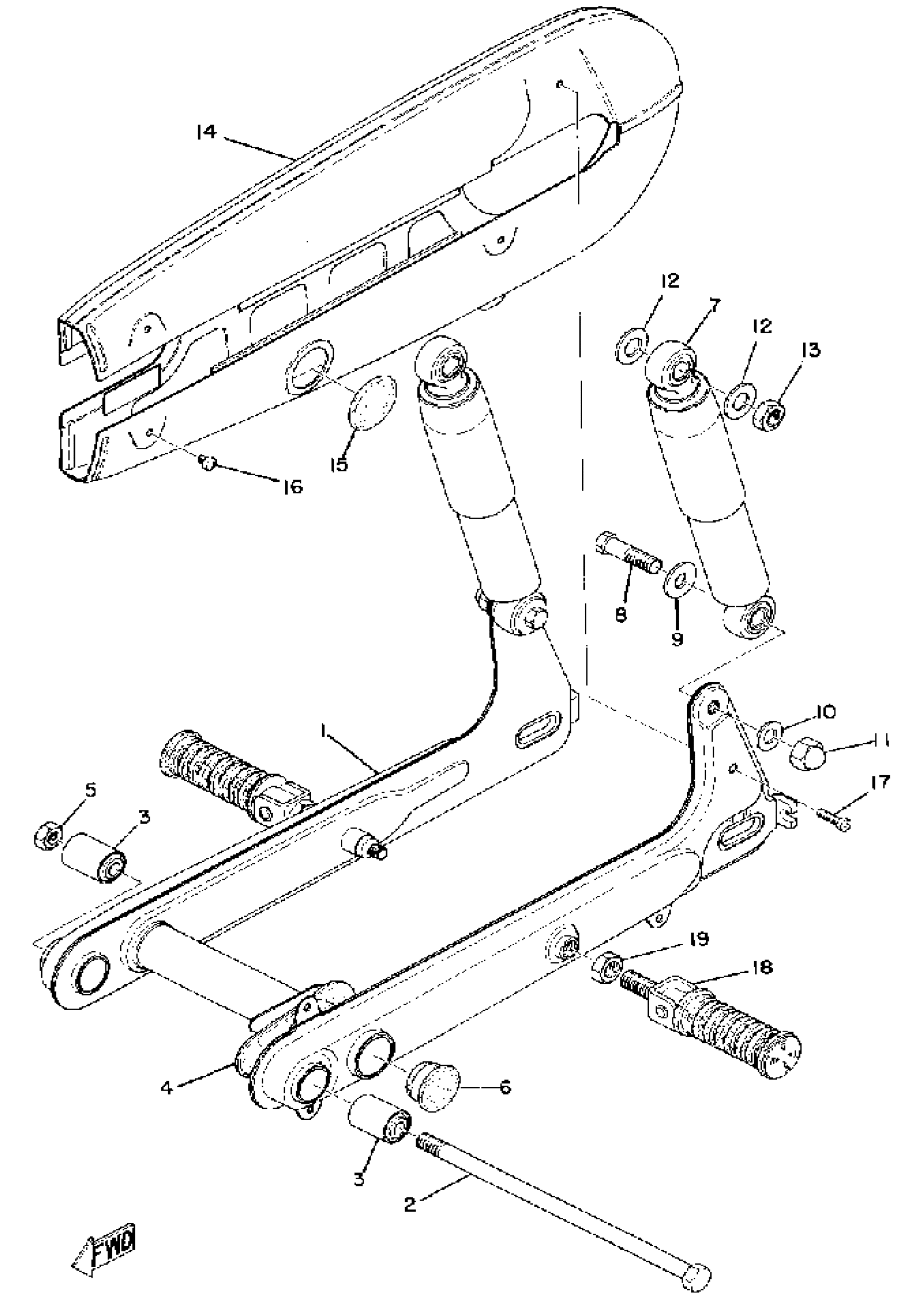

Yamaha U7E (U7E) 1972 REAR ARM REAR CUSHION CHAIN CASE Diagram

REAR ARM

SHAFT, PIVOT

BUSH 1

SEAL, GUARD

NUT(3BM)

CAP

SHK/ABS ASSEMBLY, REAR

BOLT(M35)

WASHER, PLATE(3BM)

958-69527-00 WASHER, PLAIN

NUT, CROWN (650)

WASHER, PLATE (4N0)

NUT, HEXAGON SMALL

CHAIN CASE ASSEMBLY

CAP

SCREW, PAN HEAD(3AH)

SCREW, PAN HEAD(4MY)

REAR FOOTREST ASSY

NUT, HEXAGON SMALL

NUT(3DM)
