Description

Price

1

TANK, OIL

(296-21751-00-00)

Unavailable

2

BODY, CAP

296-21771-62-00

Unavailable

3

GASKET, CAP

296-21772-00-00

Unavailable

4

PLATE, BRIDGE

(296-21243-01-76)

Unavailable

5

PILOT LT SWCH ASSEMBLY

(297-85420-00-00)

Unavailable

6

BULB (12V-3.4W)

123-83516-21-00

$4.26

7

EMBLEM 7

(296-21787-00-00)

Unavailable

8

GAUGE, OIL

(296-21792-00-00)

Unavailable

9

PIPE, OIL

(164-24319-00-00)

Unavailable

10

CLIP 101235600

90467-08003-00

$10.49

11

HOSE (L1050)

90445-072G8-00

$29.99

12

GROMMET

(296-21773-00-00)

Unavailable

13

BOLT, HEXAGON

97013-08020-00

$1.16

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

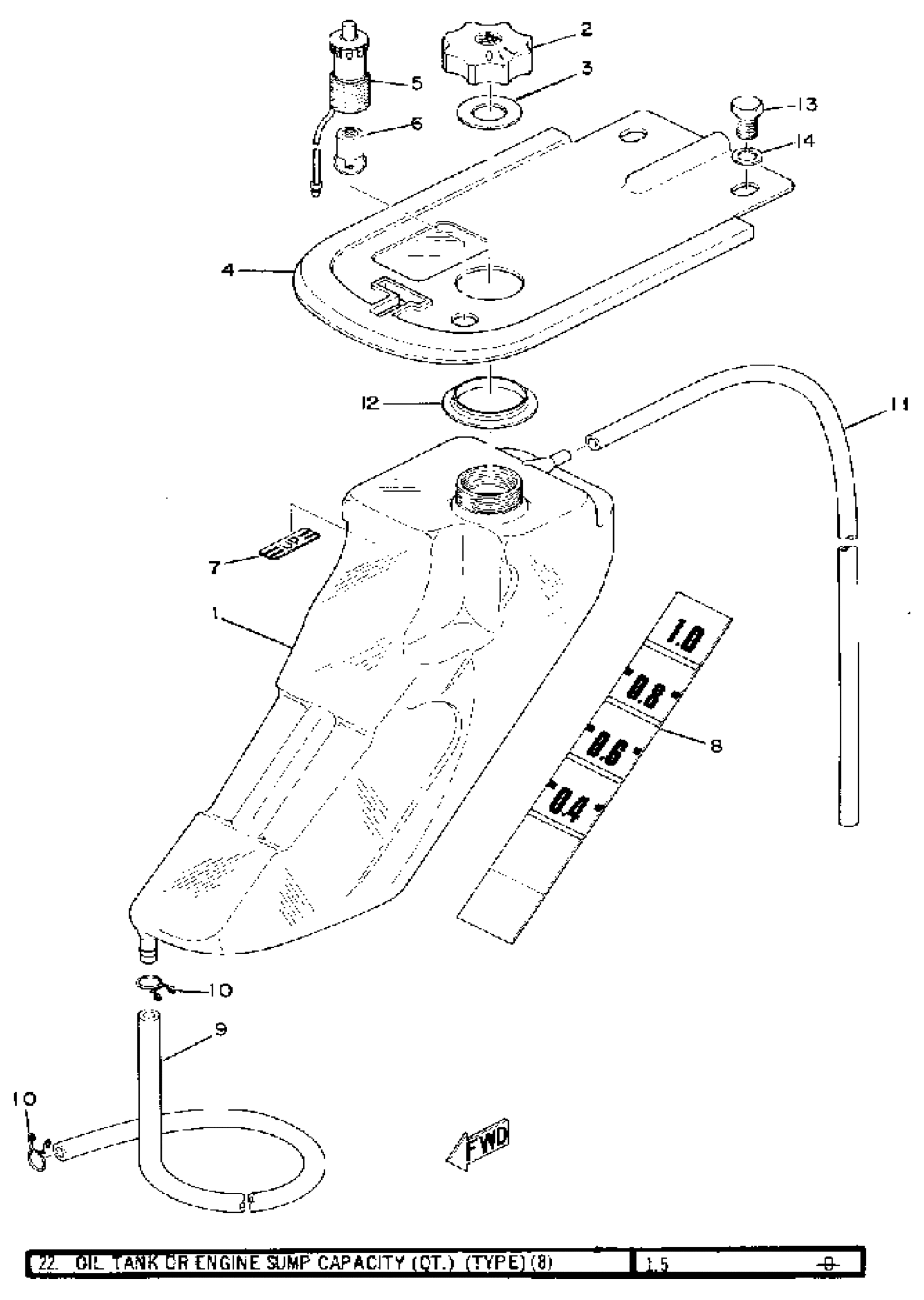

Yamaha U7E (U7E) 1972 OIL TANK Diagram

TANK, OIL

BODY, CAP

GASKET, CAP

PLATE, BRIDGE

PILOT LT SWCH ASSEMBLY

BULB (12V-3.4W)

EMBLEM 7

GAUGE, OIL

PIPE, OIL

CLIP 101235600

HOSE (L1050)

GROMMET

BOLT, HEXAGON

YBS67-8 WASHER, SPRING
