1972 Yamaha U7E (U7E) Fuel Tank Diagram

← All diagrams

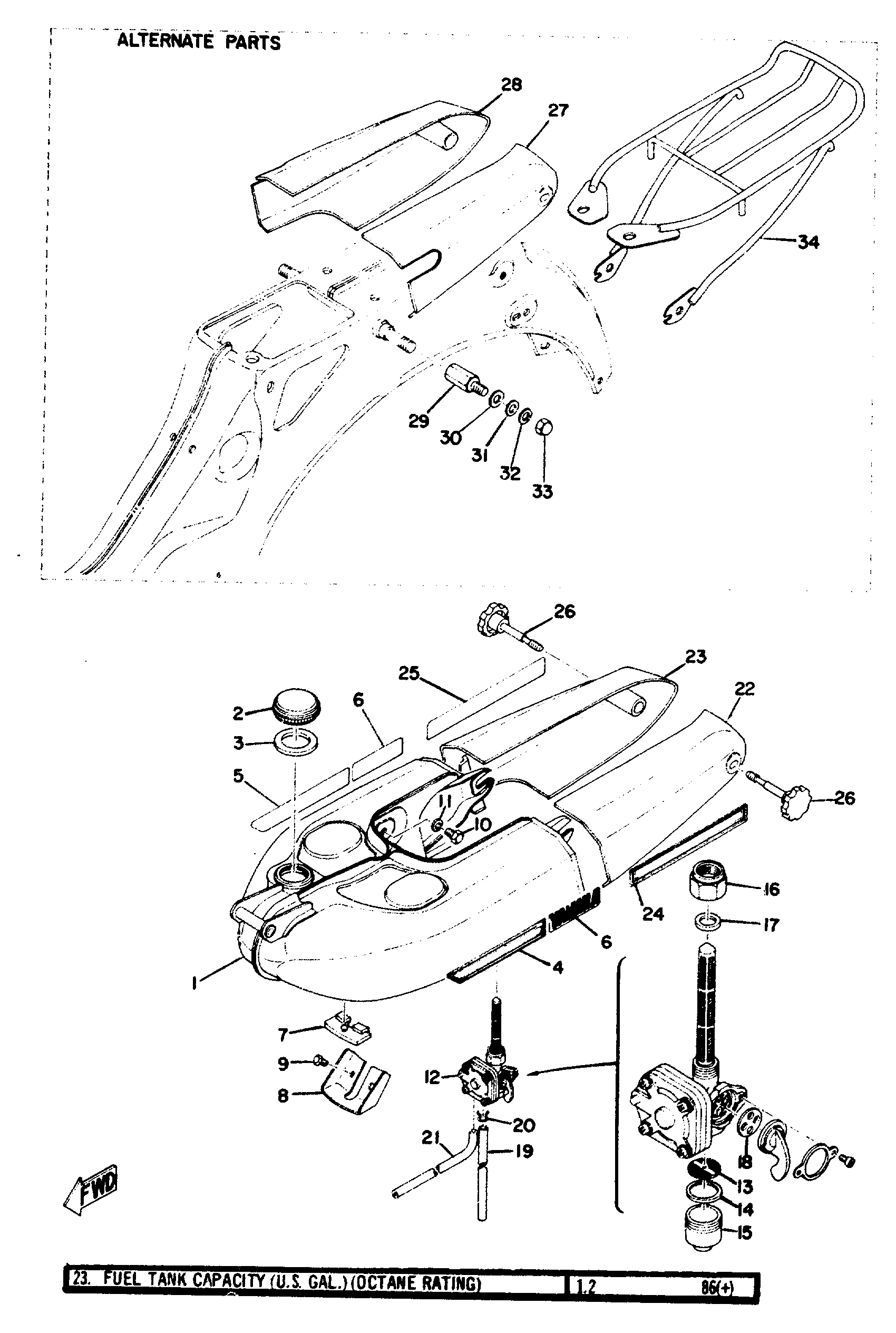

Find the part on the Fuel Tank diagram for your 1972 Yamaha U7E (U7E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha U7E (U7E) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(296-24110-01-71)

1
Out of stock

2

CAP ASSY

22F-24610-10-00

—

$36.43

In stock

3

PACKING, CAP

3T5-24612-20-00

1

$6.72

In stock

4

EMBLEM 1

(296-24161-10-00)

1
Out of stock

5

EMBLEM 2

(296-24162-10-00)

1
Out of stock

6

EMBLEM 3

(296-24163-00-00)

1
Out of stock

7

DAMPER, LOCATING 1

(296-24181-00-00)

1
Out of stock

8

BRACKET, TANK FTNG

(296-21345-00-00)

1
Out of stock

9

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

10

BOLT

(90101-08018-00)

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

FUEL COCK ASSEMBLY 1

(296-24500-00-00)

1
Out of stock

13

. NET, FILTER 2

266-24515-00-00

1
Out of stock

14

GASKET

266-24522-00-00

—

$5.80

In stock

15

. CUP, FILTER

266-24521-01-00

1
Out of stock

16

NUT

(266-24531-01-00)

1
Out of stock

17

. GASKET

266-24532-00-00

1
Out of stock

18

VALVE

266-24523-00-00

—

$9.49

In stock

19

HOSE (L600)

90445-083J5-00

—

$7.65

In stock

20

CLIP 101235600

90467-08003-00

—

$6.13

In stock

21

HOSE

(90445-07246-00)

1
Out of stock

22

COVER, SIDE 3

(296-21731-21-71)

1
Out of stock

23

COVER, SIDE 4

(296-21741-21-71)

1
Out of stock

24

EMBLEM 4

(296-21784-10-00)

1
Out of stock

25

EMBLEM 5

(296-21785-10-00)

1
Out of stock

26

KNOB, SIDE COVER 1

(296-21714-00-00)

1
Out of stock

27

COVER, SIDE 3

(296-21731-80-71)

1
Out of stock

28

COVER, SIDE 4

(296-21741-80-71)

1
Out of stock

29

BOLT

(90109-10207-00)

1
Out of stock

30

WASHER, PLATE

(90201-10127-00)

1
Out of stock

31

—

$3.00

In stock

32

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

33

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

34

CARRIER U7E

(296-24830-00-00)

1
Out of stock
