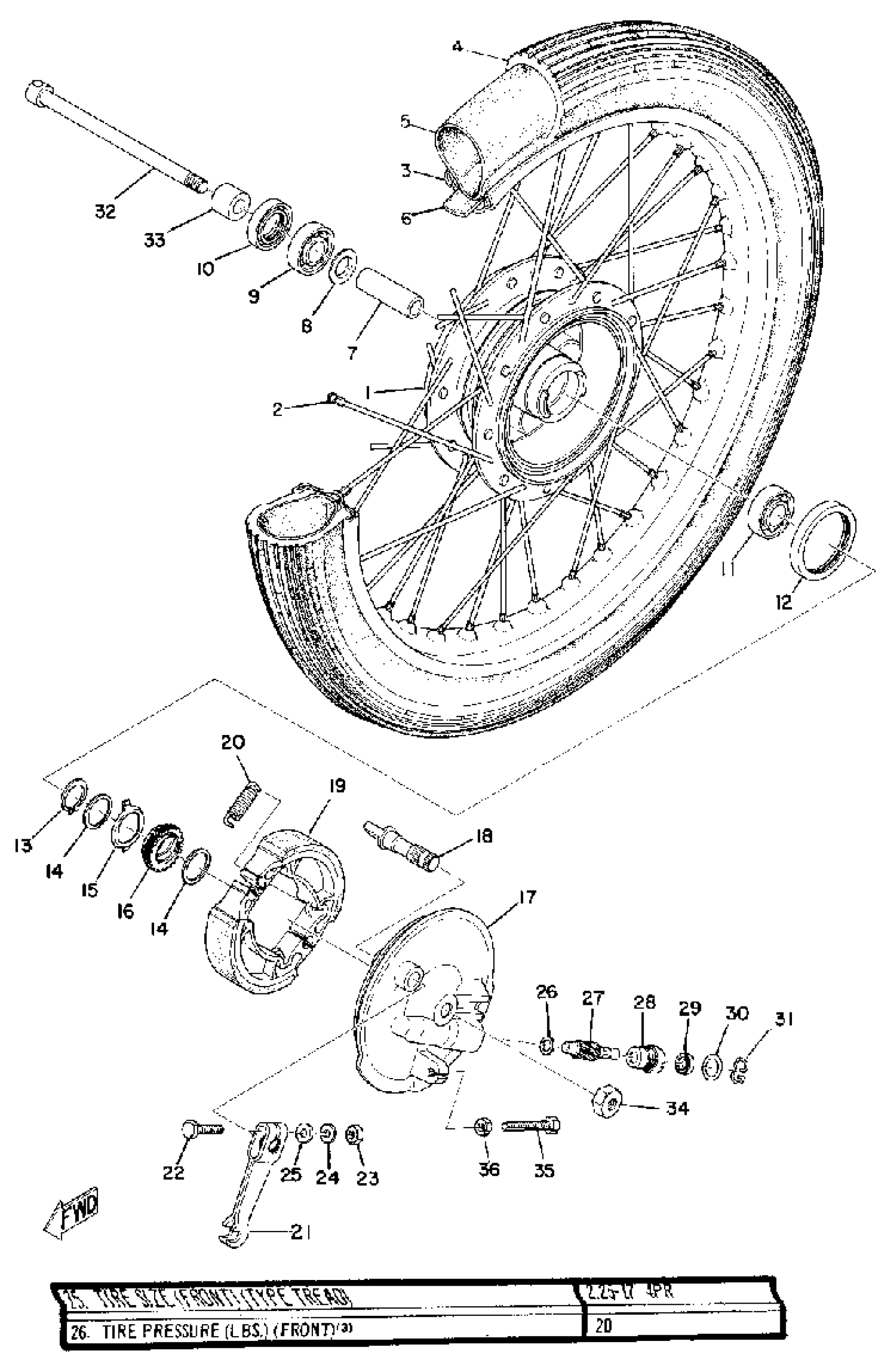

Yamaha U7E (U7E) 1972 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

(296-25111-00-00)

Unavailable

2

SPOKE SET, FRONT

(109-25104-00-00)

Unavailable

3

RIM (1.20-17)(19K)

94412-17496-00

Unavailable

4

TIRE FRONT 225X17

(94122-17315-00)

Unavailable

5

TUBE

(94225-17082-00)

Unavailable

6

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

7

SPACER, BEARING

90560-10303-00

Unavailable

8

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

9

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

10

OIL SEAL (20X35X7-136)

93102-20009-00

$10.49

11

BRG,R-B 6300 35MM 58G NT

93306-30003-00

$41.99

12

SEAL,OIL

93105-47007-00

$15.99

13

CIRCLIP(1AR)

99009-20400-00

$8.49

14

WASHER, PLATE 1832514700

90201-20269-00

$7.49

15

CLUTCH, METER

183-25149-00-00

$6.99

16

GEAR, DRIVE

(296-25135-00-00)

Unavailable

17

PLATE, BRAKE SHOE

(296-25121-00-00)

Unavailable

18

CAM SHAFT

122-25351-02-00

Unavailable

19

BRAKE SHOE KIT

4KN-W253E-11-00

Unavailable

20

SPRING, TENSION (566).

90506-16150-00

Unavailable

21

LEVER, CAMSHAFT 1

109-25155-00-00

Unavailable

22

BOLT(JF7)

97080-06030-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLATE (371)

90201-06431-00

Unavailable

26

WASHER, PLATE 1832514600

90201-07076-00

Unavailable

27

GEAR, METER

(296-25138-00-00)

Unavailable

28

BUSHING

109-25136-00-00

Unavailable

29

OIL SEAL (7X14X4-136)

93104-07003-00

Unavailable

30

O-RING (26H)

93210-14579-00

Unavailable

31

RING, STOP

102-25137-00-00

Unavailable

32

AXLE, WHEEL

(296-25181-00-00)

Unavailable

33

COLLAR

90387-10077-00

Unavailable

34

NUT(3BM)

95314-10600-00

Unavailable

35

BOLT (109-26345-00)

90123-06011-00

Unavailable

36

NUT (109-26344-00)

90179-06143-00

Unavailable
