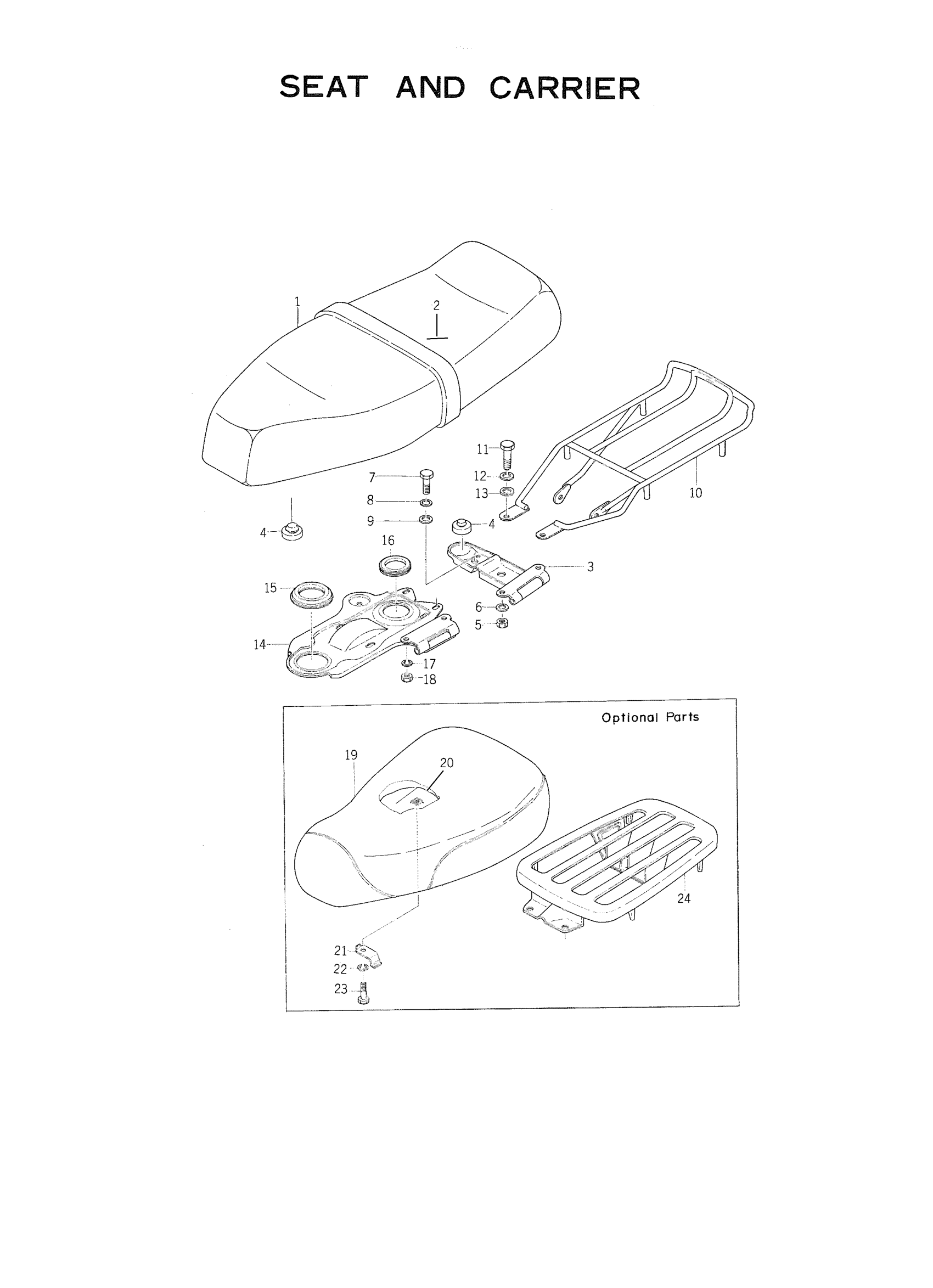

Yamaha U5E (U5E) 118 1967 SEAT - CARRIER Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

116-24730-01-00

Unavailable

2

COVER,DOUBLE SEAT

116-24731-01-36

Unavailable

3

BRACKET, DOUBLE SEAT

116-24738-00-00

Unavailable

4

PAD, SEAT

116-24741-00-00

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

WASHER, SPRING

92995-06100-00

Unavailable

7

BOLT, HEXAGON

97013-08016-00

$1.01

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

WASHER, PLAIN

92990-08200-00

Unavailable

10

SUB CARRIER ASSY

116-24830-00-00

Unavailable

11

BOLT

91201-08100-00

Unavailable

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

BRACKET,SEAT

117-24718-01-33

Unavailable

15

GROMMET

116-24742-01-00

Unavailable

16

GROMMET 117217730000

90480-40047-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

SINGLE SEAT ASY

266-24710-00-00

Unavailable

20

COVER,SINGLE SEAT

266-24711-00-00

Unavailable

21

COVER,SINGLE SEAT

266-24711-00-00

Unavailable

22

WASHER, SPRING

92901-06010-00

Unavailable

23

BOLT(3JP)

97017-06010-00

Unavailable

24

CARRIER ASSY

116-24810-00-00

Unavailable
