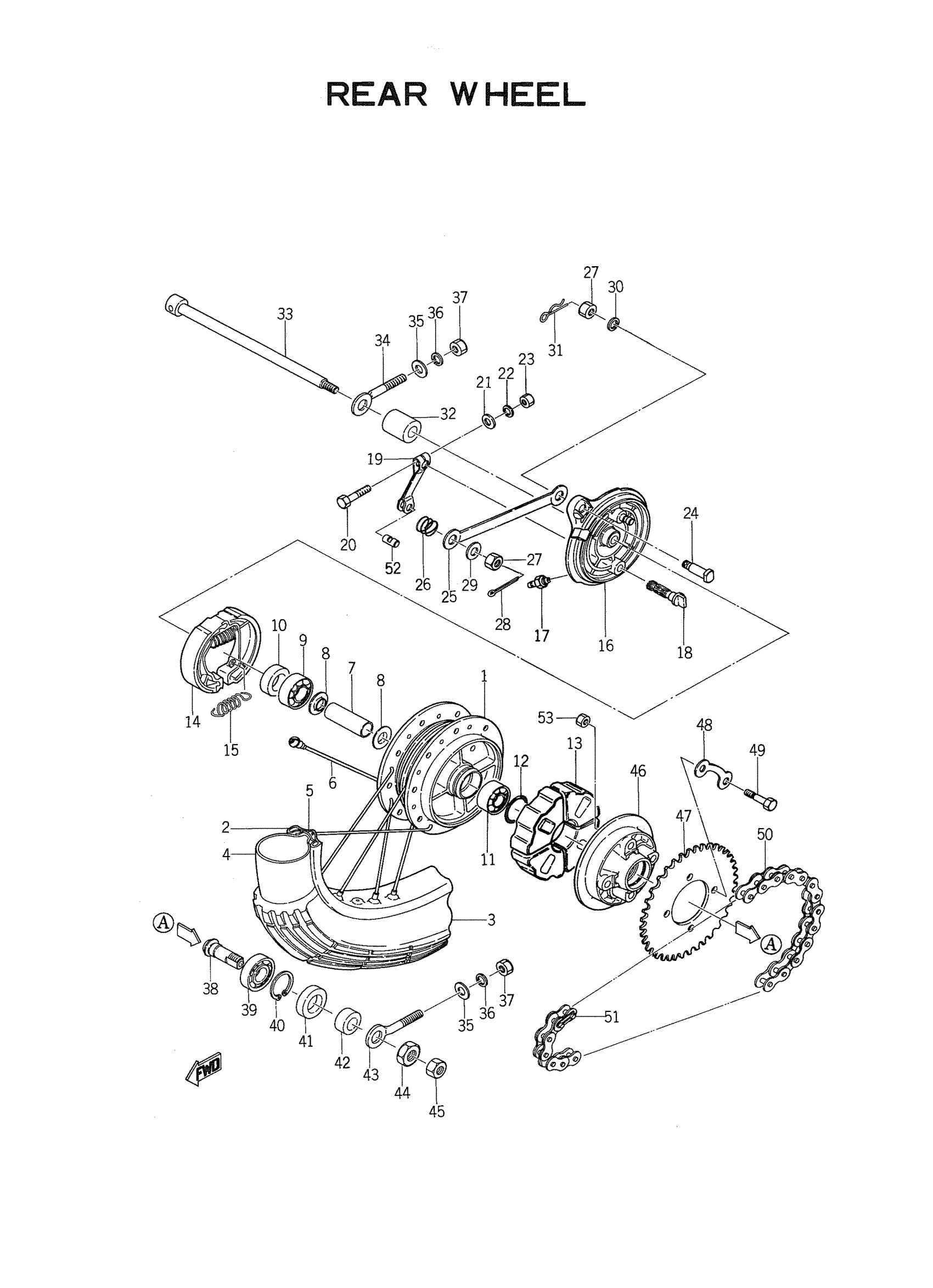

Yamaha U5E (U5E) 118 1967 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

102-25311-00-38

Unavailable

2

RIM (1.20-17)(19K)

94412-17496-00

Unavailable

3

TIRE

94412-17009-00

Unavailable

4

TUBE

94225-17082-00

Unavailable

5

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

$9.49

6

SPOKE SET, REAR

122-25304-00-00

Unavailable

7

SPACER

90560-12145-00

$20.99

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BRG.

93306-30101-00

$36.99

10

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

11

BEARING

93306-30102-00

$39.99

12

O-RING

93310-41041-00

Unavailable

13

DAMPER

102-25364-00-00

Unavailable

14

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

15

SPRING, TENSION (566).

90506-16150-00

$9.49

16

BRAKE SHOE PLT ASY

339-25320-10-00

Unavailable

17

NIPPLE, GREASE

93700-06M03-00

Unavailable

18

CAM SHAFT

122-25351-02-00

Unavailable

19

LEVER, CAMSHAFT

122-25355-01-00

Unavailable

20

BOLT, HEXAGON

97017-06030-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

BOLT 1022537300

90109-08183-00

Unavailable

25

BAR, TENSION

102-25371-00-00

Unavailable

26

SPRING,COMPRESSION

90501-20129-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

PIN 1562723700

90249-12008-00

Unavailable

29

WASHER, PLAIN

92990-08200-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

CLIP (156-83525-00)

90468-10050-00

Unavailable

32

COLLAR 102253830000

90387-12412-00

Unavailable

33

AXLE,WHEEL

357-25381-00-00

Unavailable

34

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

35

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

37

NUT, HEXAGON

95380-06600-00

Unavailable

38

AXLE,SPROCKET

102-25387-02-00

Unavailable

39

BEARING(3BN)

93306-00438-00

Unavailable

40

CIRCLIP

93420-420007-00

Unavailable

41

OIL SEAL (30X42X8-102)

93106-30004-00

Unavailable

42

COLLAR

90387-18143-00

Unavailable

43

PULLER, CHAIN

4GL-2538A-10-00

Unavailable

44

NUT, HEXAGON

90170-18165-00

Unavailable

45

NUT,SPEC'L SHAPE

90179-10106-00

Unavailable

46

CLUTCH, HUB

102-25366-00-00

Unavailable

47

GEAR, SPROCKET WHEEL

122-25436-10-00

Unavailable

47

SPROCKET, DRIVEN (37T)

122-25437-11-00

Unavailable

47

SPROCKET,DRIVN 38T

122-25438-10-33

Unavailable

47

SPROCKET, DRVN 40T

122-25440-00-00

Unavailable

48

WASHER

4AW-25412-00-00

Unavailable

49

BOLT(1AJ)

90101-08672-00

Unavailable

50

CHAIN, DRIVE

94580-52098-00

Unavailable

51

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

52

PIN 1562723700

90249-12008-00

Unavailable

53

NUT(6L2)

95333-08600-00

Unavailable
