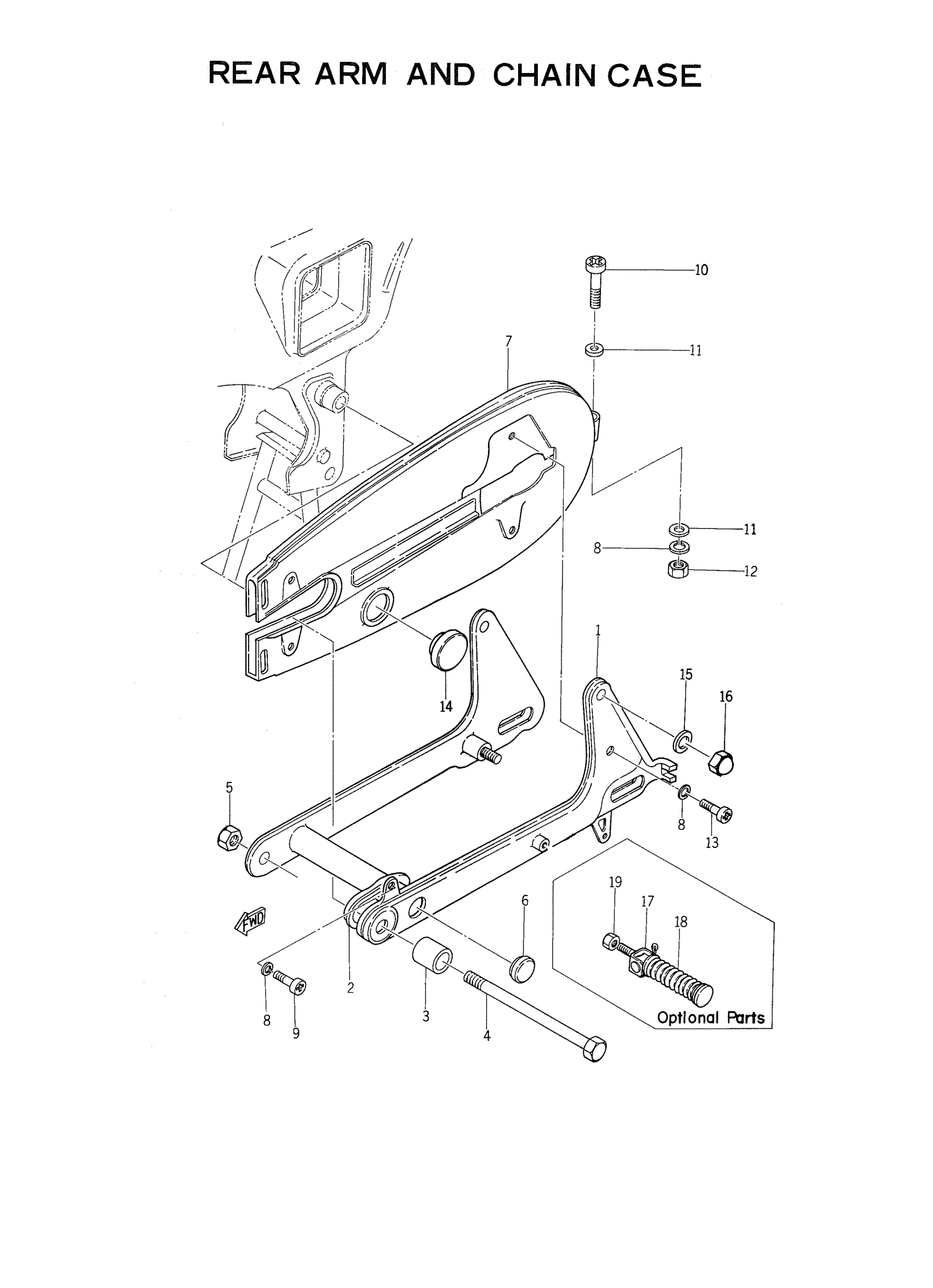

Yamaha U5E (U5E) 118 1967 REAR ARM - CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

116-22110-01-00

Unavailable

2

SEAL,GUARD

296-22151-01-00

Unavailable

3

BUSH 1

102-22123-00-00

Unavailable

4

SHAFT, PIVOT

486-22141-01-00

$33.99

5

NUT, SELF LOCKING

90185-10031-00

Unavailable

6

CAP, REAR ARM

180-22117-00-00

$7.99

7

CASE, CHAIN

102-22310-00-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

10

SCREW, PAN HEAD (686)

98580-05035-00

Unavailable

11

. WASHER, PLAIN

92990-05200-00

Unavailable

12

NUT, HEXAGON SMALL

95317-05700-00

$8.49

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

14

CAP

148-22315-00-00

$7.99

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

16

NUT, CROWN (650)

95380-10800-00

Unavailable

17

BOLT

90101-12121-00

Unavailable

18

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

19

NUT, HEXAGON

90170-12061-00

Unavailable
