1967 Yamaha U5E (U5E) LEG Shield Diagram

← All diagrams

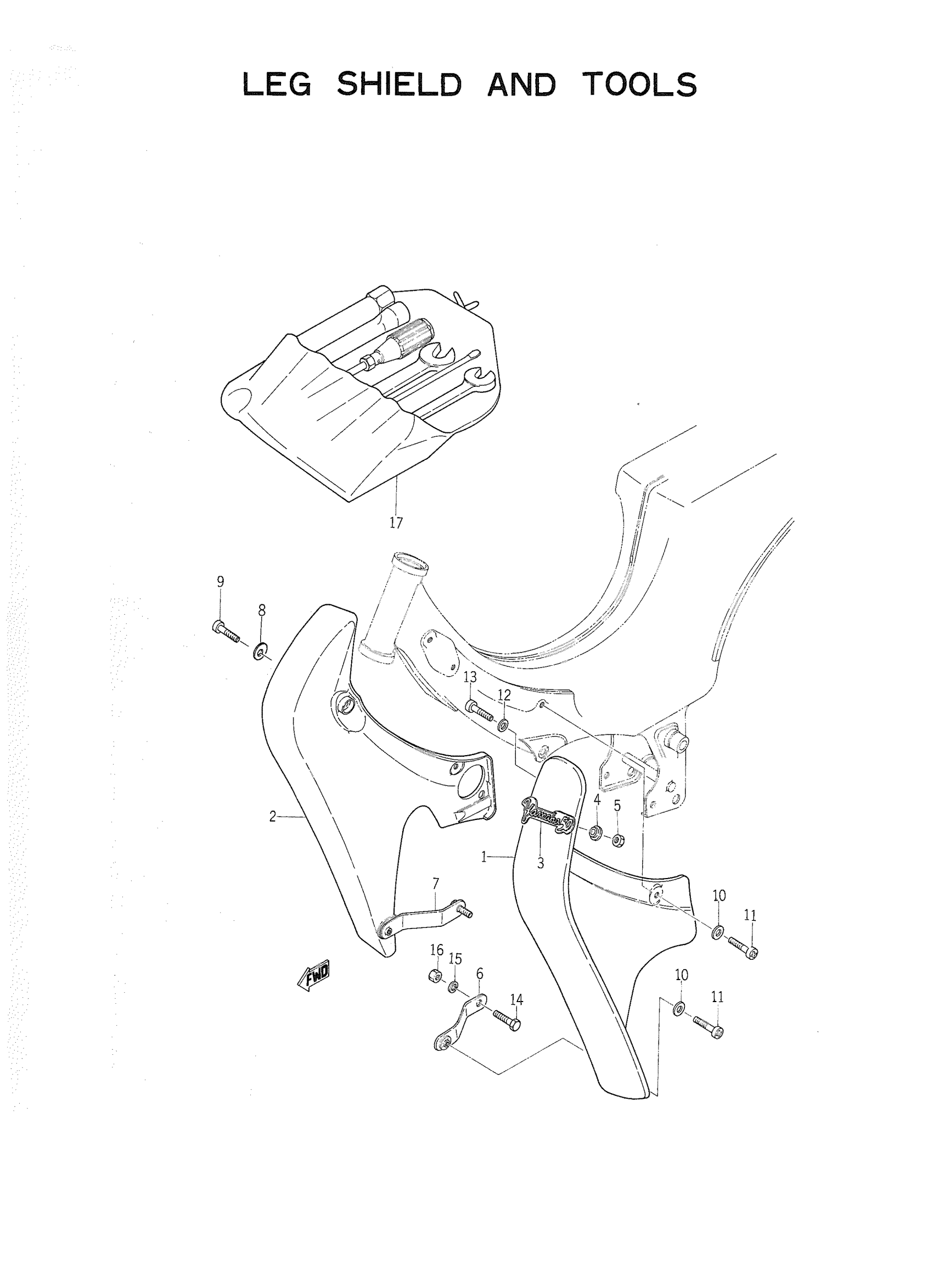

Find the part on the LEG Shield diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) LEG Shield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEG SHIELD LH

116-28311-01-00

1
Out of stock

2

LEG SHIELD RH

116-28312-00-00

1
Out of stock

3

EMBLEM

116-28315-00-00

1
Out of stock

4

DAMPER, EMBLEM

116-28316-01-00

1
Out of stock

5

NUT SPRING 116283170100

90183-04005-00

1

$0.74

In stock

6

STAY (LH)

116-28321-00-00

1
Out of stock

7

STAY (RH)

116-28322-00-00

1
Out of stock

8

WASHER, LEG SHIELD

116-28323-01-00

1
Out of stock

9

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

SCREW, PAN

98507-06014-00

1

$6.18

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

14

BOLT

91201-08100-00

1
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

NUT(6L2)

95333-08600-00

—

$3.20

In stock

17

TOOL KIT

1E7-W2810-00-00

1
Out of stock
