1967 Yamaha U5E (U5E) Frame Diagram

← All diagrams

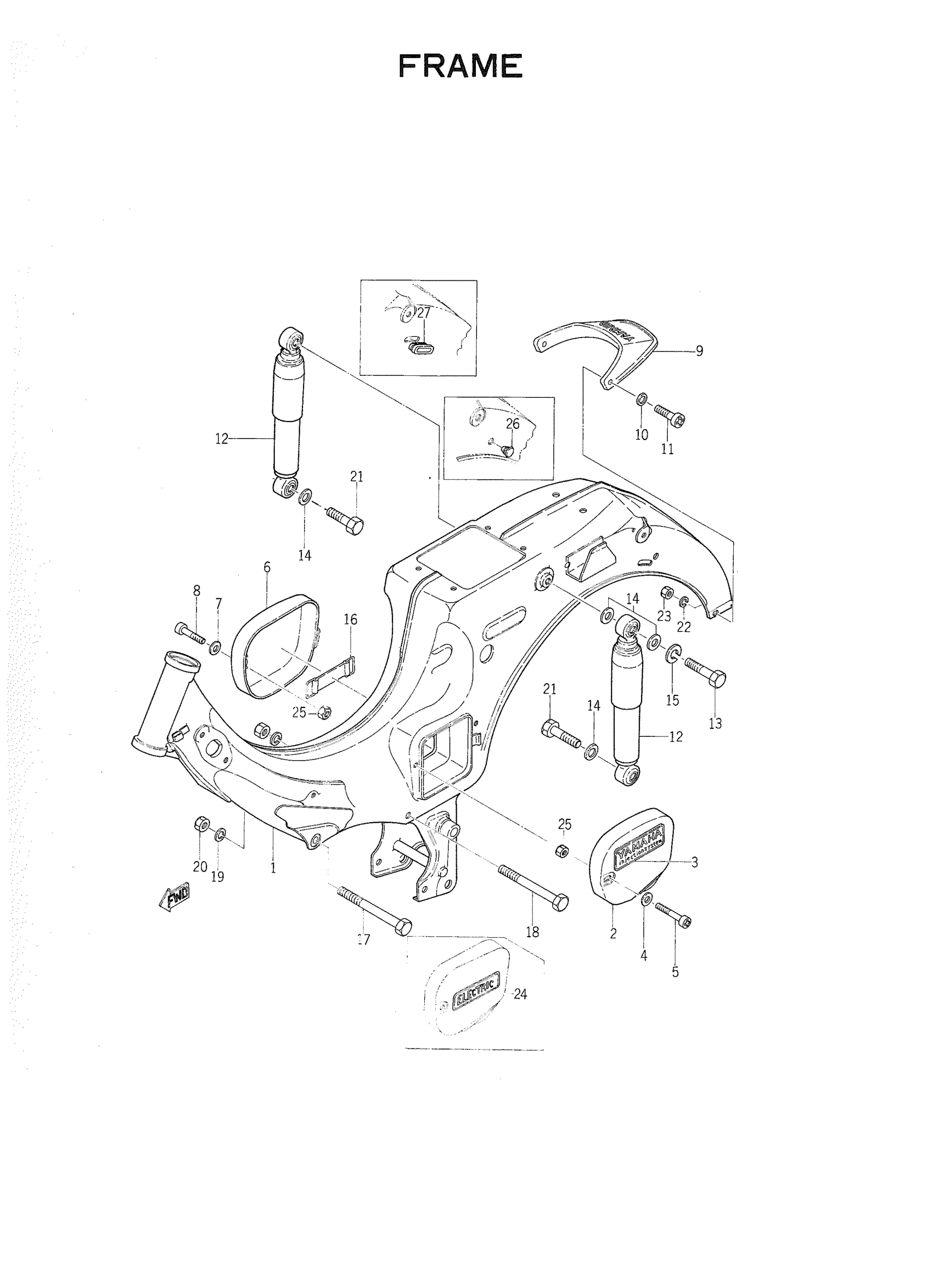

Find the part on the Frame diagram for your 1967 Yamaha U5E (U5E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha U5E (U5E) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

118-21110-60-00

1
Out of stock

2

COVER,SIDE 1

118-21711-00-81

1
Out of stock

3

EMBLEM 2

117-21782-00-00

1
Out of stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

BOLT, SODE COVER

118-21712-00-00

1
Out of stock

6

COVER, SIDE 2

118-21721-00-00

1
Out of stock

7

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

8

BOLT, SODE COVER

118-21712-00-00

1
Out of stock

9

FLAP, REAR

116-21621-00-00

1
Out of stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

SCREW, PAN

98507-06014-00

1

$6.18

In stock

12

REAR CUSHION ASSY

102-22210-00-00

1
Out of stock

13

BOLT,DOME HEAD

90106-10016-00

1
Out of stock

14

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

BAND, BATTERY

118-82131-00-00

—

$20.28

In stock

17

BOLT,HEXAGON

97027-08080-00

—

$3.37

In stock

18

BOLT, FLANGE(2UJ)

95814-08110-00

—

$5.66

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

BOLT(M35)

90101-10776-00

—
Out of stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

EMBLEM

117-21787-00-00

1
Out of stock

25

WASHER,SPRING

90204-05001-00

1
Out of stock

26

PLUG,SPEC'L SHAPE

90338-09060-00

1
Out of stock

27

PLUG, BLIND

117-21279-00-00

1
Out of stock
