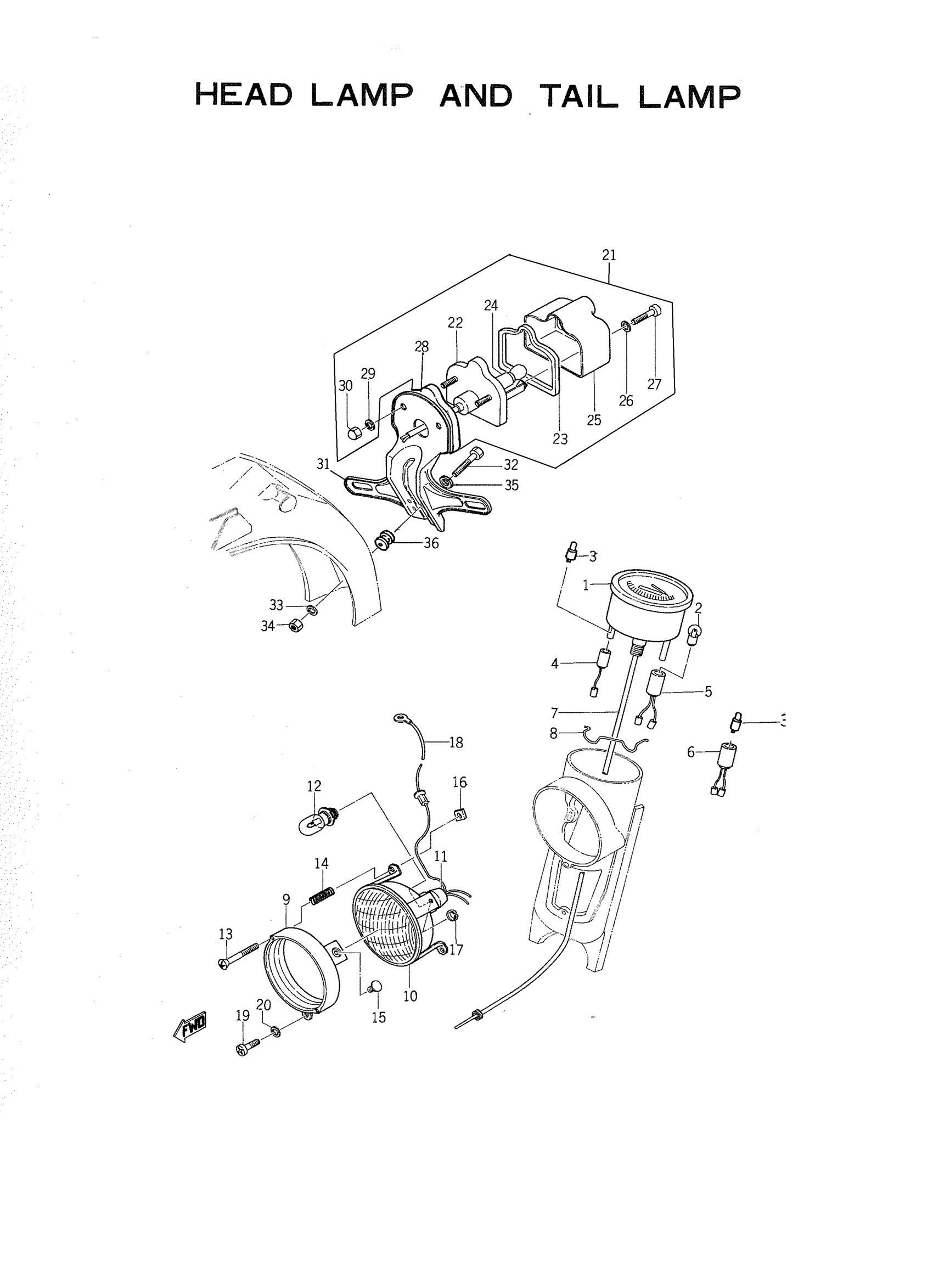

Yamaha U5 (U5) 116 1966 HEADLIGHT - TAILLIGHT Diagram

#

Description

Price

1

SPEEDOMETER ASSEMBLY

116-83510-60-00

Unavailable

2

. BULB

122-83516-20-00

Unavailable

3

BULB,METER(6V1.5W)

104-83517-10-00

$8.99

4

. SOCKET, METER

116-83536-10-00

Unavailable

5

. SOCKET, NEUTRAL

102-83517-00-00

Unavailable

6

. SOCKET, HIGH BEAM

116-83529-00-00

Unavailable

7

SPEEDOMETER CABLE ASSY

241-83550-03-00

$16.49

8

. SPRING, METER

116-83515-00-00

Unavailable

9

RIM, HEADLIGHT

116-84115-60-00

Unavailable

10

LENS ASSEMBLY

116-84120-60-00

Unavailable

11

SOCKET

116-84112-60-00

Unavailable

12

BULB, HL6V15/15W

104-84114-00-XX

Unavailable

13

SCREW, RIM ADJUSTING

116-84331-01-00

Unavailable

14

SPRING, ADJUSTING

116-84132-01-00

Unavailable

15

WASHER,SPECIAL

116-84138-00-00

Unavailable

16

NUT, ADJUST

116-84134-00-00

Unavailable

17

CIRCLIP(6L5)

99080-03600-00

Unavailable

18

WIRE, EARTH

116-84113-00-00

Unavailable

19

SCREW, PAN HEAD

92503-05025-00

Unavailable

20

. WASHER, PLAIN

92990-05200-00

Unavailable

21

TAILLIGHT UNIT ASSEMBLY

117-84510-60-00

Unavailable

22

. BASE, TAILLAMP

117-84511-60-00

Unavailable

23

. SEAT, BASE

124-84512-60-00

Unavailable

24

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

25

. LENS, TAILLIGHT

124-84521-60-00

Unavailable

26

. WASHER

124-84522-60-00

Unavailable

27

SCREW,PAN HEAD

92503-04015-00

Unavailable

28

. COVER, TAIL LAMP

124-84516-00-00

Unavailable

29

WASHER, TOOTH

92990-06300-00

Unavailable

30

. NUT, CROWN

92903-06700-00

Unavailable

31

BRACKET,LICENCE

117-84551-60-81

Unavailable

32

BOLT, FITTING

132-84572-60-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

NUT, HEXAGON

95380-06600-00

Unavailable

35

WASHER, SPECIAL

132-84754-60-00

Unavailable

36

DAMPER

132-84753-60-00

Unavailable
