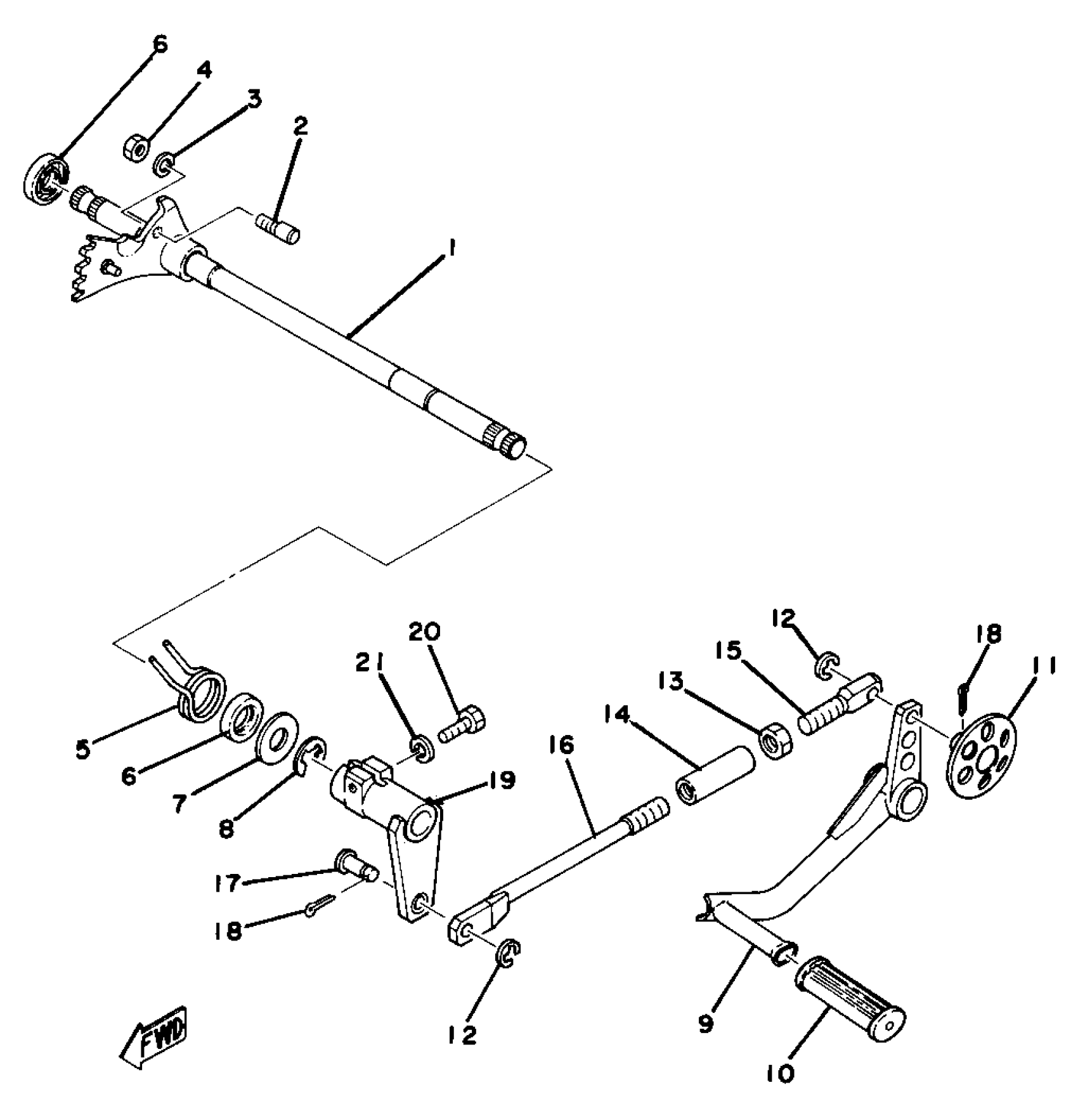

Yamaha TZ750D (TZ750) 1977 SHIFTER 2 Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

(409-18101-01-00)

Unavailable

2

SCREW 214181860000

90149-06017-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

SPRING TORSION 214181240000

90508-32052-00

$7.49

6

SEAL, OIL (30X)

93102-12321-00

$12.49

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99006-10600-00

$9.49

9

PEDAL, SHIFT

(1X2-18111-00-91)

Unavailable

10

COVER

240-18113-00-00

$18.49

11

PIN, LEVER

(1X2-18126-00-00)

Unavailable

12

CIRCLIP (EU0)

99080-04600-00

Unavailable

13

. NUT

95380-08700-00

Unavailable

14

JOINT, ROD 2

(1X2-18117-00-00)

Unavailable

15

JOINT, ROD 1

(1X2-18116-00-00)

Unavailable

16

ROD, SHIFT

(1X2-18115-00-00)

Unavailable

17

PIN, JOINT

(1X2-18118-00-00)

Unavailable

18

PIN, COTTER

91490-20025-00

Unavailable

19

ARM, SHIFT

1X2-18112-00-00

Unavailable

20

BOLT, HEXAGON

97017-06020-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable
