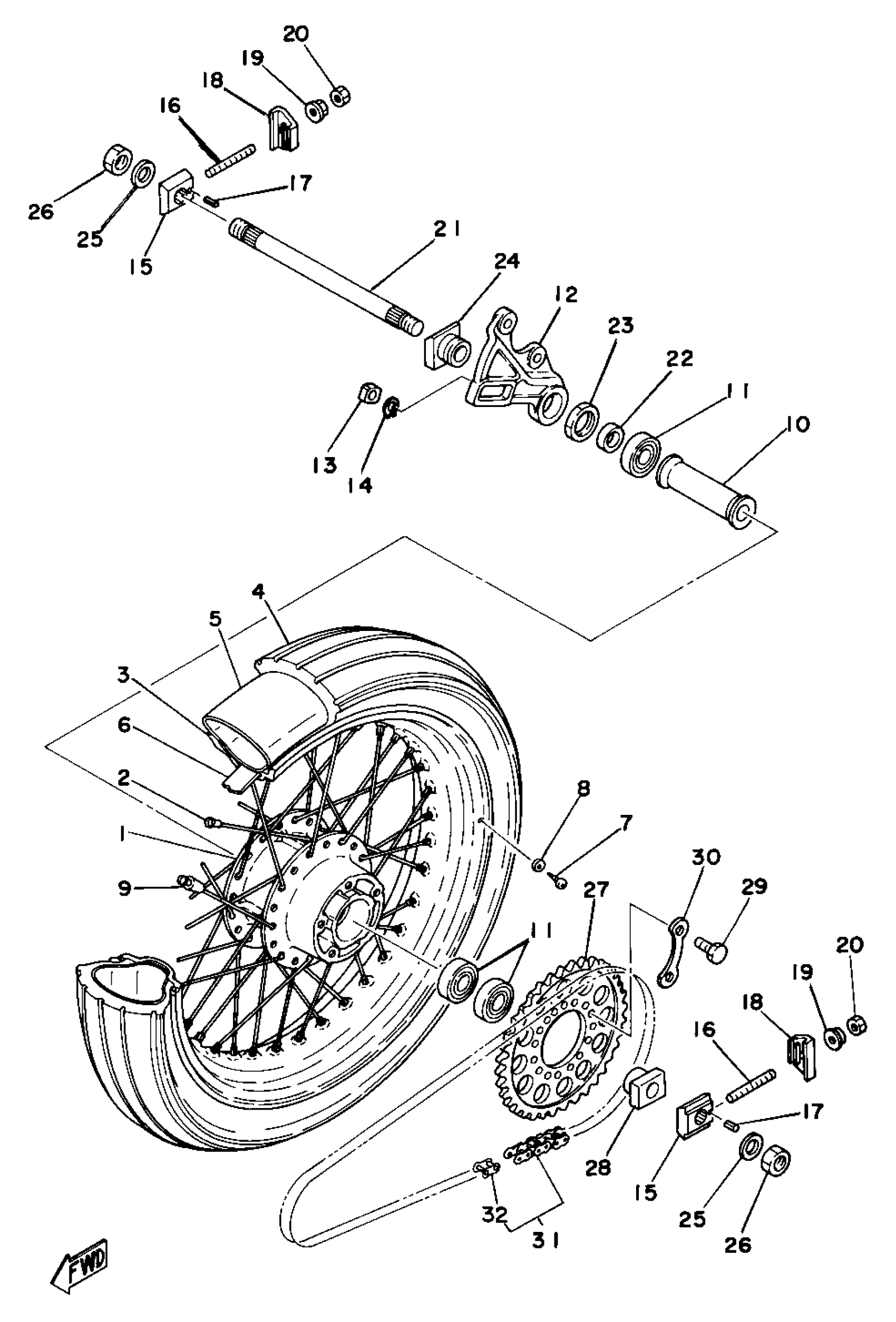

Yamaha TZ750D (TZ750) 1977 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(1X2-25311-00-00)

Unavailable

2

SPOKE SET, REAR

(1X2-25304-00-00)

Unavailable

7

SCREW, TAPPING

97780-40116-00

Unavailable

8

WASHER

90201-04015-00

Unavailable

9

BALANCER, WHEEL

3HT-25398-00-00

$7.99

10

SPACER, BEARING

(1X2-25317-00-00)

Unavailable

11

BEARING (22K)

93306-20446-00

$41.99

12

BRACKET, CALIPER

(1X2-25819-00-00)

Unavailable

13

DAMPER, DISC BRKT

(1X2-25837-00-00)

Unavailable

14

CIRCLIP(24H)

99009-11400-00

$8.49

15

PULLER, CHAIN 1

(1X2-25388-00-00)

Unavailable

16

PULLER, CHAIN 2

(1X2-25389-00-00)

Unavailable

17

PIN, SPRING

91690-30012-00

Unavailable

18

PULLER, CHAIN 2

(1X2-25389-00-00)

Unavailable

19

NUT, FLANGE

95704-08500-00

$8.49

20

. NUT

95380-08700-00

Unavailable

21

AXLE, WHEEL

(1X2-25381-00-00)

Unavailable

22

COLLAR, WHEEL

(1X2-25377-00-00)

Unavailable

23

NUT, SPROCKET AXLE

(1X2-25385-00-00)

Unavailable

24

COLLAR, WHEEL

(1X2-25383-00-00)

Unavailable

25

WASHER, WHEEL

(1X2-25384-00-00)

Unavailable

26

NUT, AXLE

1X2-25382-01-00

Unavailable

27

SPROCKET, DRIVN 37T

(409-25437-00-00)

Unavailable

27

SPROCKET, DRIVN 38T

(409-25438-00-00)

Unavailable

27

SPROCKET, DRIVN 39T

(409-25439-00-00)

Unavailable

27

SPROCKET, DRIVN 40T

(409-25440-00-00)

Unavailable

28

COLLAR, WHEEL

(1X2-25376-00-00)

Unavailable

29

BOLT

(1X2-25411-00-00)

Unavailable

30

WASHER

(409-25412-00-00)

Unavailable

31

UNAVAILABLE IN PRICE BOOK

94580-05100-00

Unavailable

32

. UNAVAILABLE IN PRICE BOOK

94680-05031-00

Unavailable
