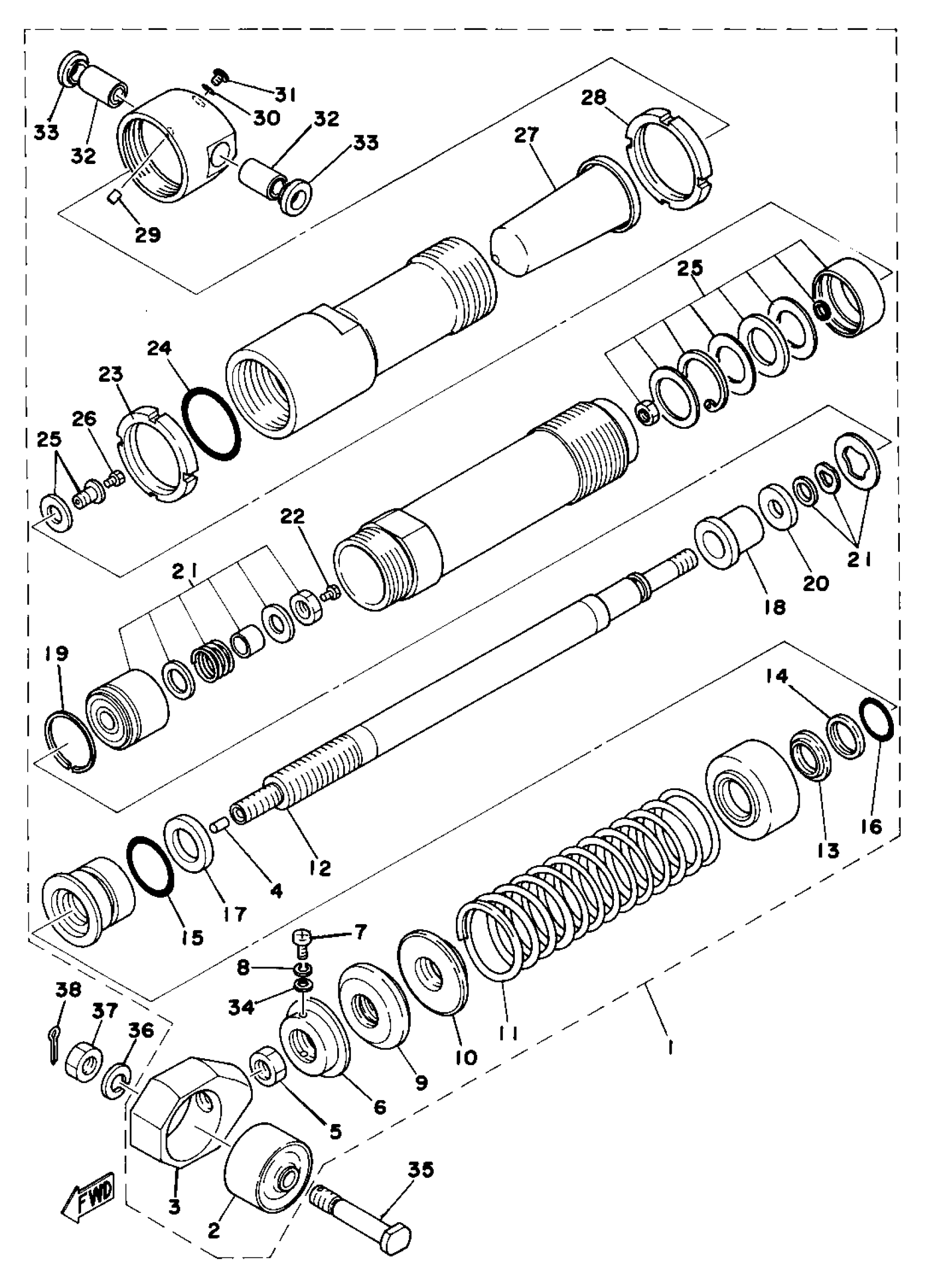

Yamaha TZ750D (TZ750) 1977 REAR CUSHION Diagram

#

Description

Price

1

SHK/ABS ASSEMBLY, REAR

(1X2-22210-00-00)

Unavailable

2

DAMPER 1

(1X2-22483-00-00)

Unavailable

3

BRACKET, UPPER

(1X2-22219-00-00)

Unavailable

4

. VALVE, RUBBER

483-22419-01-00

Unavailable

5

. NUT

95380-14700-00

Unavailable

6

SEAT, SPRING LOWER

(1X2-22223-00-00)

Unavailable

7

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

. DAMPER 2

483-22492-01-00

Unavailable

10

SEAT, SPRING UPPER

(509-22213-01-00)

Unavailable

11

SPRING

(1X2-22212-00-00)

Unavailable

12

ROD, PISTON

(1X2-22481-00-00)

Unavailable

13

. OIL SEAL, SD-TYPE (SD-22-30-55)

93102-22141-00

Unavailable

14

OIL SEAL, SO-TYPE

(93104-22052-00)

Unavailable

15

. O-RING

93210-31264-00

Unavailable

16

O-RING (122)

93210-23029-00

Unavailable

17

DAMPER 1

(483-22483-02-00)

Unavailable

18

STOPPER

(483-22482-01-00)

Unavailable

19

RING, SHK/ABS PSTN

(1X2-22437-00-00)

Unavailable

20

WASHER, PLATE

(90201-12525-00)

Unavailable

21

VALVE SUB ASSEMBLY, BTM

(1X2-22405-00-00)

Unavailable

22

NEEDLE, VALVE

(1X2-22447-00-00)

Unavailable

23

RING, COVER

(1X2-22215-00-00)

Unavailable

24

O-RING (483MXS)

93210-42263-00

Unavailable

25

SPRING SEAT SB/ASSEMBLY

(1X2-22406-00-00)

Unavailable

26

NEEDLE, VALVE

(1X2-22447-50-00)

Unavailable

27

MEMBRANE

(1X2-22413-00-00)

Unavailable

28

RING, COVER

(1X2-22215-20-00)

Unavailable

29

. VALVE, RUBBER

483-22419-01-00

Unavailable

30

O-RING (26H)

93210-06632-00

Unavailable

31

SCREW, BIND(2TV)

98980-06008-00

Unavailable

32

BUSH, BIMETAL SOLID

(90382-12019-00)

Unavailable

33

COVER, THRUST 1

(1X2-22128-00-00)

Unavailable

34

WASHER, PLAIN (646)

92990-05600-00

Unavailable

35

BOLT 2

(1X2-22242-01-00)

Unavailable

36

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

37

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

38

PIN, COTTER

91490-20025-00

Unavailable
