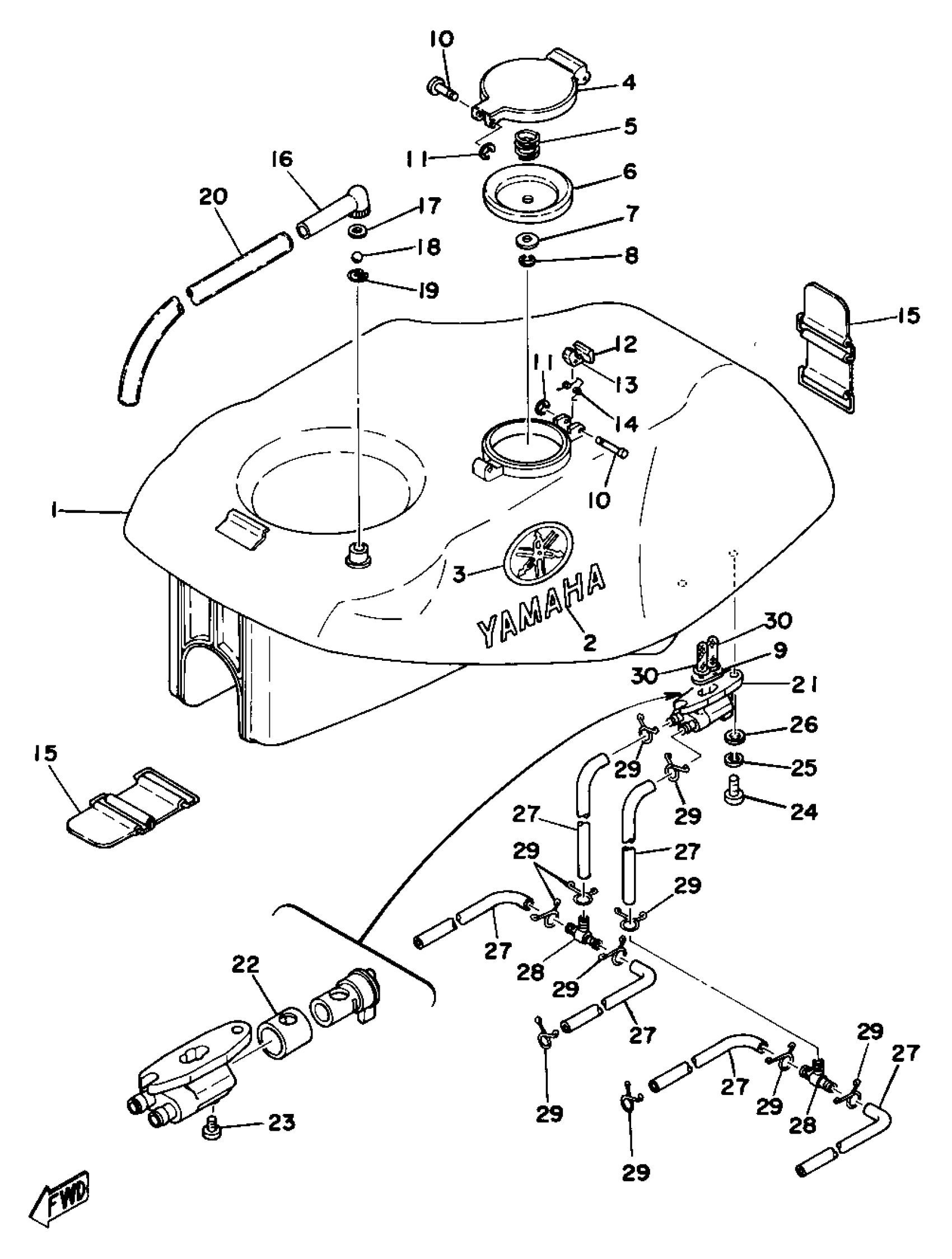

Yamaha TZ750D (TZ750) 1977 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(1X2-24110-00-01)

Unavailable

2

EMBLEM, YAMAHA

99245-00140-00

Unavailable

3

EMBLEM 2

1X2-24162-00-00

Unavailable

4

. BODY, CAP

294-24611-00-00

Unavailable

5

SPRING, CAP

90501-20130-00

$8.49

6

. GASKET, CAP

294-24612-00-00

Unavailable

7

WASHER, PLAIN

92990-08200-00

Unavailable

8

CIRCLIP(53L)

99001-06600-00

$1.01

9

GASKET

(1X2-24512-00-00)

Unavailable

10

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

11

CIRCLIP (604)

93430-02001-00

$8.49

12

HOOK

256-24628-00-00

Unavailable

13

O-RING (26H)

93210-06632-00

$8.49

14

SPRING, TORSION (256-24637-00)

90508-08223-00

Unavailable

15

BAND, TNK FITTING 1

240-24173-00-00

Unavailable

16

NUT, BREATHER

143-24681-00-00

Unavailable

17

GASKET

(90430-10028-00)

Unavailable

18

BALL, VALVE

143-24684-00-00

Unavailable

19

CLIP, BALL HOLDER

143-24685-00-00

Unavailable

20

HOSE (MAXI MAROON)

(90446-06007-00)

Unavailable

21

FUEL COCK ASSEMBLY 1

(1X2-24500-00-00)

Unavailable

23

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

24

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable

27

PIPE, FUEL 1

(1X2-24311-00-00)

Unavailable

28

JOINT, FUEL PIPE

1X2-24376-00-00

Unavailable

29

CLIP

90467-100A1-00

Unavailable

30

NET, FILTER 1

322-24514-00-00

Unavailable
