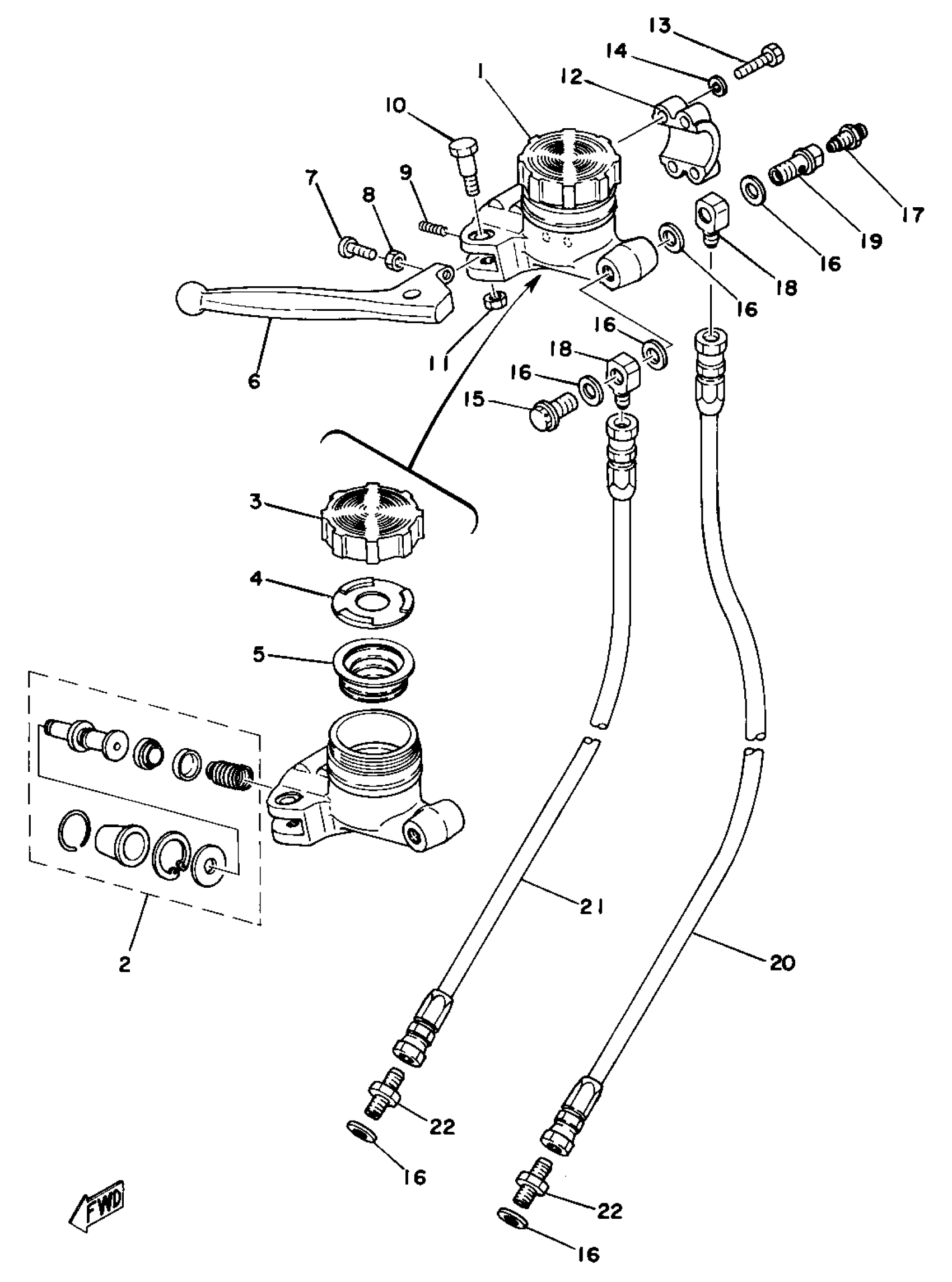

Yamaha TZ750D (TZ750) 1977 FRONT MASTER CYLINDER - BRAKE HOSE Diagram

#

Description
Price

1

HANDLEBAR LH

409-26121-01-00

Unavailable

2

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

3

. CAP, RESERVOIR

341-25852-00-00

Unavailable

4

BUSH, DIAPHRAGM (341-25855-00)

341-25855-30-00

Unavailable

5

. DIAPHRAGM RESERVOR

341-25854-00-00

Unavailable

6

LEVER R

(341-83922-00-00)

Unavailable

7

HOLDER, LEVER 1

(1X2-82811-00-00)

Unavailable

8

NUT HEXAGON 306839270000

90170-06010-00

$8.49

9

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

10

BOLT (4L0)

90109-06577-00

$5.60

11

NUT(650)

95380-06700-00

$8.49

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER, SPRING

92995-06100-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

. SCREW, BLEED

306-25824-00-00

Unavailable

18

BOLT, OIL 1

(1X2-25877-20-00)

Unavailable

19

BOLT, OIL 1

(1X2-25877-20-00)

Unavailable

20

HOSE, BRAKE 1

(1X2-25872-00-00)

Unavailable

21

HOSE, BRAKE 2

(1X2-25873-00-00)

Unavailable

22

JOINT

(1X2-25885-00-00)

Unavailable
