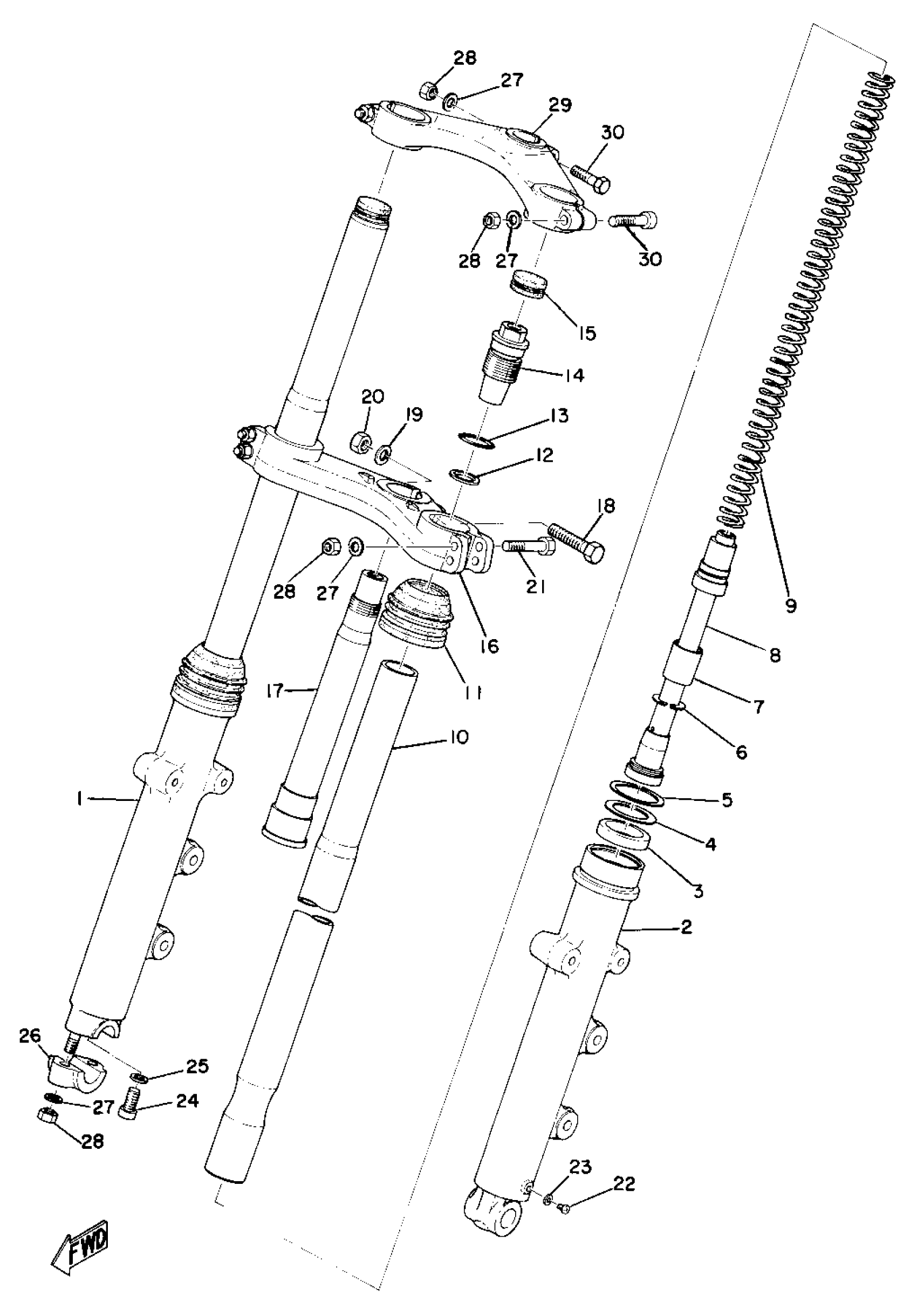

Yamaha TZ750D (TZ750) 1977 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1X2-23101-00-00)

Unavailable

1

TUBE, OUTER 1

(409-23126-00-00)

Unavailable

2

TUBE, OUTER 2

(409-23136-00-00)

Unavailable

3

.. OIL SEAL

341-23145-51-00

Unavailable

4

WASHER, OIL SEAL

341-23146-50-00

$10.99

5

CLIP, OIL SEAL

341-23156-50-00

$32.99

6

. CIRCLIP, INNER

93450-30033-00

Unavailable

7

PISTON, FRONT FORK

(434-23171-00-00)

Unavailable

8

CYLINDER, FRTFRK

(409-23170-01-00)

Unavailable

9

SPRING, FRONT FORK

(409-23141-00-00)

Unavailable

10

TUBE, INNER 1

(409-23124-01-00)

Unavailable

11

. SEAL, DUST

341-23144-50-00

Unavailable

12

. WASHER, SPRING UPR

2F0-23149-00-00

Unavailable

13

. GASKET

214-23114-00-00

Unavailable

14

BOLT, CAP

(409-23111-00-00)

Unavailable

15

CAP, FRONT FORK

(409-23168-00-00)

Unavailable

16

UNDER BRACKET

(409-23340-01-00)

Unavailable

17

SHAFT, STEERING

(409-23341-00-00)

Unavailable

18

BOLT 2

(322-23356-00-00)

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

NUT

(322-23357-00-00)

Unavailable

21

. BOLT 1

5F7-23346-00-00

Unavailable

22

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

22

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

23

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

24

BOLT, HEX SCKT HEAD

(278-23181-L0-00)

Unavailable

25

GASKET

509-23158-L0-00

Unavailable

26

HOLDER,AXLE

341-23167-50-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable

28

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

29

CROWN, HANDLE

(409-23435-01-00)

Unavailable

30

BOLT

90101-08263-00

Unavailable
