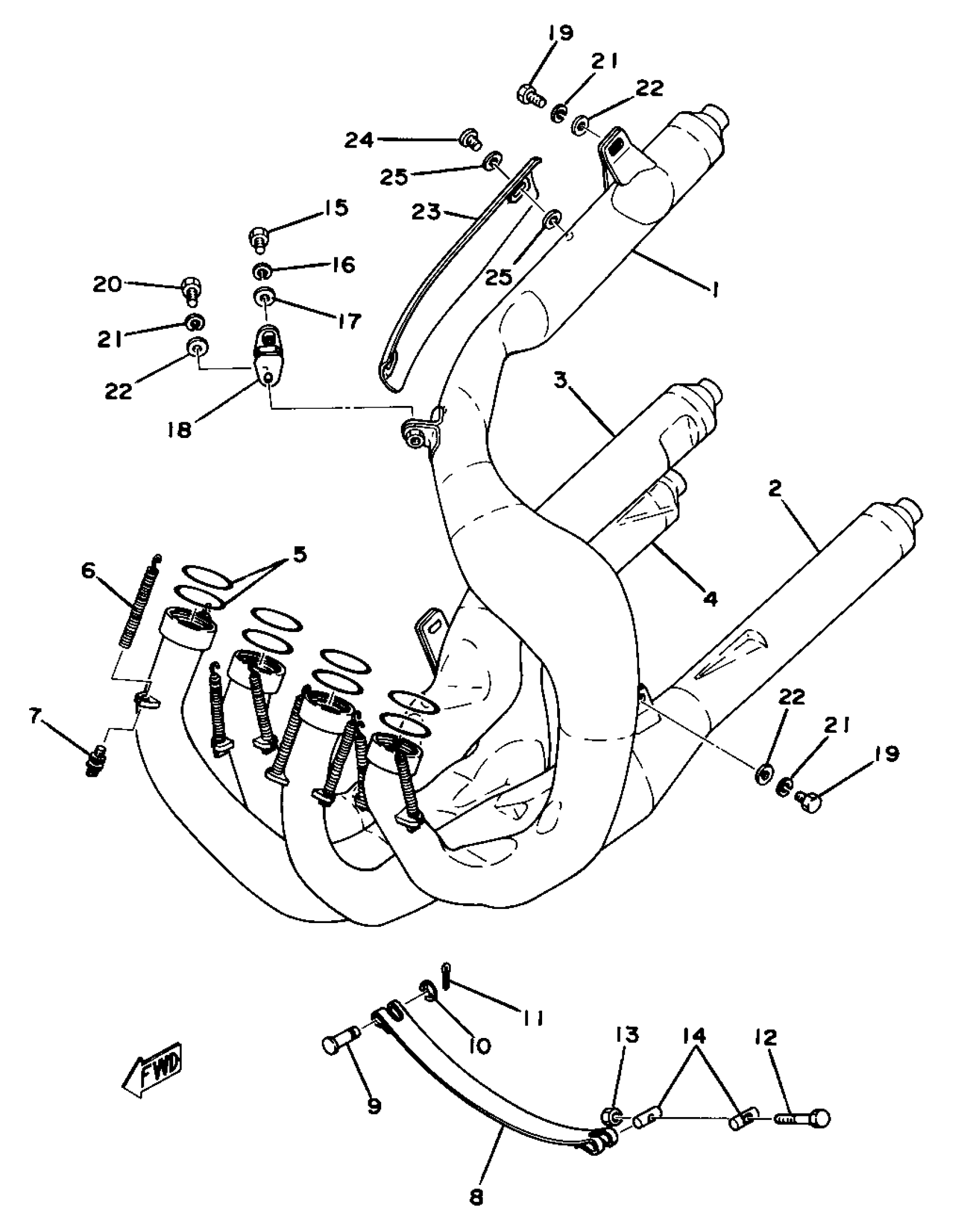

Yamaha TZ750D (TZ750) 1977 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

(1X2-14611-00-00)

Unavailable

2

PIPE, EXHAUST R

(1X2-14621-00-00)

Unavailable

3

PIPE, EXHAUST 3

(1X2-14631-00-00)

Unavailable

4

PIPE, EXHAUST 4

(1X2-14641-00-00)

Unavailable

5

O-RING

93210-48208-00

Unavailable

6

SPRING, TENSION (409-14683-00)

90507-20013-00

Unavailable

7

BOLT, HOOK

409-14684-00-00

Unavailable

8

BAND, MUFFLER

(1X2-14715-00-00)

Unavailable

9

PIN, CLEVIS

(1X2-27237-00-00)

Unavailable

10

CIRCLIP (137)

93430-08007-00

$8.49

11

PIN, COTTER

91490-20025-00

$1.99

12

BOLT

(90101-08299-00)

Unavailable

13

NUT(6L2)

95333-08600-00

$2.49

14

PIN, BRAKE ROD

(1X2-27234-00-00)

Unavailable

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

WASHER, SPRING

92995-06100-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

STAY, MUFFLER 1

565-14771-01-00

Unavailable

19

BOLT, HEXAGON

97013-08020-00

Unavailable

20

BOLT, HEXAGON

97013-08016-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

.. WASHER, PLATE

92990-08600-00

Unavailable

23

PROTECTOR, MUFF 1

(1X2-14718-00-00)

Unavailable

24

SCREW, BIND(1JK)

98980-06010-00

Unavailable

25

WASHER, PLATE(3MB)

90202-05187-00

Unavailable
