1977 Yamaha TZ750 (TZ750D) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1977 Yamaha TZ750 (TZ750D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

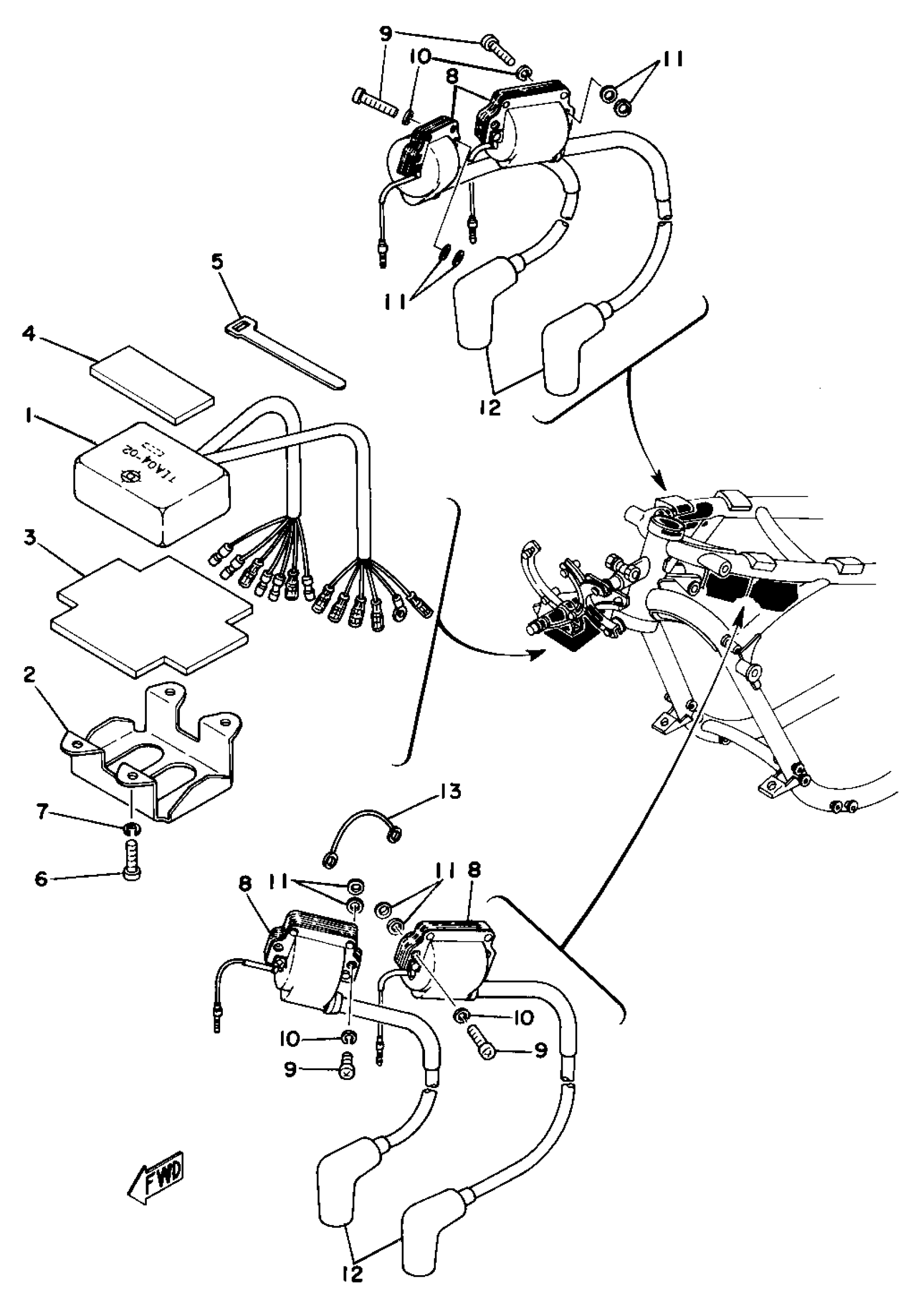

1977 Yamaha TZ750 (TZ750D) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI UNIT ASSEMBLY

(1X2-85540-10-00)

1
Out of stock

2

BRACKET

(1X2-85542-00-00)

1
Out of stock

3

DAMPER

(1X2-85547-00-00)

1
Out of stock

4

DAMPER

(1X2-85547-00-00)

1
Out of stock

5

BAND

341-26397-01-00

1
Out of stock

6

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

IGNITION COIL ASSEMBLY

322-82310-10-00

1
Out of stock

9

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

12

PLUG CAP ASSEMBLY

(1X2-82370-00-00)

1
Out of stock

13

WIRE, EARTH LEAD

5F7-82519-00-00

1
Out of stock
