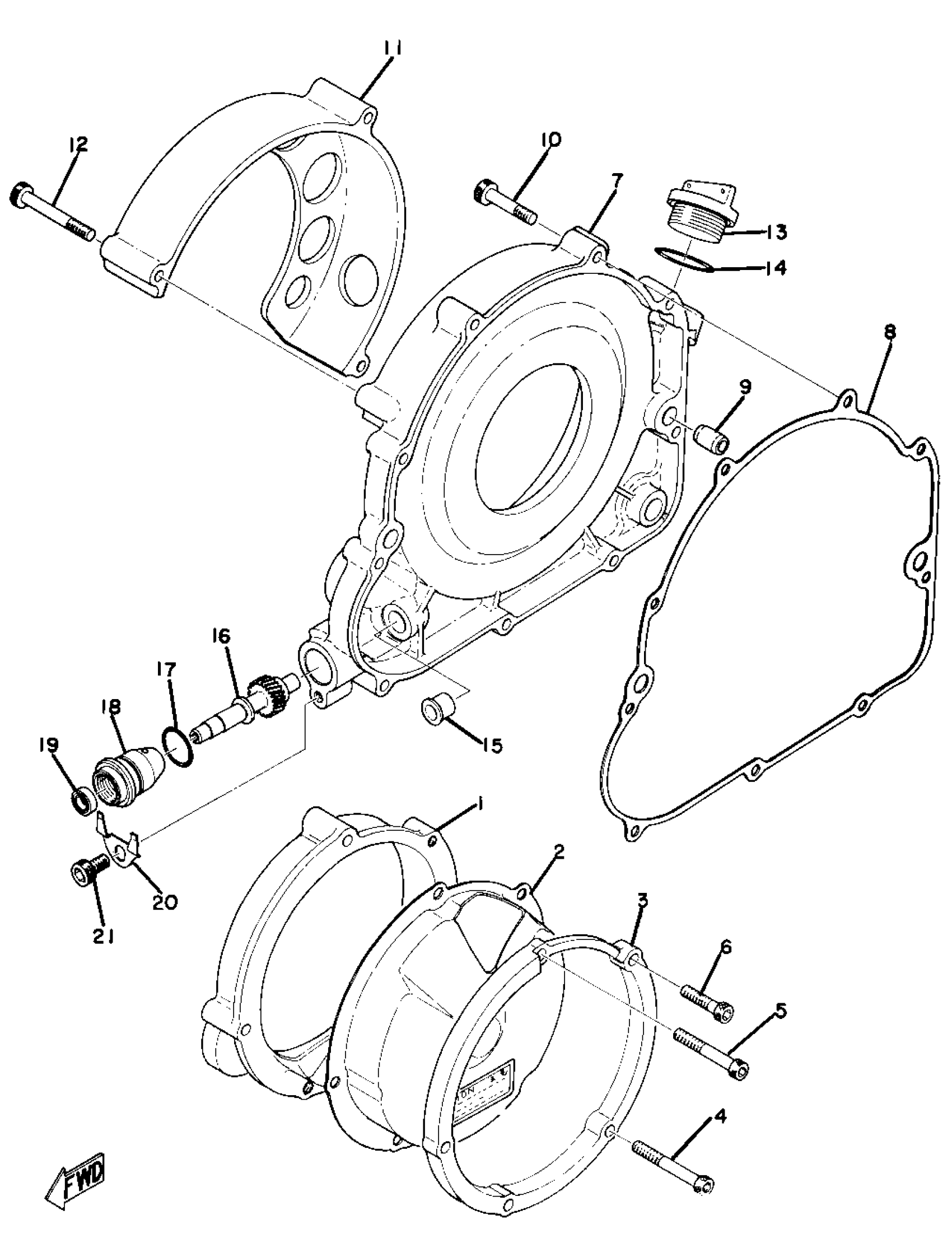

Yamaha TZ750D (TZ750) 1977 CRANKCASE COVER - TACHOMETER GEAR Diagram

#

Description
Price

1

COVER, GENERATOR

(1X2-15415-00-00)

Unavailable

2

GASKET 1

(1X2-15455-00-00)

Unavailable

3

HOLDER

(1X2-15378-00-00)

Unavailable

4

BOLT,SOCKET

91317-06045-00

$4.99

5

BOLT,SOCKET

91317-06040-00

$3.76

6

BOLT,SOCKET

91317-06025-00

$5.60

7

COVER, CRANKCASE R

(409-15421-01-00)

Unavailable

8

GASKET, CRCS CVR 2

409-15461-00-00

Unavailable

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

11

COVER, CAP

(409-15417-00-00)

Unavailable

12

BOLT,SOCKET

91317-06045-00

$4.99

13

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

14

O-RING(1KT)

93210-27778-00

$8.49

15

BUSH (214-17843-00)

90381-08002-00

$11.49

16

GEAR, DRIVEN

(409-17841-00-00)

Unavailable

17

O-RING (1J7)

93210-16314-00

Unavailable

18

HOUSING, TACH GEAR

438-17811-01-00

Unavailable

19

OIL SEAL (7X13X4-256)

93104-07036-00

Unavailable

20

STOPPER

438-17812-00-00

Unavailable

21

BOLT,SOCKET

91317-06012-00

Unavailable
