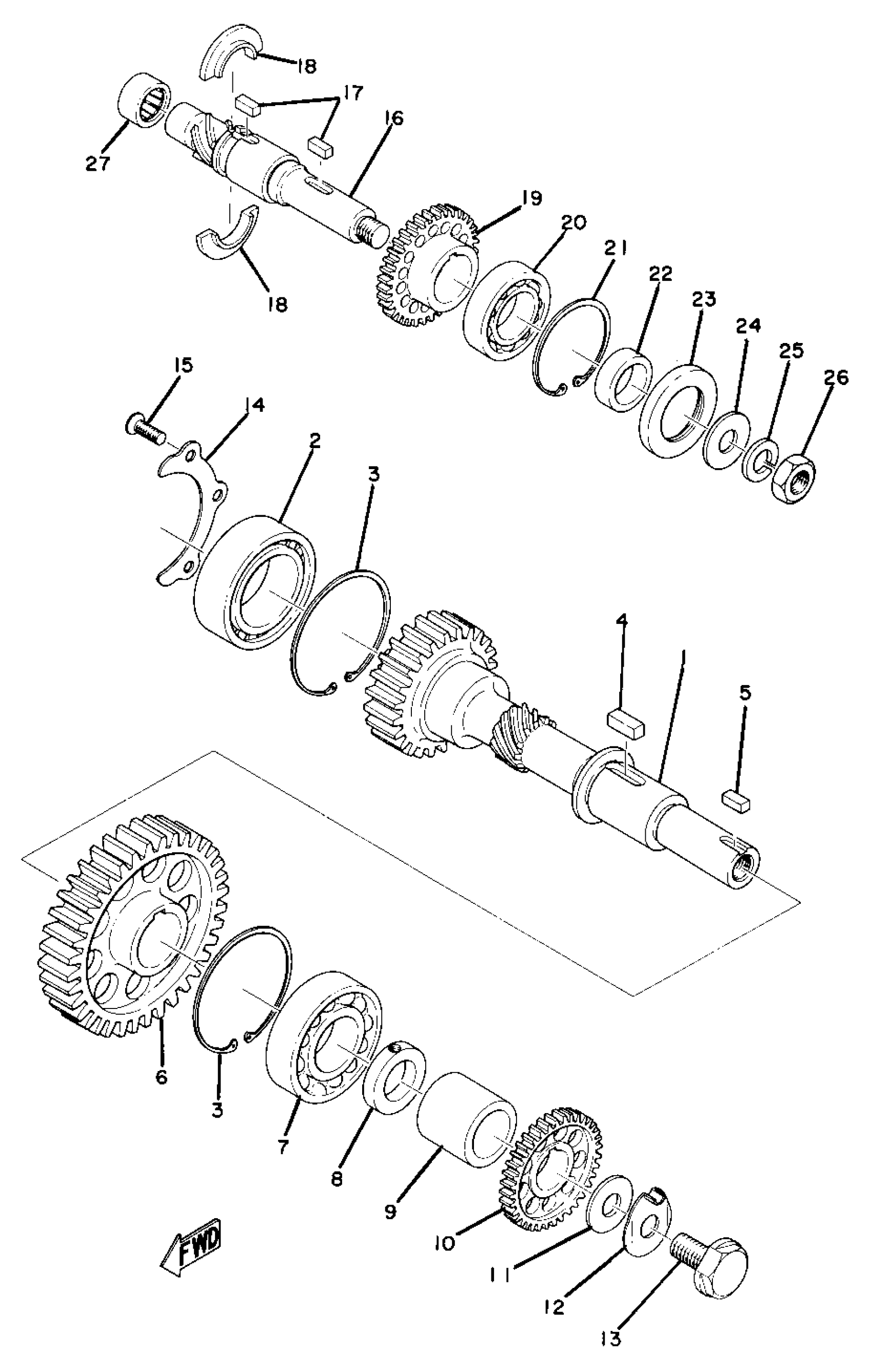

Yamaha TZ750D (TZ750) 1977 COUNTER SHAFT Diagram

#

Description

Price

1

PRI DRV GEAR ASSEMBLY

(409-16110-03-00)

Unavailable

2

BEARING, CYLINDER. #90

(93390-00010-00)

Unavailable

3

CIRCLIP(MF1)

99009-62500-00

$8.49

4

KEY, STRAIGHT (583)

90282-07021-00

$8.49

5

KEY, STRAIGHT

90282-05011-00

Unavailable

6

GEAR, DRIVEN

(409-11537-00-00)

Unavailable

7

BEARING (5X5)

93306-20627-00

$75.99

8

SPACER

(90560-25132-00)

Unavailable

9

SPACER

(90560-25133-00)

Unavailable

10

PLATE, BREATHER 4

(409-11136-01-00)

Unavailable

11

WASHER, PLATE (12.5-30-2.6)

90201-16513-00

Unavailable

12

WASHER, LOCK

(90215-16112-00)

Unavailable

13

BOLT

(90109-16342-00)

Unavailable

14

SHAFT, BREAKER

(409-11156-01-00)

Unavailable

15

SCREW, FLAT

98707-06014-00

$8.49

16

PLATE, BRNG COVER

(409-15381-00-00)

Unavailable

17

KEY, STRAIGHT

90282-05011-00

Unavailable

18

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

19

GEAR, BREAKER DRVN

(409-11137-00-00)

Unavailable

20

BEARING

93306-00505-00

Unavailable

21

CIRCLIP(48Y)

99009-47500-00

Unavailable

22

SPACER

(90560-21057-00)

Unavailable

23

OIL SEAL, S-TYPE

(93101-30066-00)

Unavailable

24

WASHER, PLATE (12.5-30-2.6)

90201-16513-00

Unavailable

25

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

26

NUT, HEXAGON 1371637700

90170-12060-00

Unavailable

27

BRG,CYL-CAL ROLLER 12G KY

93315-21721-00

Unavailable
