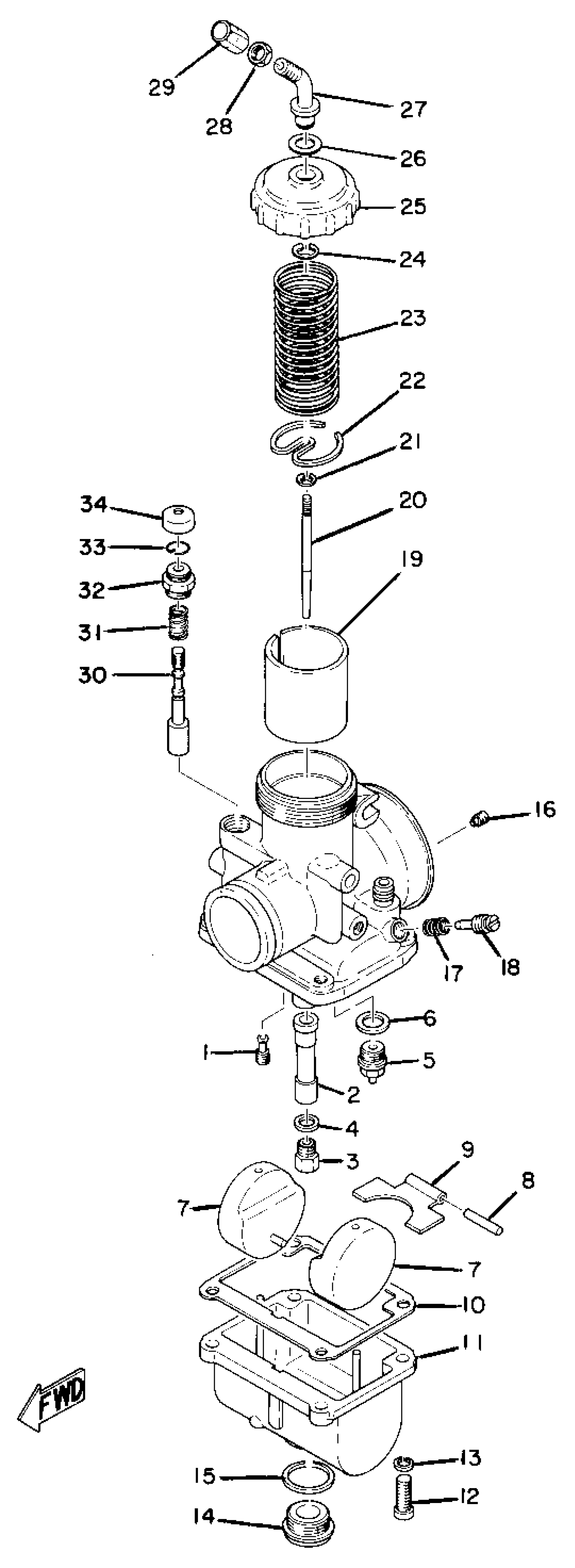

Yamaha TZ750D (TZ750) 1977 CARBURETOR Diagram

#

Description
Price

1

JET, PILOT (# 70)

193-14142-70-00

$10.99

1

CARBURETOR ASSEMBLY 1

(1X2-14101-00-00)

Unavailable

2

NOZZLE, MAIN

(239-14141-34-00)

Unavailable

3

JET, MAIN #310

137-14143-62-A1

Unavailable

3

JET, MAIN #320

137-14143-64-00

Unavailable

3

JET, MAIN #330

137-14143-66-A1

Unavailable

3

JET,MAIN #340

137-14143-68-00

$9.99

3

JET,MAIN #350

137-14143-70-00

$6.99

4

WASHER,MAIN JET

137-14153-00-00

$7.99

5

NEEDLE VALVE SET

24X-14107-33-00

$50.99

6

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

7

. FLOAT

310-14185-00-00

Unavailable

8

PIN, FLOAT

127-14186-00-00

$6.65

9

ARM, FLOAT

(239-14187-00-00)

Unavailable

10

GASKET, FLOAT CHAMBER

483-14184-00-00

$22.99

11

BODY, FLOAT CHMBR 1

(239-14181-00-00)

Unavailable

12

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

13

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

14

PLUG, SCREW

(239-14115-00-00)

Unavailable

15

. WASHER, PLUG SCREW

239-14117-00-00

Unavailable

16

JET, AIR (#2.0)

239-14172-20-00

Unavailable

17

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

18

AIR SCREW SET

23X-14104-00-00

Unavailable

19

VALVE, THROTTLE 1

(328-14112-20-00)

Unavailable

20

NEEDLE

(239-14116-07-00)

Unavailable

21

CLIP

3FA-14137-00-00

Unavailable

22

. SEAT, SPRING

239-14136-00-00

Unavailable

23

SPRING, THRTL VALVE

(409-14131-00-00)

Unavailable

24

CLIP

363-14137-00-00

Unavailable

25

TOP, MIXING CHAMBER

(409-14158-00-00)

Unavailable

26

GASKET

363-14198-00-00

Unavailable

27

. GUIDE, CABLE

363-14155-00-00

Unavailable

28

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

29

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

30

PLUNGER, STARTER

(1G8-14171-00-00)

Unavailable

31

SPRING, PLUNGER

156-14135-00-00

Unavailable

32

CAP, PLUNGER

152-14174-00-00

Unavailable

33

CLIP, PLUNGER

353-14138-00-00

Unavailable

34

. COVER, PLUNGER CAP

637-14173-00-00

Unavailable
