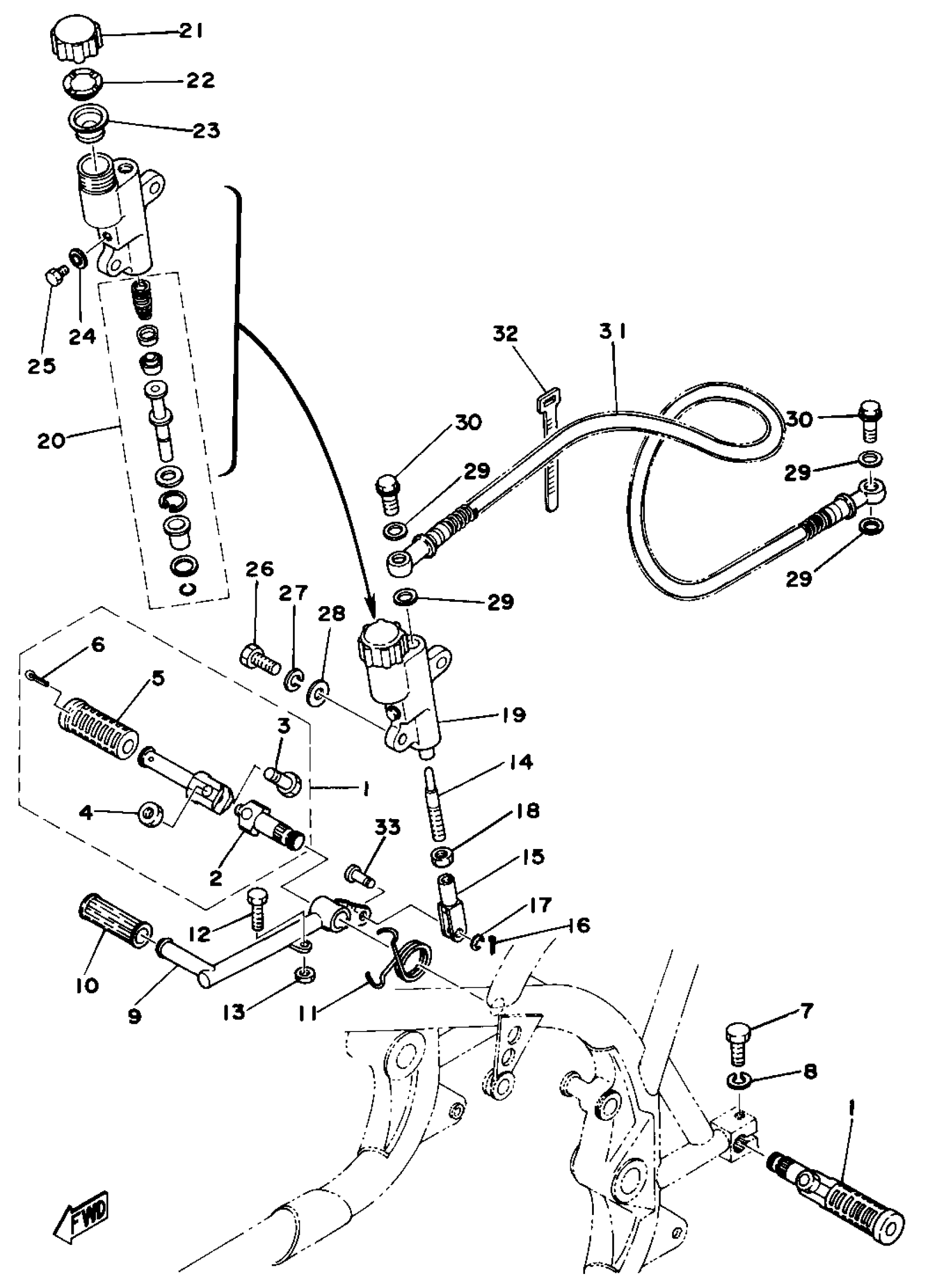

Yamaha TZ750D (TZ750) 1977 BRAKE PEDAL - REAR MASTER CYLINDER Diagram

#

Description
Price

1

FRT FOOTREST ASSEMBLY L

(1X2-27410-01-00)

Unavailable

2

BRACKET, FOOTREST 1

(1X2-27412-01-00)

Unavailable

3

BOLT

(90109-08372-00)

Unavailable

4

. NUT

95380-08700-00

Unavailable

5

. COVER, FOOTREST

1X2-27413-00-00

Unavailable

6

PIN, COTTER

91490-30030-00

$8.49

7

BOLT, HEXAGON

97301-08022-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

PEDAL, BRAKE

(1X2-27211-01-00)

Unavailable

10

COVER

240-18113-00-00

$18.49

11

SPRING, BRAKE PEDAL

(1X2-27216-00-00)

Unavailable

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

NUT(650)

95380-06700-00

$8.49

14

ROD, BRAKE

(1X2-27231-00-00)

Unavailable

15

JOINT

(409-27222-00-00)

Unavailable

16

PIN, COTTER

91490-20025-00

Unavailable

17

CIRCLIP(53L)

99001-06600-00

Unavailable

18

. NUT

95380-08700-00

Unavailable

19

MSTR CYLINDER ASSEMBLY

(1X2-25850-50-00)

Unavailable

20

. CYLINDER KIT, MASTER

1X2-W0042-01-00

Unavailable

21

CAP, RESERVOIR

(1X2-25852-50-00)

Unavailable

22

BUSH, DIAPHRAGM

(1X2-25855-50-00)

Unavailable

23

DIAPHRAGM RESERVOR

(1X2-25854-50-00)

Unavailable

24

WASHER, OIL BOLT

(1X2-25878-00-00)

Unavailable

25

GASKET, EXHAUST

98507-05008-00

Unavailable

25

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

26

BOLT, HEXAGON

97013-08020-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

28

.. WASHER, PLATE

92990-08600-00

Unavailable

29

WASHER, PLATE(481)

90201-10118-00

Unavailable

30

BOLT, OIL 1

(1X2-25877-00-00)

Unavailable

31

HOSE, BRAKE 1

(409-25872-54-00)

Unavailable

32

BAND

341-26397-01-00

Unavailable

33

PIN, SPEC''L SHAPE

(90249-08085-00)

Unavailable
