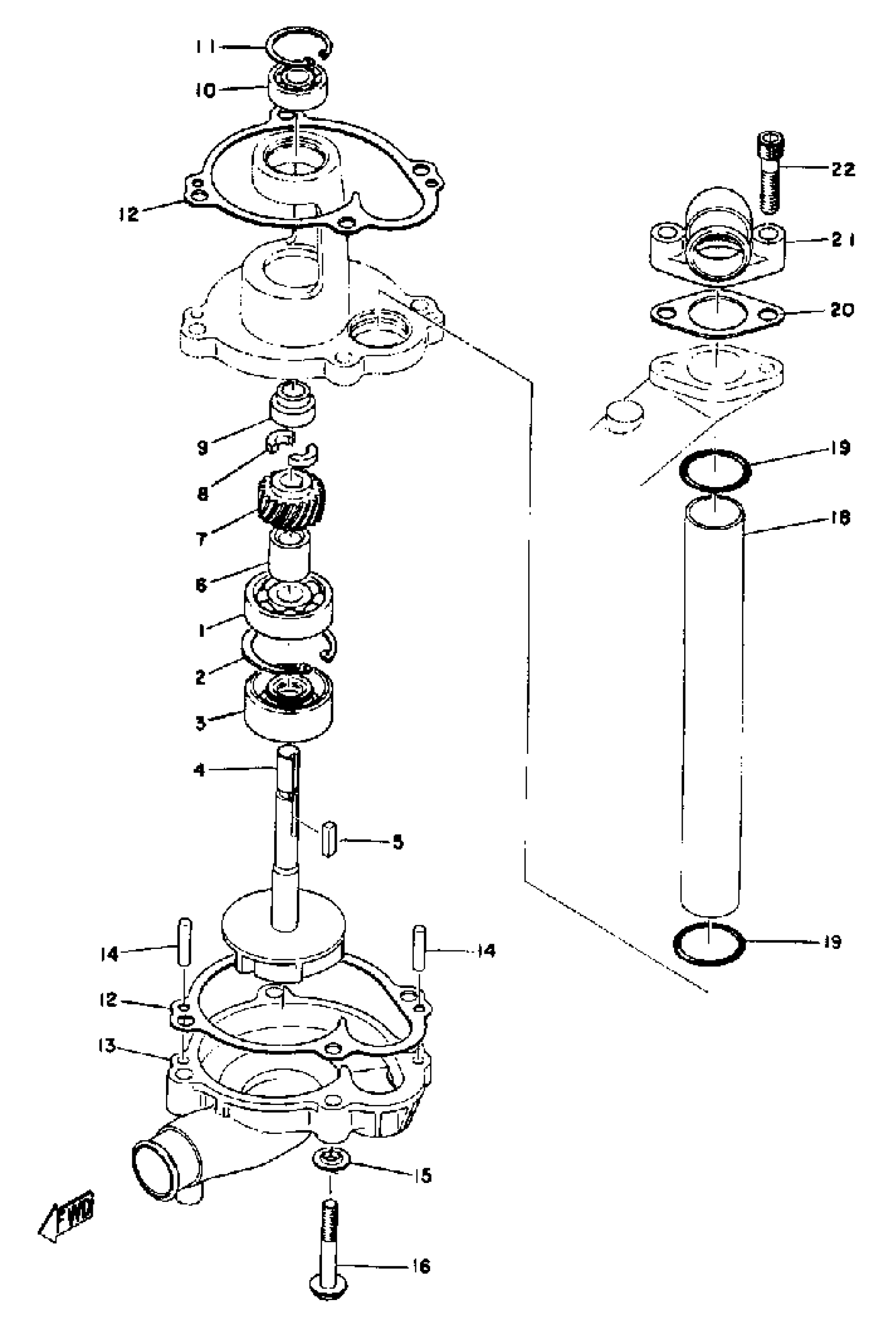

Yamaha TZ750A (TZ750) 1974 WATER PUMP Diagram

#

Description

Price

1

WATER PUMP ASSEMBLY

(409-12420-02-00)

Unavailable

1

GEAR, IMPELLER SHAF

(409-12459-01-00)

Unavailable

1

JOINT

(409-12479-03-00)

Unavailable

1

O-RING (688)

93210-20M28-00

Unavailable

1

BEARING (3R0)

93306-20009-00

$44.99

2

CIRCLIP(46T)

99009-32500-00

$7.49

3

OIL SEAL

93103-10011-00

$46.99

4

IMPELLER SHAFT ASSEMBLY

(409-12450-02-00)

Unavailable

5

KEY, STRAIGHT

(90282-03012-00)

Unavailable

6

COLLAR

(90387-08267-00)

Unavailable

7

GEAR, IMPELLER SHAF

(409-12459-01-00)

Unavailable

8

PLATE, CRTRGE INNER

(383-12424-00-00)

Unavailable

9

CARTRIDGE, WTR PUMP

(383-12423-00-00)

Unavailable

10

BEARING

93300-60801-00

$21.99

11

CIRCLIP, R-TYPE

93420-22026-00

Unavailable

12

GASKET,HSNG CVR 1

409-12427-01-00

Unavailable

13

COVER, HOUSING

(409-12422-00-00)

Unavailable

14

PIN, DOWEL(4SS)

93604-18251-00

Unavailable

15

WASHER, SEAL (7G5)

90210-06006-00

Unavailable

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

18

TUBE, STRUCTURE

(90440-20002-00)

Unavailable

19

O-RING (601)

93210-20027-00

Unavailable

20

GASKET

409-15457-01-00

Unavailable

21

JOINT

(409-12479-02-00)

Unavailable

22

BOLT,SOCKET

91317-06025-00

Unavailable
