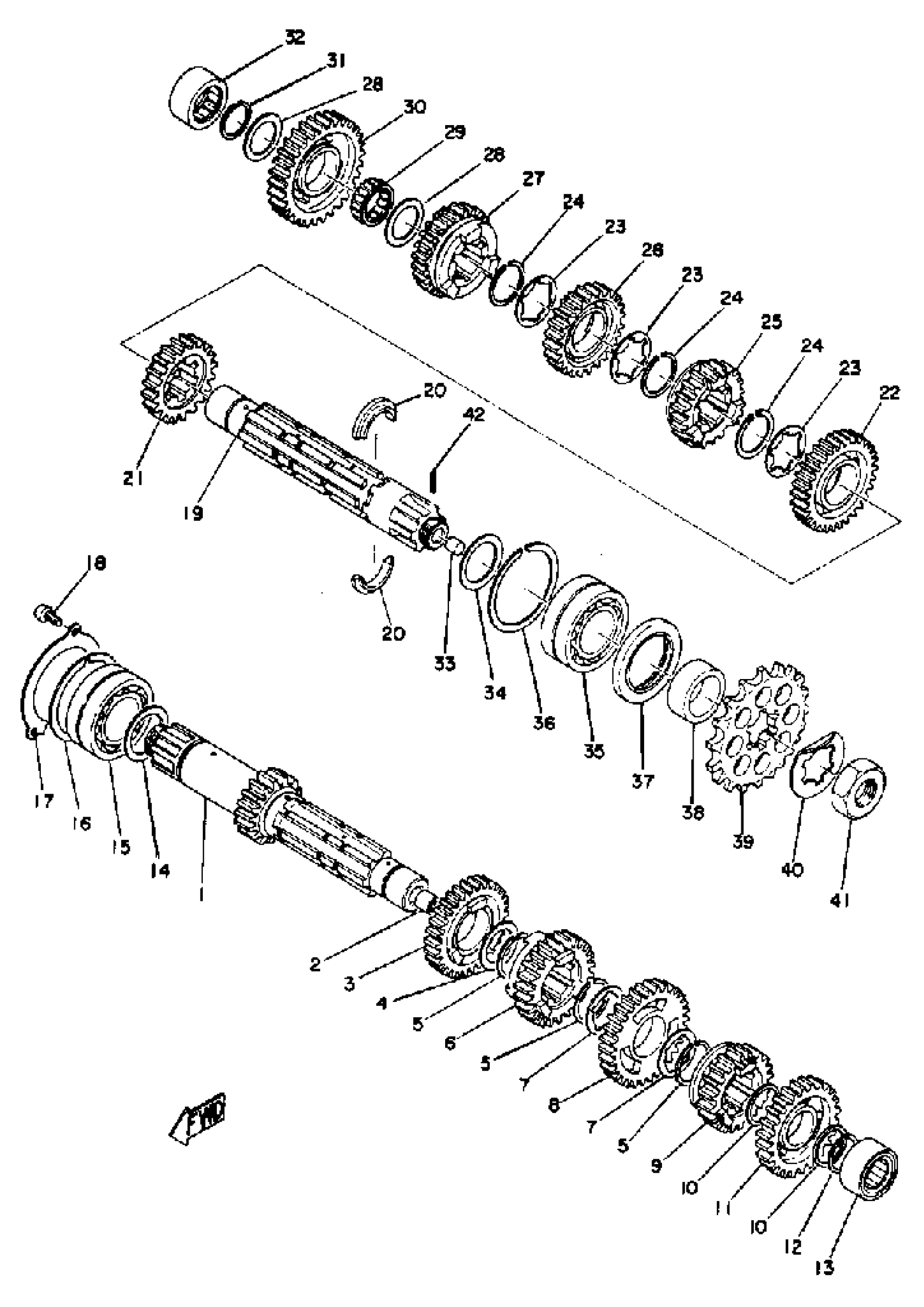

Yamaha TZ750A (TZ750) 1974 TRANSMISSION Diagram

#

Description
Price

1

GEAR, 2ND PINION

(409-17121-02-00)

Unavailable

1

GEAR, 5TH PINION

(409-17151-02-00)

Unavailable

1

AXLE, MAIN

(409-17411-00-00)

Unavailable

2

BUSH, MAIN AXLE

(409-17447-01-00)

Unavailable

3

GEAR, 4TH PINION

(409-17141-00-00)

Unavailable

4

WASHER, PLATE

90201-30398-00

Unavailable

4

WASHER, PLATE

(90201-30399-00)

Unavailable

4

WASHER, PLATE

(90201-30438-00)

Unavailable

5

CIRCLIP, OUTER

(93440-30033-00)

Unavailable

6

GEAR, 3RD PINION

(409-17131-00-00)

Unavailable

7

NO LONGER AVAILABLE

90209-26042-00

Unavailable

7

WASHER, SPEC''L SHAP

(90209-26043-00)

Unavailable

7

WASHER, SPEC''L SHAP

(90209-26060-00)

Unavailable

8

GEAR, 6TH PINION

(409-17161-00-00)

Unavailable

9

GEAR, 2ND PINION

(409-17121-00-00)

Unavailable

10

WASHER PLATE 152172260000

90201-25490-00

Unavailable

11

GEAR, 5TH PINION

(409-17151-00-00)

Unavailable

12

CIRCLIP

93440-25020-00

Unavailable

13

BEARING, CYLINDER.#11

93311-42517-00

Unavailable

14

WASHER, PLATE

(90201-30400-00)

Unavailable

14

WASHER, PLATE

(90201-30401-00)

Unavailable

15

BEARING

93305-20603-00

Unavailable

16

CIRCLIP (409)

93440-62032-00

Unavailable

17

PLATE, BRNG COVER

(409-15383-00-00)

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

AXLE, DRIVE

(409-17421-00-00)

Unavailable

20

SPACER, DRIVE AXLE

(409-17429-00-00)

Unavailable

21

GEAR, 5TH WHEEL

(409-17251-00-00)

Unavailable

22

GEAR, 2ND WHEEL

(409-17221-00-00)

Unavailable

23

WASHER, SPEC''L SHAP

(90209-26042-00)

Unavailable

23

WASHER, SPEC''L SHAP

(90209-26043-00)

Unavailable

23

WASHER, SPEC''L SHAP

(90209-26060-00)

Unavailable

24

CIRCLIP, OUTER

(93440-30033-00)

Unavailable

25

GEAR, 6TH WHEEL

(409-17261-00-00)

Unavailable

26

GEAR, 3RD WHEEL

(409-17231-00-00)

Unavailable

27

GEAR, 4TH WHEEL

(409-17241-00-00)

Unavailable

28

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

29

BEARING, CYLINDER.#10

(93310-32590-00)

Unavailable

30

GEAR, 1ST WHEEL

(409-17211-00-00)

Unavailable

31

CIRCLIP

93440-25020-00

Unavailable

32

BEARING, CYLINDER.#11

93311-42517-00

Unavailable

33

PLUG, SPECL SHAPE

90338-10040-00

Unavailable

34

WASHER, PLATE

(90201-30400-00)

Unavailable

34

WASHER, PLATE

(90201-30401-00)

Unavailable

35

BEARING

93305-20603-00

Unavailable

36

CIRCLIP (409)

93440-62032-00

Unavailable

37

OIL SEAL, SD-TYPE

(93102-40125-00)

Unavailable

38

COLLAR

(90387-30247-00)

Unavailable

39

SPROCKET, DRIVE

(409-17461-80-00)

Unavailable

40

WASHER, LOCK

90215-26024-00

Unavailable

41

NUT, LOCK (409)

90179-22063-00

Unavailable

42

PIN, SPRING

(91609-20016-00)

Unavailable
