Description

Price

1

BEARING, TAPRD #32

93332-00002-00

Unavailable

2

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

3

COVER, BALL RACE

136-23415-00-00

$8.99

4

NUT

90179-25004-00

$24.99

5

WASHER, SPECIAL SHAPE

90209-14022-00

Unavailable

6

BOLT (322-23451-00)

90109-14235-00

Unavailable

7

HDLBR SMY DMPR ASSEMBLY

(409-23490-01-00)

Unavailable

8

. NUT

95380-08700-00

Unavailable

9

JOINT

(409-23491-00-00)

Unavailable

10

STAY, DAMPER

(409-23495-00-00)

Unavailable

11

BOLT, HEXAGON

97013-08030-00

$2.49

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

NUT(6L2)

95333-08600-00

$2.49

14

BOLT, HEXAGON

97017-08025-00

$10.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

WASHER, PLAIN

92990-08200-00

Unavailable

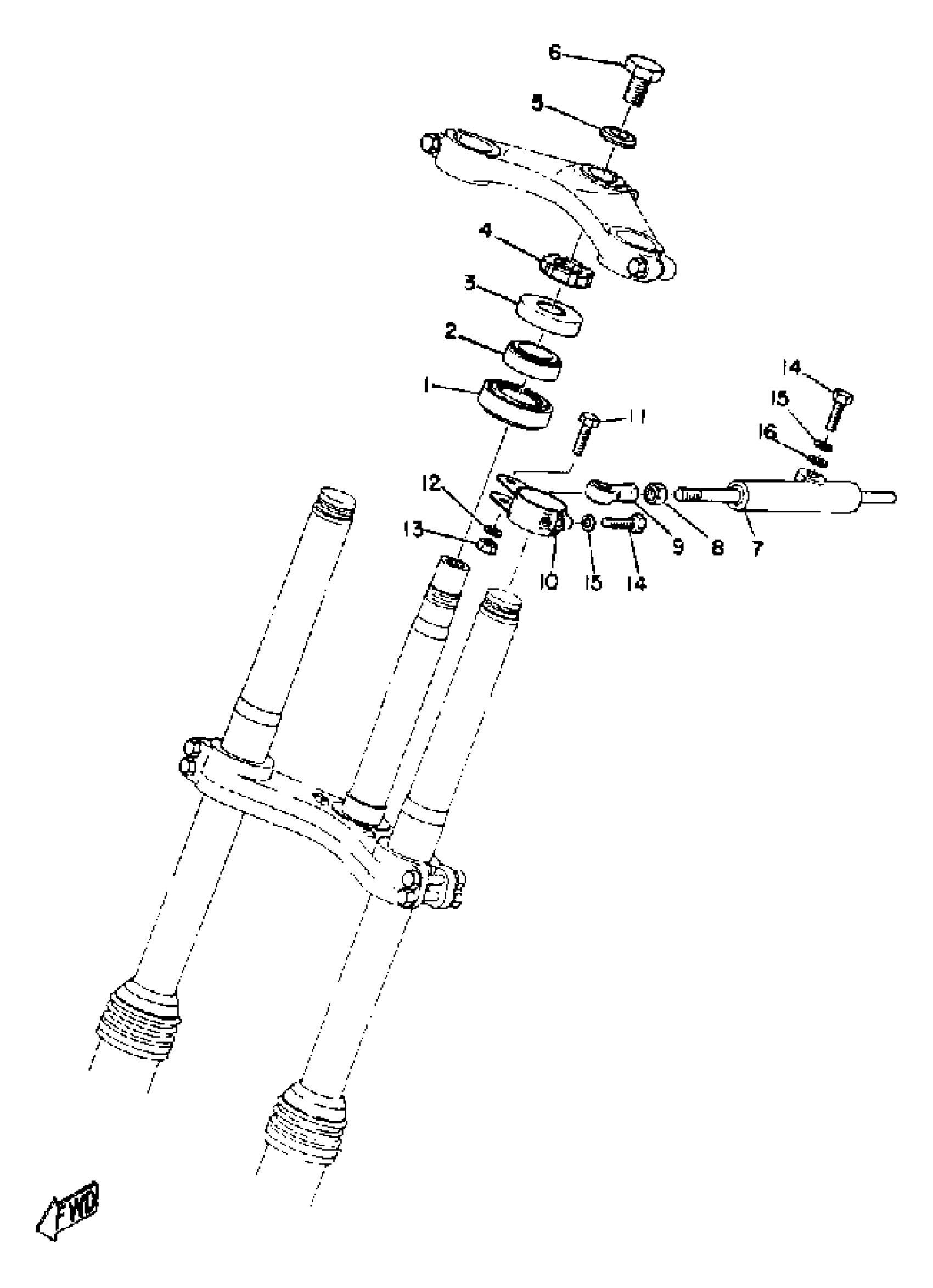

Yamaha TZ750A (TZ750) 1974 STEERING Diagram

BEARING, TAPRD #32

BRG, TAPERED ROLLER (409)

COVER, BALL RACE

NUT

WASHER, SPECIAL SHAPE

BOLT (322-23451-00)

HDLBR SMY DMPR ASSEMBLY

. NUT

JOINT

STAY, DAMPER

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

NUT(6L2)

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

WASHER, PLAIN
