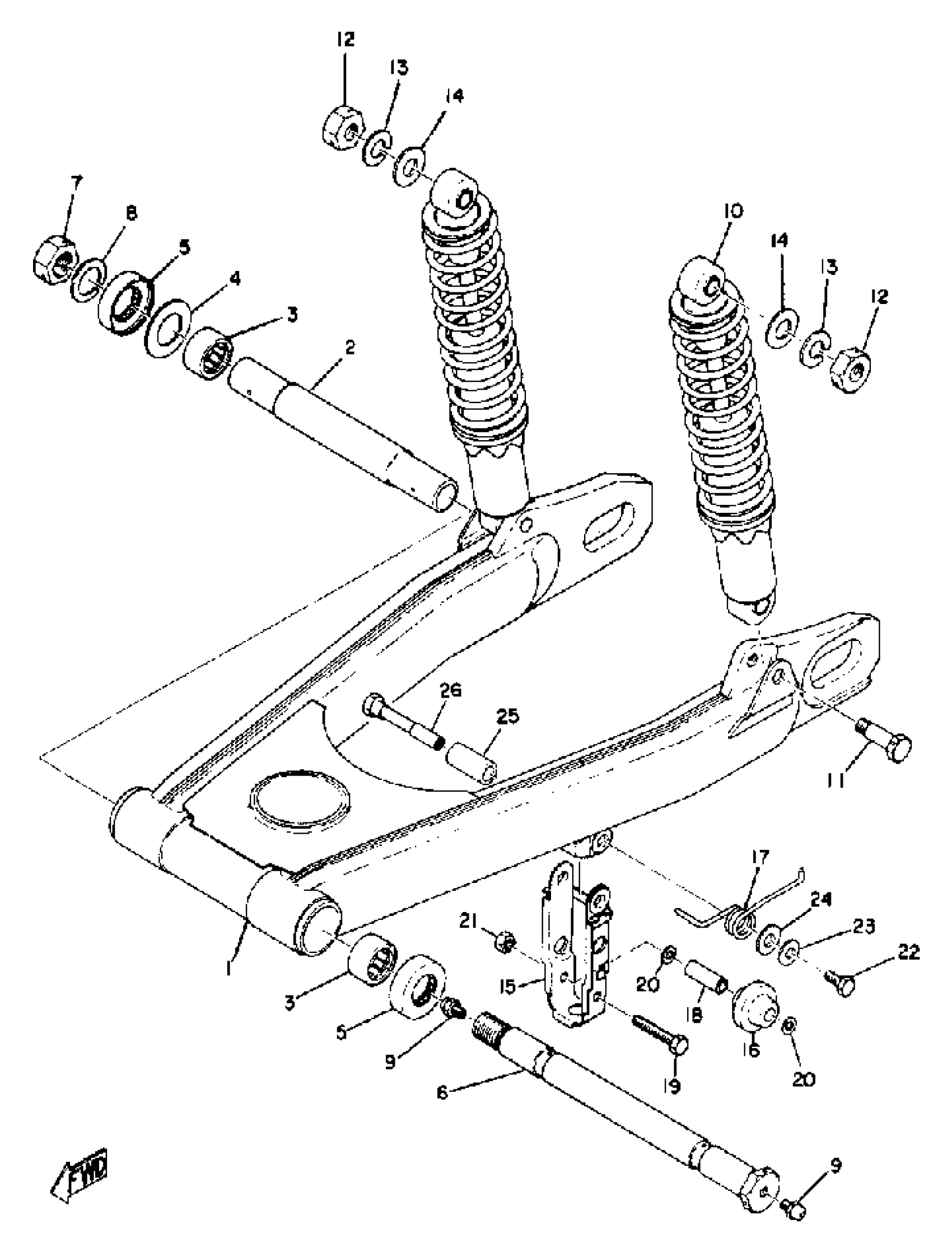

Yamaha TZ750A (TZ750) 1974 REAR ARM - REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(409-22110-01-00)

Unavailable

1

REAR ARM

(409-22110-03-00)

Unavailable

1

BRACKET, CHAIN GARD

(409-22154-02-00)

Unavailable

1

BOLT, HEXAGON

97013-06045-00

$1.11

2

BUSH 2

(409-22124-00-00)

Unavailable

3

BRG,CYL-CAL ROLLER 46.8G NT

93315-42523-00

$30.99

4

SHIM

(611-45567-00-03)

Unavailable

5

BEARING, FLAT #42

(93342-22504-00)

Unavailable

6

SHAFT, PIVOT

(409-22141-00-00)

Unavailable

7

NUT, SPEC''L SHAPE

(90179-18057-00)

Unavailable

8

WASHER(N15)

92907-18100-00

$9.49

9

NIPPLE, GREASE

93700-06M03-00

Unavailable

10

SHK/ABS ASSEMBLY, REAR

(409-22210-02-00)

Unavailable

11

BOLT

(90109-10212-00)

Unavailable

12

NUT, SPEC''L SHAPE

(90179-10119-00)

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

14

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

15

BRACKET, CHAIN GARD

(409-22154-01-00)

Unavailable

16

TENSIONER

(409-22178-00-00)

Unavailable

17

SPRING, TORSION

(90508-32142-00)

Unavailable

18

SPACER

(90560-06058-00)

Unavailable

19

BOLT, HEXAGON

97013-06045-00

$1.11

20

WASHER, PLAIN 2562171501

90201-10123-00

Unavailable

21

NUT, NYLON

95707-06300-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLATE (J10)

90201-06697-00

Unavailable

25

COLLAR

(90387-10382-00)

Unavailable

26

NUT, SPEC''L SHAPE

(90179-06058-00)

Unavailable

27

SHAFT 1

(409-22121-01-00)

Unavailable

28

SPRING, TORSION

(90508-26261-00)

Unavailable

29

BOLT(3RV)

97014-06035-00

Unavailable

30

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

31

NUT, NYLON

95707-06300-00

Unavailable

32

NIPPLE, GREASE

93700-06M03-00

Unavailable
