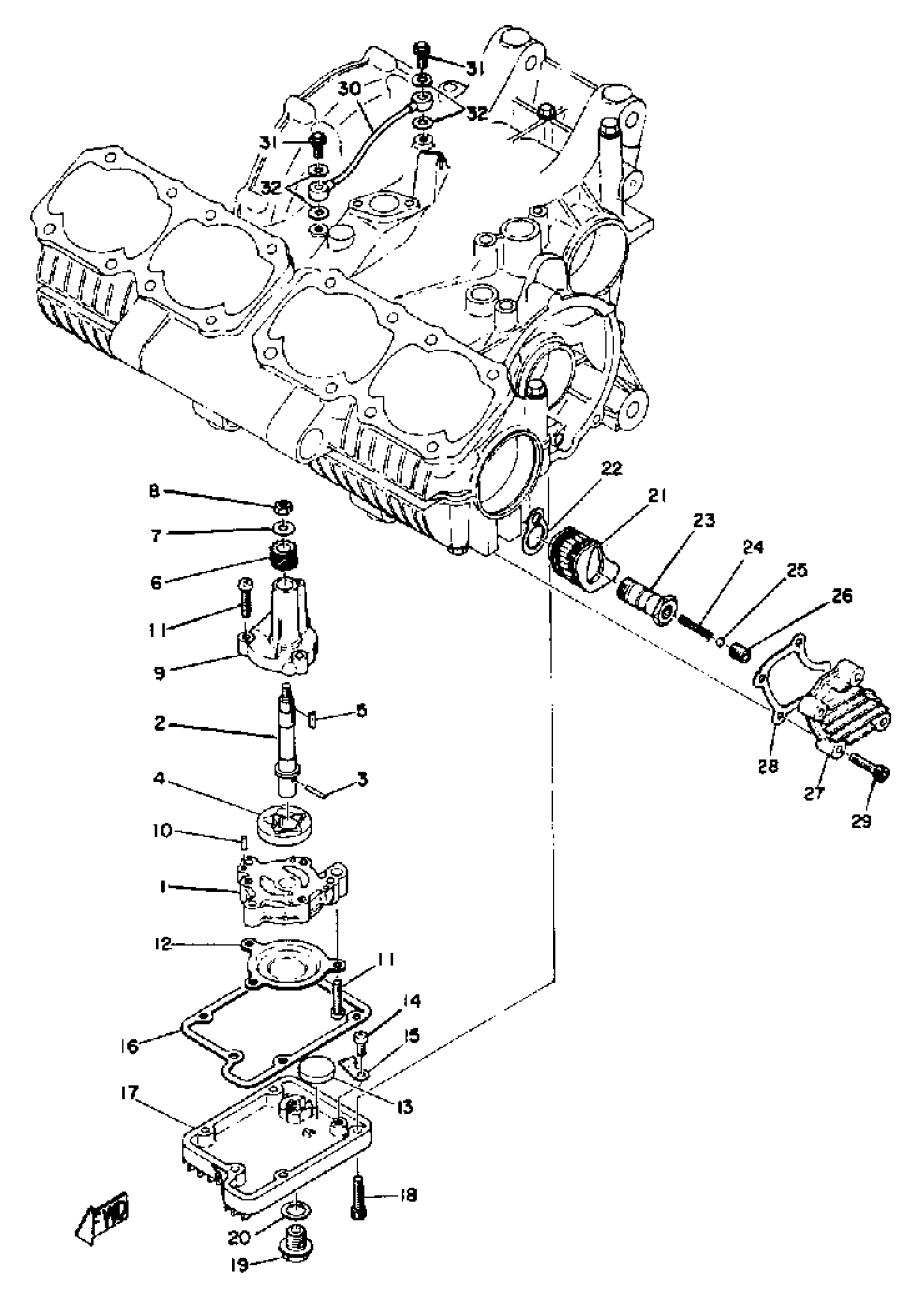

Yamaha TZ750A (TZ750) 1974 OIL PUMP Diagram

#

Description
Price

1

GEAR, PUMP DRIVEN

(409-13325-01-00)

Unavailable

1

HOUSING, ROTOR

(409-13336-00-00)

Unavailable

2

UNAVAILABLE IN PRICE BOOK

1X2-13314-00-00

Unavailable

3

GASKET(3FP)

90430-06224-00

$5.60

3

PIN,DOWEL

93603-17070-00

$4.14

4

. ROTOR ASSEMBLY 1

256-13310-02-00

Unavailable

5

KEY STRAIGHT 383124680000

90282-03012-00

$13.49

6

GEAR, PUMP DRIVEN

(409-13325-00-00)

Unavailable

7

WASHER, PLATE

90201-06045-00

$8.49

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

COVER, PUMP

(409-13316-00-00)

Unavailable

10

PIN,DOWEL (603)

93604-10011-00

$8.49

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

STRAINER, OIL

(409-13411-00-00)

Unavailable

13

PLUG

(371-13419-00-00)

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

WASHER, SPEC''L SHAP

(90209-06048-00)

Unavailable

16

GASKET, 0IL STRAINER COVER

1X2-13414-01-00

Unavailable

17

COVER, STRAINER

(409-13417-00-00)

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

PLUG,STRAIGHT SCRW

90340-14033-00

Unavailable

20

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable

21

COVER, STRAINER

(409-13417-00-00)

Unavailable

22

GASKET, ELEMENT

(409-13445-00-00)

Unavailable

23

BOLT, UNION

(90401-16012-00)

Unavailable

24

SPRING, COMPRESSION

90501-07031-00

Unavailable

25

BALL

93501-04011-00

Unavailable

26

SCREW, SPEC''L SHAPE

90149-10019-00

Unavailable

27

COVER, OIL ELEMENT

(1X2-13447-00-00)

Unavailable

28

GASKET, ELMNT COVER

(409-13449-00-00)

Unavailable

29

BOLT,SOCKET

91317-06025-00

Unavailable

30

PIPE, DELIVERY 1

(409-13161-00-00)

Unavailable

31

BOLT UNION 137131650000

90401-06001-00

Unavailable
