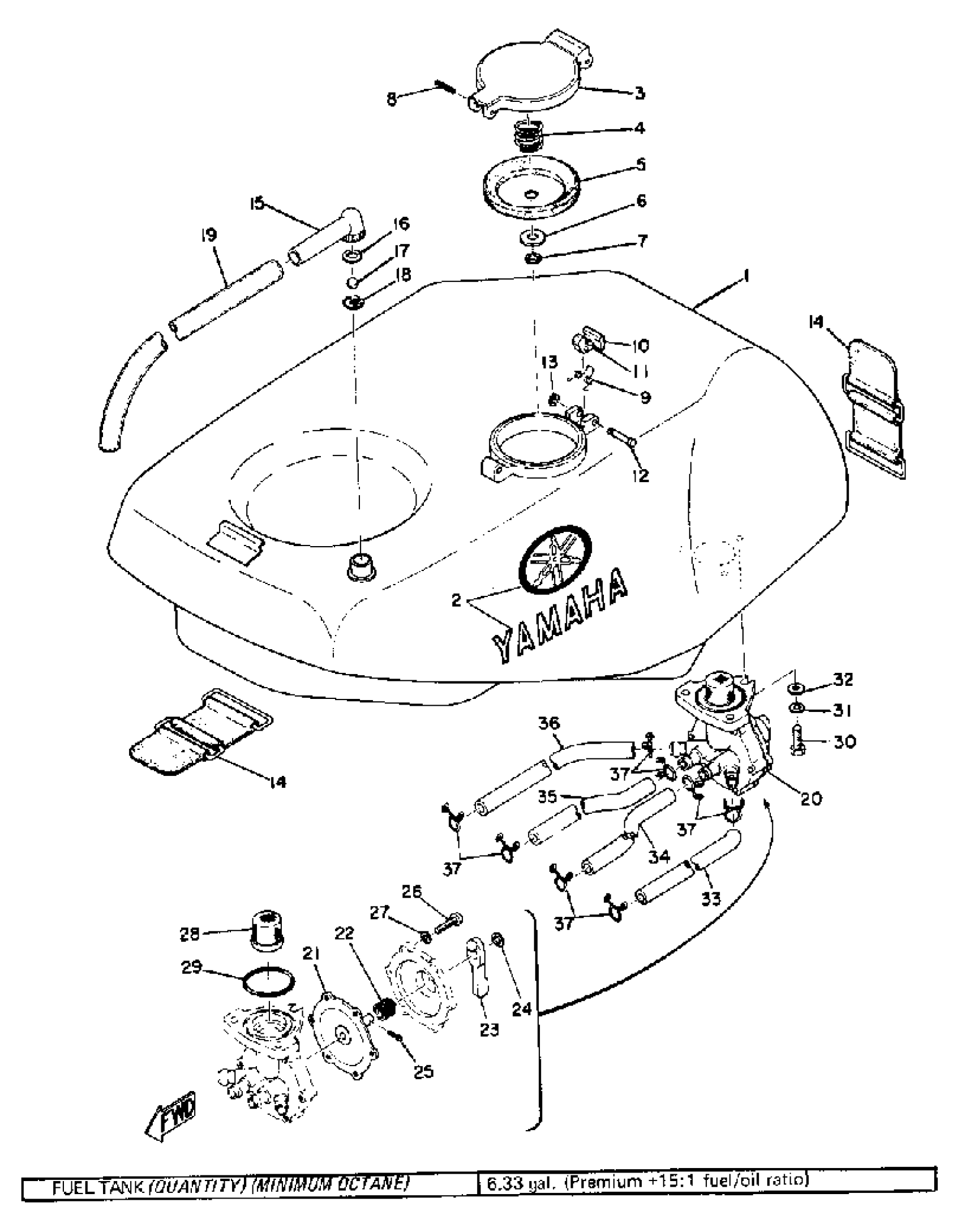

Yamaha TZ750A (TZ750) 1974 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

(409-24110-01-01)

Unavailable

2

EMBLEM 1

240-24161-00-00

Unavailable

3

. BODY, CAP

294-24611-00-00

Unavailable

4

SPRING, CAP

90501-20130-00

$8.49

5

. GASKET, CAP

294-24612-00-00

Unavailable

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

CIRCLIP(53L)

99001-06600-00

$1.01

8

PIN, SPRING (6H4)

91690-30020-00

Unavailable

9

SPRING, TORSION (256-24637-00)

90508-08223-00

Unavailable

10

HOOK

256-24628-00-00

Unavailable

11

O-RING (26H)

93210-06632-00

$8.49

12

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

13

CIRCLIP (604)

93430-02001-00

$8.49

14

BAND, TNK FITTING 1

240-24173-00-00

Unavailable

15

NUT, BREATHER

143-24681-00-00

Unavailable

16

GASKET

(90430-10028-00)

Unavailable

17

BALL, VALVE

143-24684-00-00

Unavailable

18

CLIP, BALL HOLDER

143-24685-00-00

Unavailable

19

HOSE (MAXI MAROON)

(90446-06007-00)

Unavailable

20

FUEL COCK ASSEMBLY 1

(409-24500-00-00)

Unavailable

21

. UNAVAILABLE IN PRICE BOOK

409-24572-00-00

Unavailable

22

SPRING

(409-24529-00-00)

Unavailable

23

LEVER, COCK

(409-24524-00-00)

Unavailable

24

WASHER, WAVE

(409-24518-00-00)

Unavailable

25

PIN COTTER

91490-30025-00

Unavailable

26

SCREW, PAN HEAD

98511-04012-00

Unavailable

27

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

29

GASKET

(409-24512-00-00)

Unavailable

30

BOLT HEXAGON

97001-05018-00

Unavailable

31

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

32

. WASHER, PLAIN

92990-05200-00

Unavailable

33

HOSE (L370)

90445-112E1-00

Unavailable

34

HOSE

90445-11491-00

Unavailable

35

HOSE (L370)

90445-112E1-00

Unavailable

36

HOSE (L370)

90445-112E1-00

Unavailable

37

CLIP

90467-100A1-00

Unavailable
