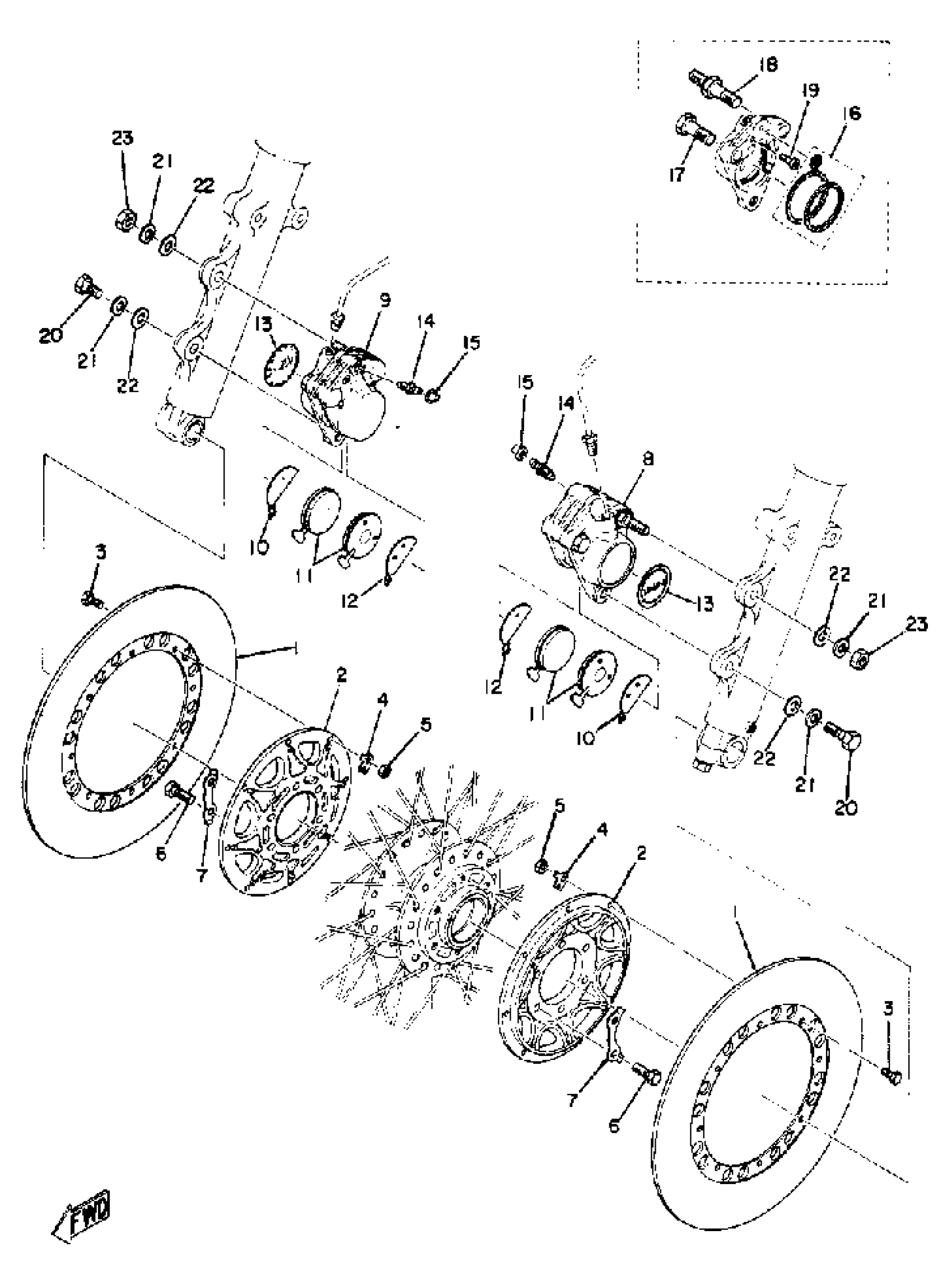

Yamaha TZ750A (TZ750) 1974 FRONT DISC BRAKE-CALIPER Diagram

#

Description

Price

1

. SHIM, CALIPER (306-25827-02)

306-25827-04-00

Unavailable

1

DISC, BRAKE

(409-25831-00-00)

Unavailable

1

. BRAKE PAD KIT, FRNT

409-W0045-00-00

Unavailable

2

BRACKET, DISC

(341-25832-01-00)

Unavailable

3

BOLT 306258330000

90109-06018-00

$10.49

4

WASHER LOCK 306258340000

90215-06106-00

Unavailable

5

NUT, HEXAGON

95380-06600-00

Unavailable

6

BOLT (341-25411-00)

90109-08367-00

Unavailable

7

WASHER, LOCK (447)

341-25412-00-00

$12.99

8

CALIPER ASSEMBLY LH

(409-25810-01-00)

Unavailable

9

CALIPER ASSEMBLY RH

(409-25810-11-00)

Unavailable

10

. SHIM, CALIPER (306-25827-02)

306-25827-04-00

Unavailable

11

. BRAKE PAD KIT, FRNT

409-W0045-00-00

Unavailable

12

. SHIM, CALIPER

306-25828-04-00

Unavailable

13

. EMBLEM, CALIPER

306-25829-00-00

Unavailable

14

. SCREW, BLEED

306-25824-00-00

Unavailable

15

CAP

306-25825-01-00

Unavailable

16

CALIPER SEAL KIT

856-W0047-00-00

Unavailable

17

. BOLT 1

306-25821-01-00

Unavailable

18

. BOLT 2

306-25822-01-00

Unavailable

19

. BOLT 3

306-25826-01-00

Unavailable

20

BOLT

90109-10244-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

23

NUT(3BM)

95314-10600-00

Unavailable
