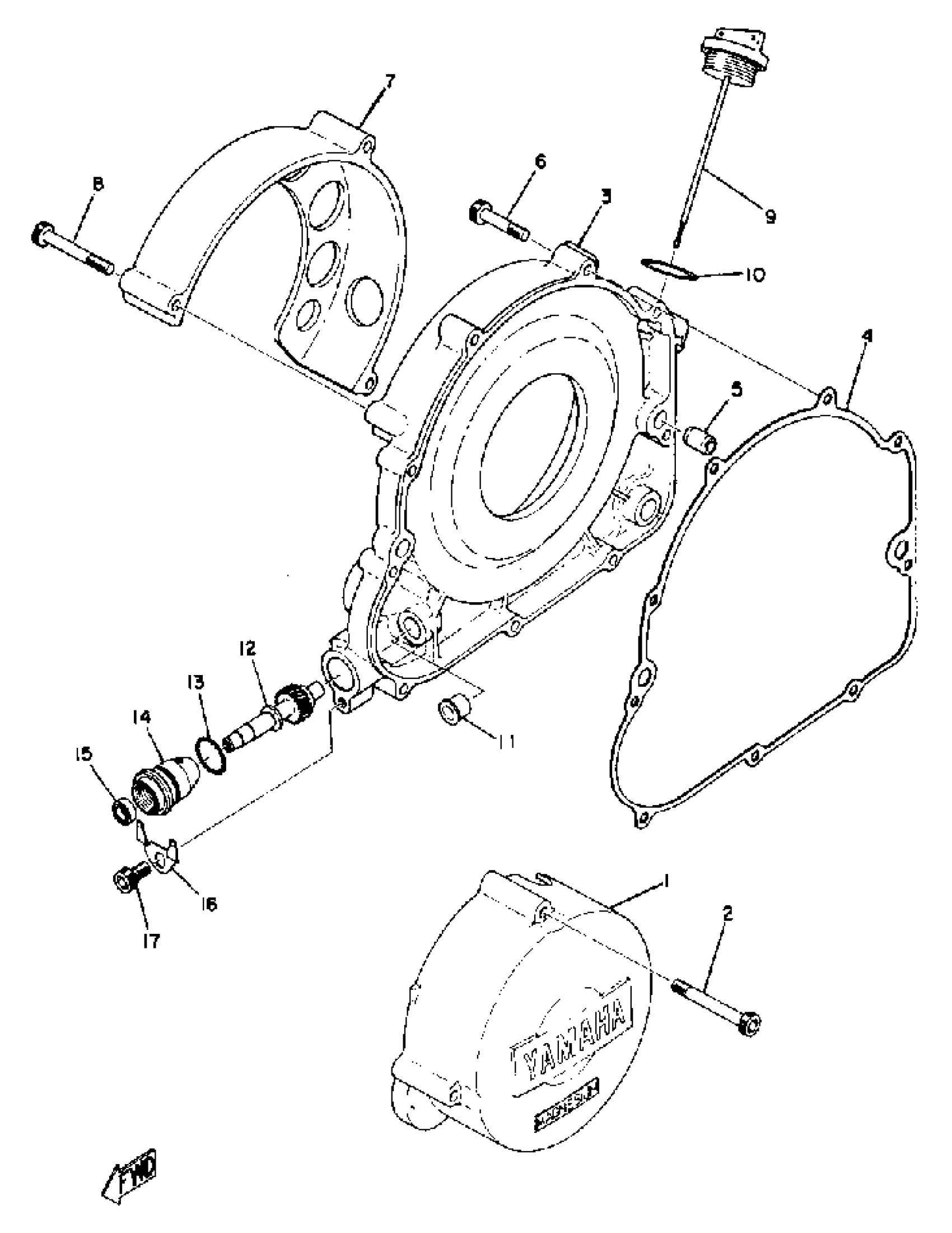

Yamaha TZ750A (TZ750) 1974 CRANKCASE COVER - TACHOMETER GEAR Diagram

COVER, GENERATOR

(409-15415-00-00)

Unavailable

BOLT,SOCKET

91317-06050-00

$3.88

COVER, CRANKCASE R

(409-15421-01-00)

Unavailable

GASKET, CRCS CVR 2

409-15461-00-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

COVER, CAP

(409-15417-00-00)

Unavailable

BOLT,SOCKET

91317-06045-00

$4.99

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

O-RING(1KT)

93210-27778-00

$8.49

BUSH (214-17843-00)

90381-08002-00

$11.49

GEAR, DRIVEN

(409-17841-00-00)

Unavailable

O-RING (1J7)

93210-16314-00

$4.29

HOUSING, TACH GEAR

438-17811-01-00

Unavailable

OIL SEAL (7X13X4-256)

93104-07036-00

Unavailable

STOPPER

438-17812-00-00

Unavailable

BOLT,SOCKET

91317-06012-00

Unavailable
