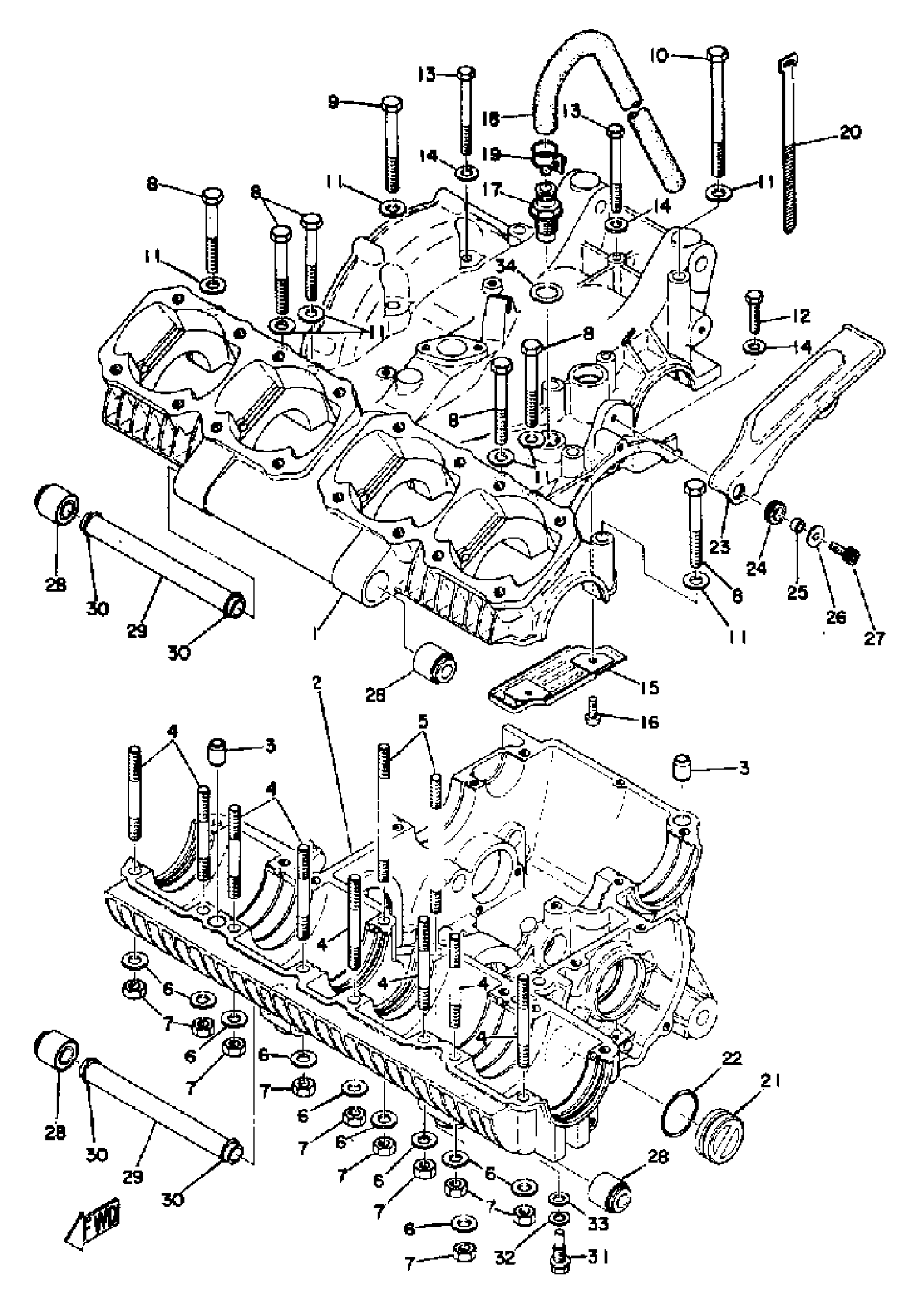

Yamaha TZ750A (TZ750) 1974 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY (1X2-15100-00)

409-15100-01-00

Unavailable

2

SPACER

90560-05001-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,STUD

90116-08371-00

Unavailable

5

BOLT, STUD (1A1)

90116-08232-00

$12.49

6

WASHER, PLAIN

92990-08200-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

BOLT (663)

97013-08060-00

$4.41

9

BOLT(6TC)

97027-08070-00

Unavailable

10

BOLT, HEXAGON

97027-08100-00

$5.60

11

WASHER, PLAIN

92990-08200-00

Unavailable

12

BOLT(3RV)

97014-06035-00

$2.75

13

BOLT(62J)

97013-06065-00

$2.82

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PLATE, BREATHER

(409-11165-01-00)

Unavailable

16

SCREW PAN HEAD

98580-06010-00

Unavailable

17

BREATHER

(409-15371-01-00)

Unavailable

18

NO LONGER AVAILABLE

90445-16202-00

Unavailable

19

CLAMP, HOSE

(90460-14003-00)

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

21

PLUG, SPEC''L SHAPE

(90338-35019-00)

Unavailable

22

O-RING (371)

93210-29196-00

Unavailable

23

COVER, CHAIN CASE

(409-15418-01-00)

Unavailable

24

GROMMET (141-82596-00)

90480-12096-00

Unavailable

26

WASHER, PLATE

90201-06M08-00

Unavailable

27

BOLT, SOCKET

91317-05010-00

Unavailable

28

DAMPER, ENG MOUNT 1

3XV-15316-10-00

Unavailable

29

SPACER

(90560-11134-00)

Unavailable

30

O-RING

(93210-12015-00)

Unavailable

31

BOLT

(90109-08259-00)

Unavailable

32

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

33

.. WASHER, PLATE

92990-08600-00

Unavailable

34

GASKET

90430-16048-00

Unavailable
