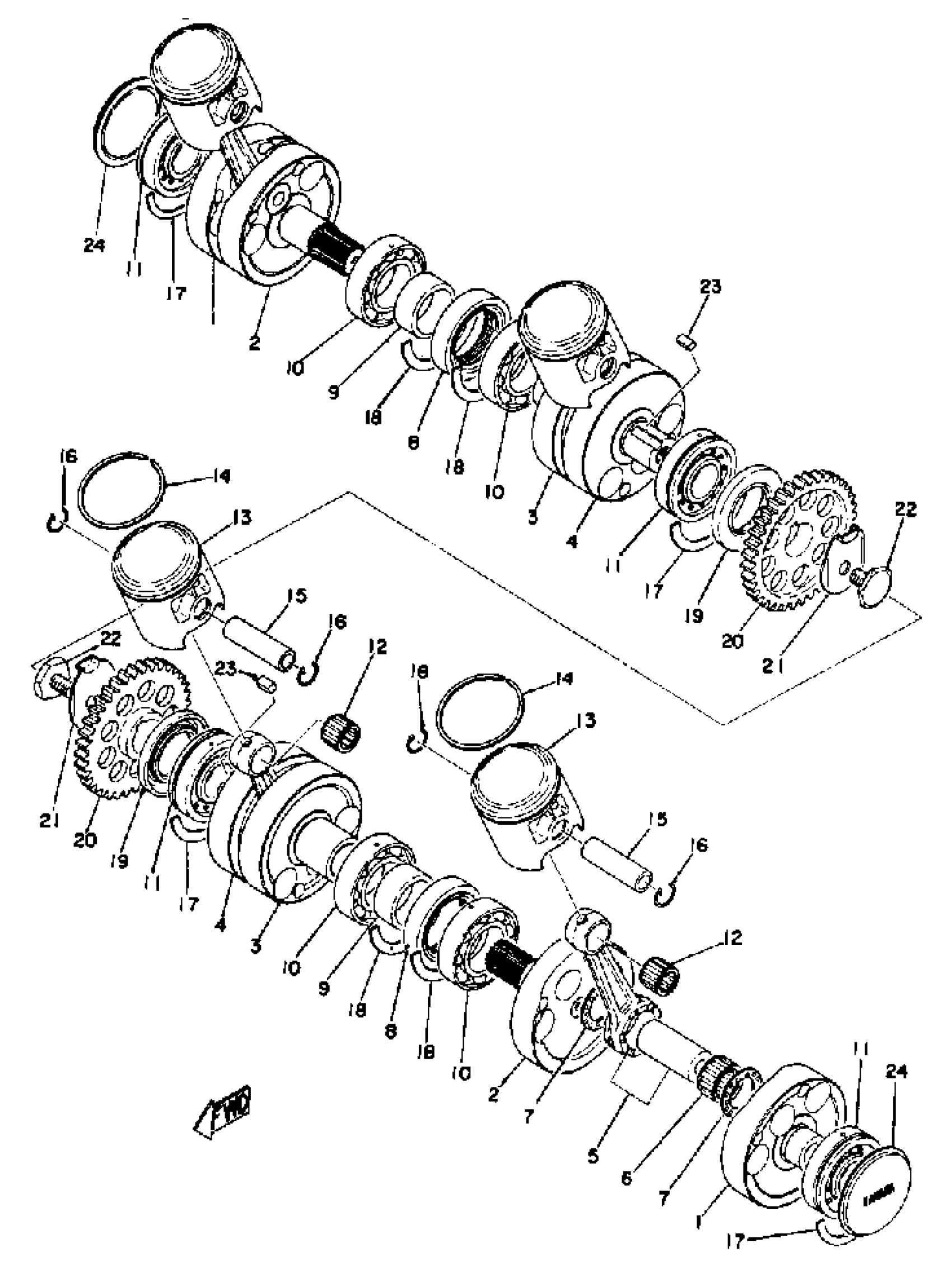

Yamaha TZ750A (TZ750) 1974 CRANK - PISTON Diagram

#

Description

Price

1

CRANKSHAFT ASSEMBLY

(409-11400-00-00)

Unavailable

1

CRANK 1

(409-11412-00-00)

Unavailable

2

CRANK 2

(409-11422-00-00)

Unavailable

3

CRANK 3

(1X2-11432-00-00)

Unavailable

4

CRANK 4

(409-11442-00-00)

Unavailable

5

CONNECTING ROD ASSEMBLY

3G2-11650-09-00

Unavailable

6

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

$46.99

7

WASHER (29L)

90209-22248-00

Unavailable

8

. SEAL, LABYRINTH 1

328-11515-00-00

Unavailable

9

COLLAR (328-11513-00)

90387-32204-00

Unavailable

10

. BEARING

93306-20614-00

Unavailable

11

. BEARING, CYLINDER #90

93390-00012-00

Unavailable

12

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

$26.99

13

PISTON STD

(409-11631-02-96)

Unavailable

13

PISTON STD

(409-11631-02-97)

Unavailable

14

RING,PISTON(STD)

328-11611-00-00

Unavailable

15

PIN, PISTON

4L0-11633-00-00

Unavailable

16

CIRCLIP (137-11634-00)

93450-17025-00

Unavailable

17

CIRCLIP 1

328-17424-00-00

Unavailable

18

CIRCLIP

278-17424-01-00

Unavailable

19

OIL SEAL, SWO-TYPE

93110-37003-00

Unavailable

20

GEAR, DRIVE

(409-11536-00-00)

Unavailable

21

WASHER, LOCK

(90215-10133-00)

Unavailable

22

BOLT

(90101-10375-00)

Unavailable

23

KEY, STRAIGHT

(90282-07007-00)

Unavailable

24

PLUG, SPEC''L SHAPE

90338-62020-00

Unavailable
