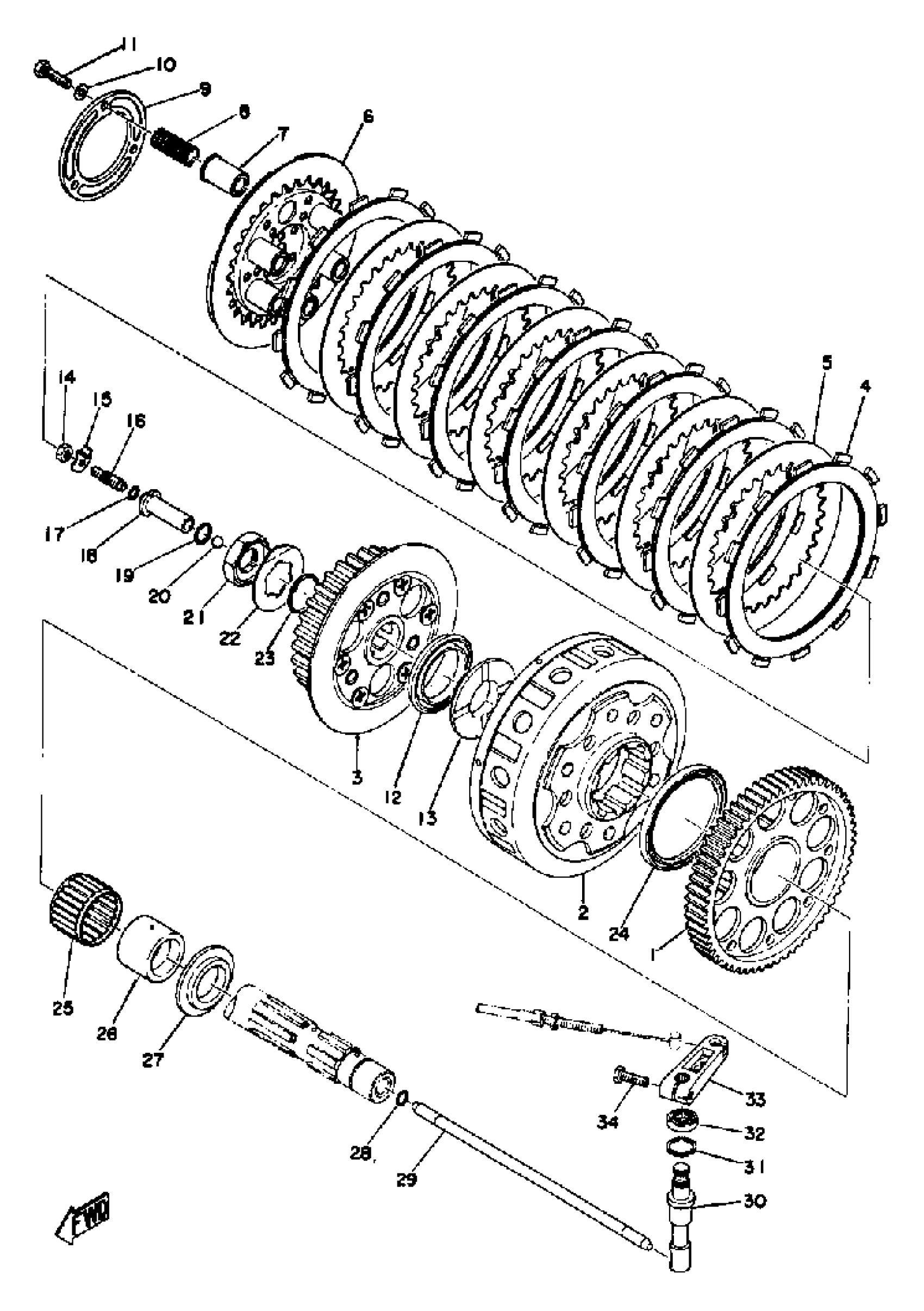

Yamaha TZ750A (TZ750) 1974 CLUTCH Diagram
#
1
GEAR, PRI DRIVEN
(409-16151-00-00)
Unavailable
1
BUFFER BOSS ASSEMBLY
(409-16160-01-00)
Unavailable
1
LEVER, PUSH 2
(409-16362-01-00)
Unavailable
2
BUFFER BOSS ASSEMBLY
(409-16160-01-00)
Unavailable
3
CLUTCH BOSS ASSEMBLY
(409-16370-00-00)
Unavailable
4
PLATE, FRICTION
(409-16321-00-00)
Unavailable
5
.. PLATE, CLUTCH 2
256-16325-00-00
Unavailable
6
PLATE, PRESSURE 1
(409-16351-91-00)
Unavailable
7
PLATE, PRESSURE 2
(409-16352-00-00)
Unavailable
9
PLATE, PRESSURE 2
(409-16352-00-00)
Unavailable
10
WASHER, SPRING
92995-06100-00
Unavailable
12
OIL SEAL, OS-TYPE
(93107-42007-00)
Unavailable
13
SPACER 2
(409-16182-00-00)
Unavailable
14
NUT, HEXAGON
95380-06600-00
Unavailable
15
WASHER, LOCK
(90215-06051-00)
Unavailable
16
SCREW, ADJUSTING
(409-16343-00-00)
Unavailable
17
O-RING (256)
93210-12152-00
Unavailable
18
.. PLATE, CLUTCH 2
256-16325-00-00
Unavailable
19
O-RING (256)
93210-12152-00
Unavailable
19
O-RING
93210-26240-00
Unavailable
20
BALL
93505-16006-00
Unavailable
21
NUT, LOCK (409)
90179-22063-00
Unavailable
22
WASHER, LOCK
90215-26024-00
Unavailable
23
O-RING
93210-26240-00
Unavailable
24
OIL SEAL(3MA)
93102-66439-00
Unavailable
25
BEARING, CYLINDER.#10
(93310-34072-00)
Unavailable
26
SPACER 1
(409-16181-00-00)
Unavailable
27
SPACER 1
(409-16181-00-00)
Unavailable
28
O-RING (11M)
93210-07540-00
Unavailable
29
SPACER 1
(409-16181-00-00)
Unavailable
30
ROD, PUSH 2
(409-16357-00-00)
Unavailable
31
CIRCLIP, R-TYPE
(93420-21038-00)
Unavailable
32
OIL SEAL, SD-TYPE
(93102-12123-00)
Unavailable
33
LEVER, PUSH 2
(409-16362-01-00)
Unavailable
34
BOLT, HEXAGON
97017-06020-00
Unavailable
