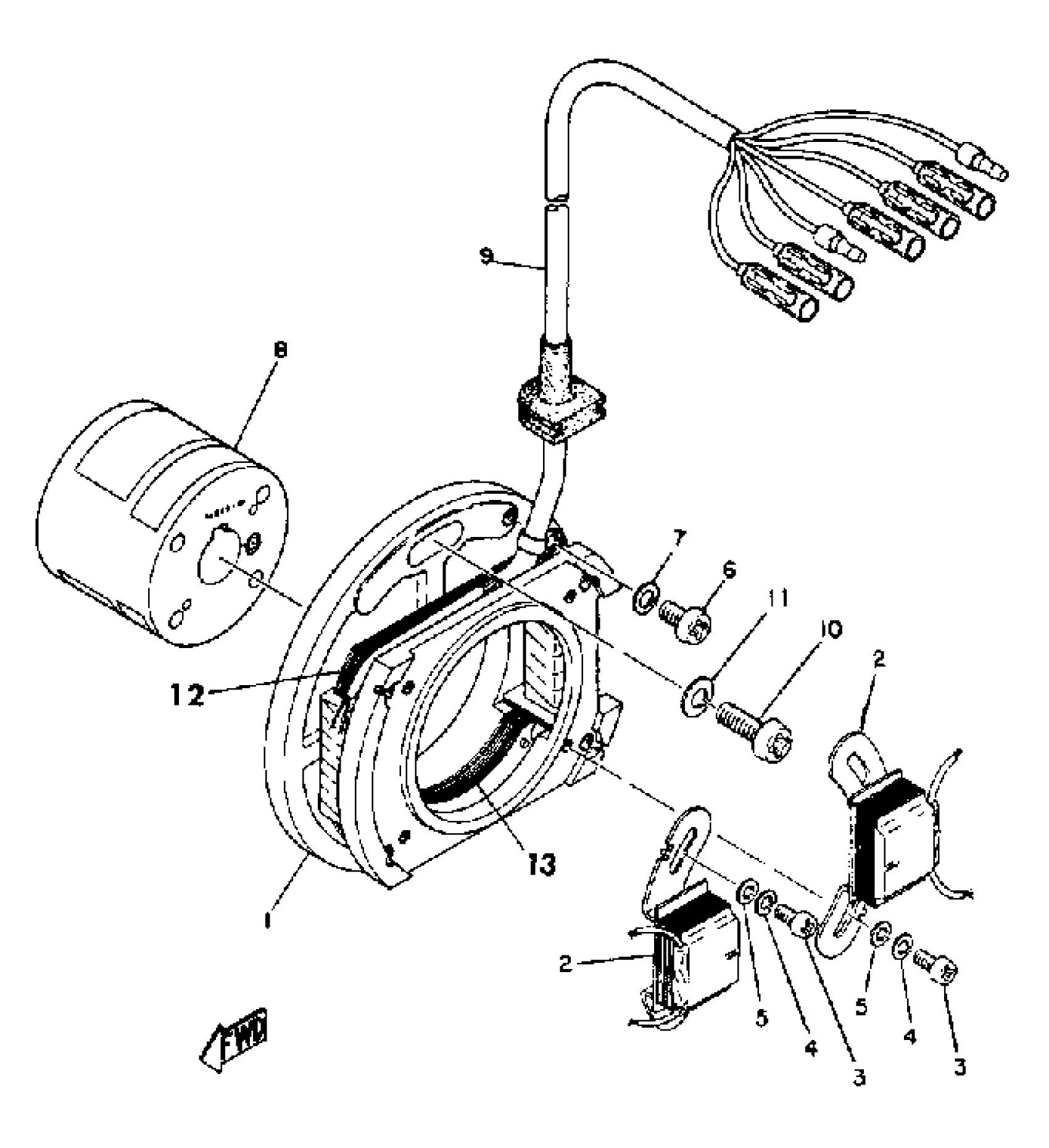

Yamaha TZ750A (TZ750) 1974 C - D - I - MAGNETO Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

(409-85500-10-00)

Unavailable

1

NO LONGER AVAILABLE

409-85510-10-00

Unavailable

2

. COIL PULSER

364-85543-10-00

Unavailable

3

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

4

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

5

. WASHER, PLAIN

92990-05200-00

Unavailable

6

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

8

ROTOR ASSEMBLY

(409-85550-10-00)

Unavailable

9

LEAD WIRE ASSEMBLY

(409-85515-10-00)

Unavailable

10

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

11

WASHER, SPRING

92995-06100-00

Unavailable

12

COIL, CHARGE 1

(400-85566-10-00)

Unavailable

13

COIL, CHARGE 2

(400-85567-10-00)

Unavailable
