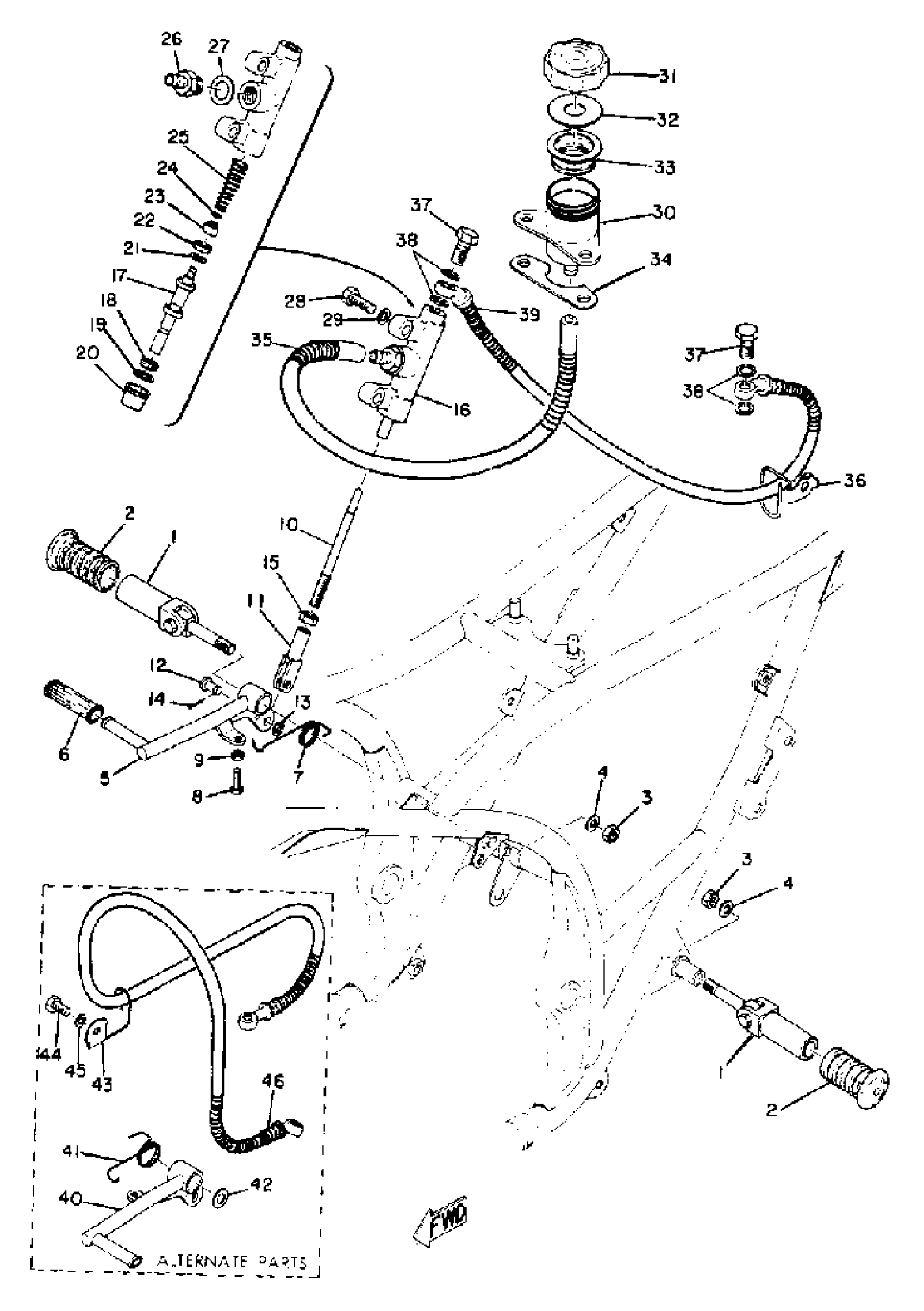

Yamaha TZ750A (TZ750) 1974 BRAKE PEDAL - MASTER CYLINDER Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

240-24700-00-00

Unavailable

1

. CYLINDER KIT, MASTER

409-W0042-50-00

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

240-24713-00-00

Unavailable

2

CUP KIT

(360-20000-20-00)

Unavailable

3

NO LONGER AVAILABLE

90179-10173-00

Unavailable

4

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

5

PEDAL, BRAKE

(409-27211-01-91)

Unavailable

6

COVER

240-18113-00-00

$18.49

7

SPRING, TORSION

(90508-23143-00)

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

NUT(650)

95380-06700-00

$8.49

10

ROD, BRAKE

(409-27231-00-00)

Unavailable

11

JOINT

(409-27222-00-00)

Unavailable

12

PIN, SPEC''L SHAPE

(90249-08085-00)

Unavailable

13

CIRCLIP(53L)

99001-06600-00

$1.01

14

PIN, COTTER

91490-20025-00

Unavailable

15

NUT, SPECIAL SHAPE

90179-08288-00

Unavailable

16

MSTR CYLINDER ASSEMBLY

(409-25850-50-00)

Unavailable

26

BOLT, UNION

(409-25899-50-00)

Unavailable

27

GASKET

(409-25898-50-00)

Unavailable

28

BOLT, HEXAGON

97017-08025-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

TANK, RESERVOIR

(409-25894-00-00)

Unavailable

31

. CAP, RESERVOIR

341-25852-00-00

Unavailable

32

BUSH, DIAPHRAGM (341-25855-00)

341-25855-30-00

Unavailable

33

. DIAPHRAGM RESERVOR

341-25854-00-00

Unavailable

34

DAMPER

(409-25897-00-00)

Unavailable

35

CLIP, SCISSOR

35A---

Unavailable

35

HOSE

(90445-15324-00)

Unavailable

36

HOLDER, BRKE HOSE 1

(409-25875-50-00)

Unavailable

37

BOLT, UNION(3GM)

90401-10159-00

Unavailable

38

WASHER, PLATE(481)

90201-10118-00

Unavailable

39

HOSE, BRAKE 1

(409-25872-50-00)

Unavailable

40

PEDAL, BRAKE

(409-27211-10-91)

Unavailable

41

SPRING, TORSION

(90508-23170-00)

Unavailable

42

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

43

HOLDER, BRKE HOSE 2

(409-25876-00-00)

Unavailable

44

BOLT(JA9)

90101-08691-00

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

46

HOSE, BRAKE 1

(409-25872-60-00)

Unavailable
