1976 Yamaha TZ350 (TZ350C) Transmission Diagram

← All diagrams

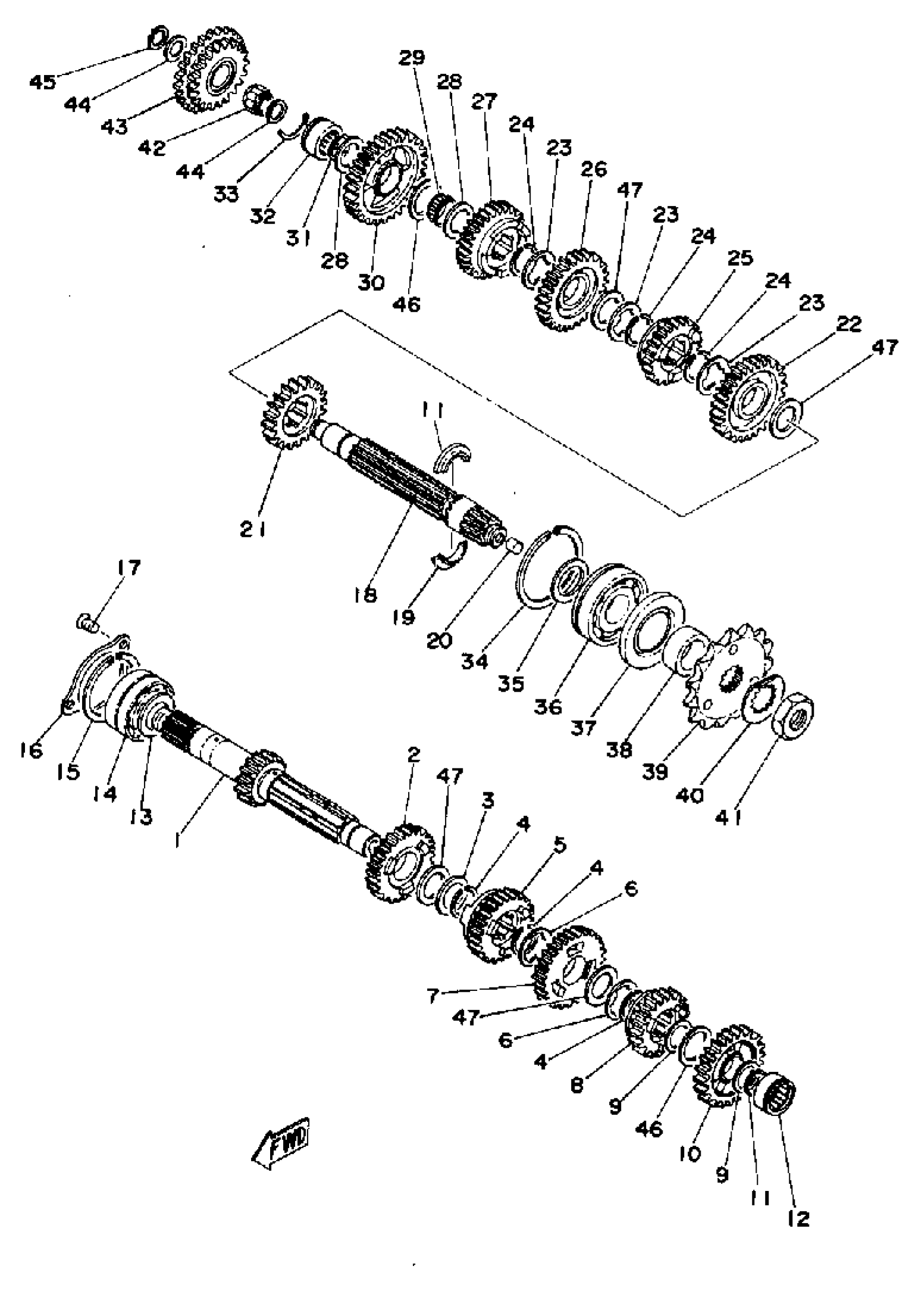

Find the part on the Transmission diagram for your 1976 Yamaha TZ350 (TZ350C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Yamaha TZ350 (TZ350C) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

328-17411-00-00

1
Out of stock

2

GEAR, 4TH PINION

(328-17141-00-00)

1
Out of stock

3

WASHER PLATE 152172260000

90201-25490-00

1
Out of stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

GEAR, 3RD PINION

328-17131-00-00

1
Out of stock

6

WASHER 328172160000

90209-21105-00

1
Out of stock

7

GEAR, 6TH PINION

(328-17161-00-00)

1
Out of stock

8

GEAR, 2ND PINION

(328-17121-00-00)

1
Out of stock

9

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

10

GEAR, 5TH PINION

(328-17151-00-00)

1
Out of stock

11

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

12

BRG,CYL-CAL ROLLER 36G NT

93311-22027-00

1
Out of stock

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

14

BRG,R-B 5205 52MM 190G KY

93305-20502-00

—
Out of stock

15

CIRCLIP (168)

93440-52009-00

—
Out of stock

16

PLATE, COVER

360-17471-00-00

1
Out of stock

17

SCREW, FLAT

98707-06014-00

—
Out of stock

18

AXLE, DRIVE

(328-17421-01-00)

1
Out of stock

19

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

20

PLUG, TAPER

(90336-09002-00)

1
Out of stock

21

GEAR, 5TH WHEEL

(328-17251-00-00)

1
Out of stock

22

GEAR, 2ND WHEEL

(328-17221-00-00)

1
Out of stock

23

WASHER 328172160000

90209-21105-00

1
Out of stock

24

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

25

GEAR, 6TH WHEEL

(328-17261-00-00)

1
Out of stock

26

GEAR, 3RD WHEEL

328-17231-00-00

1
Out of stock

27

GEAR, 4TH WHEEL

(328-17241-00-00)

1
Out of stock

28

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

29

BRG,CYL-CAL ROLLER 7G NT

93310-22057-00

—
Out of stock

30

GEAR, 1ST WHEEL

(328-17211-00-00)

1
Out of stock

31

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

32

BEARING, CYL.#11

93311-42045-00

1
Out of stock

33

CIR CLIP

278-17425-00-00

—
Out of stock

34

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

34

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

1
Out of stock

35

CIRCLIP

278-17424-01-00

—
Out of stock

36

BRG,R-B 6305 62MM 225G NK

93306-30504-00

—
Out of stock

37

OIL SEAL (35X62X6-371)

93102-35109-00

—
Out of stock

38

COLLAR(1AE)

90387-253M9-00

—

$34.15

In stock

39

SPROCKET, DRIVE

9383E-16105-00

1
Out of stock

39

SPROCKET, DRIVE

9383E-15083-00

1
Out of stock

39

SPROCKET, DRIVE

(9383E-17122-00)

1
Out of stock

40

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

41

NUT 152174630000

90179-18020-00

—
Out of stock

42

BEARING, CYLINDER.#10

(93310-21564-00)

1
Out of stock

43

IDLE GEAR ASSEMBLY

(278-15650-00-00)

1
Out of stock

44

WASHER, PLATE (4L0)

90201-154E8-00

—

$6.17

In stock

45

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

46

SHIM 1

156-17417-00-01

1
Out of stock

46

SHIM 1 (25.1-31-0.2)

156-17417-00-02

1
Out of stock

46

SHIM 1

156-17417-00-03

1
Out of stock

47

SHIM 1

328-17427-00-01

1
Out of stock

47

SHIM 1

328-17427-00-02

1
Out of stock

47

SHIM 1

328-17427-00-03

1
Out of stock
